Ateva Technologies

THScope ( Logiciel )

Management and Diagnostics for Industrial Networks

TH SCOPE is a software product for industrial network management and network diagnostics. Geared to plant operators and maintenance personnel, TH SCOPE is an all-in-one, easy-to-use solution for permanent monitoring and predictive maintenance, for acceptance testing and for troubleshooting. Combined with TH LINK components, the product supports PROFIBUS, PROFINET, EtherNet/IP and Modbus TCP protocols.
The PROFINET Commissioning Report functionality is now available in new THSCOPE Release. Download the new THSCOPE under ‘Downloads’ section.

Versatile Solution for a Wide Variety of Diagnostics Applications

  • Network commissioning, acceptance testing
  • Stationary operation for continuous monitoring
  • Fault localization and identification in case of failure

Comprehensive Representation and Analysis of Diagnostic Data

  • Data on network communication (e.g. load, error statistics)
  • Data from network configuration (e.g. device names, firmware versions, topology)
  • Diagnostic messages (network and device diagnostics)
  • Data collection also from standard Ethernet devices (e.g. PCs or camera systems)

Optimized for Maintenance Users

  • Easy and intuitive handling and operation
  • No expert knowledge of IT or networks required
  • Support of various network protocols (PROFIBUS, PROFINET, EtherNet/IP, Modbus TCP)

Flexible Integration into Existing Systems and Processes

  • Integration of network data into monitoring tools and supervisory control systems via SNMP or OPC
  • Export of all diagnostic data, support of further processing in applications such as Excel
  • Web-based access, local or remote
  • Network overview with network and device status plus diagnostic messages with troubleshooting recommendations
  • Analysis of device logs
  • Live list, statistics, inventory
  • GSDML file support, plaintext messages in diagnostic list
  • Topology and trend analysis
  • Automatic e-mail notification in case of fault
  • Reference comparison
  • Acceptance measurements and acceptance reports
  • Data export via Excel
Supported Protocols PROFIBUS (TH SCOPE V2.2),
PROFINET, EtherNet/IP, Modbus TCP (TH SCOPE V2.2 and TH SCOPE V3.0)
  • SNMP Agent
  • OPC Classic DA Server
System Requirements
  • Web browser with Adobe Flash Player 14 or higher
    (for TH SCOPE V2.2, not required for TH SCOPE V3.0)
  • Adobe Reader 8 or higher for reading the documentation and for printing the topology
Supported Operating Systems Windows 7, Windows 8, Windows 8.1,
Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2
Network Access Data collection through TH LINK (PROFIBUS, PROFINET, EtherNet/IP, Modbus TCP and Industrial Ethernet)
Demo Version Full TH SCOPE functionality can be used for free for 30 days after installation
Licensing Via software or hardware key
 Scope of Delivery
Software TH SCOPE (by download from Softing‘s website)
License Software or hardware key
Documentation Installation Manual, User Manual, Release Note
Order Numbers
ATV-LRA-JY-003024 TH SCOPE (software key)
ATV-LRL-JY-003025 TH SCOPE (hardware key)
Additional Products and Services
ATV-GDA-JY-003037 TH LINK Industrial Ethernet
ATV-LRA-JY-003028 TH LINK PC Industrial Ethernet

If your network is protected by a second firewall in addition to the Windows firewall, make sure that the following settings are made to allow TH SCOPE services to communicate properly.

  • Enabling of HTTP port 80 – inbound and outbound
  • Enabling of SNMP port 161 inbound or port 2367 (if port 161 is used by another SNMP agent).
  • Enabling of IP port 2364 UDP outbound
  • Enabling of UDP ports 2365 outbound and 2366 inbound


The following ports are used by TH SCOPE for internal communication only:

  • Port 22
  • Port 80
  • Port 1100
  • Ports 1123 – 1151
  • Port 1500
  • Port 1501
  • Ports 2363 – 2366
  • Ports 49152 – 49171

People interested in this product, can be interested in :




Administration et gestion de réseaux avec analyse de réseaux Profibus

Accéder aux réseaux PROFIBUS avec une application FDT, AMS d’Emerson et TH Scope de Softing

THLINK PROFIBUS  fournit un accès indépendant du controlleur, aux réseaux PROFIBUS, pour la gestion et la maintenance.  L’outil supporte à la fois : la gestion du réseaux mais aussi l’analyse du réseaux Profibus.. THLINK PROFIBUS est facile d’utilisation et s’intègre très facilement avec le réseau PROFIBUS existant.

Independent Access to PROFIBUS Network

  • Controller-independent
  • Independent of configuration tools
  • Access for plant asset management applications to configure field devices based on FDT/DTM and EDDL standards (acyclic master)

Designed for Installation without Interference with Plant Operation

  • Connection to PROFIBUS network also possible during operation of the plant
  • Easy integration into existing plants thanks to compact design
  • Browser access for administration and configuration purposes

Powerful Data Collection Capabilities Optimized for PROFIBUS

  • Passive listening to PROFIBUS DP protocol
  • Threshold monitoring for frame retries
  • Statistics for optimization of the network configuration
  • Easy detection of missing terminating resistors

Optimized for Use by Maintenance Engineers

  • Central and time-saving parameterization of PROFIBUS and HART field devices directly from the control room
  • Continuous monitoring and troubleshooting for PROFIBUS networks
  • Fault identification with intelligent troubleshooting assistance
  • Seamless integration with TH SCOPE diagnostics software
  • Network detection and data collection (PROFIBUS DP)
  • Acyclic master (PROFIBUS DP-V1)
  • Alarm notification in case of fault
  • Basic monitoring, configuration
  • Integrated web server
Supported Plant Asset Management Applications e.g.:

  • Endress+Hauser FieldCare
  • Emerson AMS Suite
  • Yokogawa Fieldmate
  • PACTware
PROFIBUS Transmission Rate
  • max. 12 MBit/s (AMS Device Manager, FDT)
  • max. 1.5 MBit/s (TH SCOPE)
Input Voltage 24 VDC (19.2 VDC … 28.8 VDC)
Current consumption max. 190 mA
Operating Temperature 0 °C … 50 °C
PROFIBUS interface RS 485
Ethernet Port RJ-45 (10Base-T/100Base-TX)
Mounting 35 mm DIN rail
Dimensions (H x W x D) 22.5 x 99 x 114.5 mm
Weight 120 g
Certificate CE

    Scope of Delivery

    Documentation Installation Manual, Release Notes (by download)

    Additional Products and Services

    LRA-JY-003024 TH SCOPE (software key)
    LRL-JY-003025 TH SCOPE (hardware key)
    LRA-NN-021980 DTM Library
    VAA-YY-023000 PACTware
    VAA-NM-023001 TACC


Pince pour mesure de courants de fuite


La pince PB-LSZ-CHB3 permet la mesure de courants de fuite; eg : fuite, Measures leakage currents, e.g. leakage and fault currents, and current pick-up of instruments without breaking the circuit. Measurements according to DIN VDE 0701/0702 and the German BetrSichV (BGV A3, VBG 4).

  • D’une fiabilité redoutable, cette pince détecte des courants de fuite très faitble, résultant de problèmes de champs ElectroMagnétique ( EMC )

    Fonctionnalités PB-LSZ-CHB3:

  • Mesure de courants de fuite
  • Mesure de courants différentiels
  • Mesure de résistance et tension
  • Fréquence de mesure pour Courant alternatif / Tension  40 Hz…1 kHz
  • Test de continuité accoustique
  • MIN/MAX et mesure relative
  • Sélection manuel de la plage de mesure
  • data hold intégré
  • Affichage bar graph additionnel
  • Ouverture de la pince : ouvrant jusqu’à : 30 mm
  • Extension automatique

Pince numérique pour la mesure des coutants de fuite :  2 batteries 1.5 V IEC LR6, housse de protection, cables de mesure (1 x rouge, 1 x noir) et manuel utilisateur.

Ref : ATV-DDA-ZZ-004010 ( anciennement :PB-LSZ-CHB3 )


BC-230-PB : Testeur Profibus PA : Pour les Zones ATEX et non-ATEX


Le testeur PROFIBUS PA ( BC-230-PB) est un outil pratique et indispensable pour les tests de réseaux PROFIBUS PA ( Zone ATEX et non ATEX )

Test du bus PA, facile et rapide

Le  moniteur de diagnostic est un outil polyvalent et indispensable pour la mesure des réseaux Profibus PA. C’est auss un produit ATEX, ce qui en fait un appareil utilisable en zone a risque. Pas de besoin de batterie ni de source électrique externe.

Application universelle pour ce testeur profibus PA ( BC-230-PB )

  • Test du bus physic
  • Verification de la stabilité entre les différents devices
  • Outil universel pour l’installation, la mise en service, la documentation, la maintenance préventive et le diagnostic

Très simple d’utilisation

  • Outstanding ease of use based on display and two function buttons ▪ Clear classification of test results as either OK or BAD
  • Ideal choice even for less experienced users

Test de bus totalement automatique

  • Automatically powered by fieldbus and start of segment testing without operator intervention after attachment to PROFIBUS PA network
  • Information in plain text, if measured data exceeds tolerance limits
  • Measurement of segment voltage as well as average noise and peak noise for three frequency ranges
  • Reliable detection of short circuits between individual signal wires and cable shield
  • Detection of all frame retransmissions and all devices added or dropped during bus operation at field device level
  • Determination of current and lowest signal levels of all devices
  • No PC or notebook needed for testing the bus
  • Internal storage of test data for later transfer to PC
  • Detailed test reports in Microsoft Excel or text format
put voltage: Fieldbus mode: 8 to 32 VDC, USB mode: 4.1 to 5.5 VDC
Max. input current: Fieldbus mode: 10 mA *, USB mode: 30 mA
Power dissipation: Fieldbus mode: max. 320 mW (at 32 VDC), USB mode: max. 165 mW (at 5.5 VDC)
Operating temperature: –20 to +50 °C **
Dimensions: 146 x 88 x 28 mm
Weight: 378 g
Case material: ABS
DC voltage measurement range: 8 to 32 VDC ± 0.5 VDC
Signal level measurement range: 0.12 to 2 Vpp ±10% ±0.025 Vpp
LF noise measurement range: 50 Hz to 4 kHz, 0 to 1000 mVpp ±15% ±25 mVpp ***
FF noise measurement range: 9 kHz to 40 kHz, 0 to 1000 mVpp ±10% ±25 mVpp ***
HF noise measurement range: 90 kHz to 350 kHz, 0 to 250 mVpp ±20% ±25 mVpp ***
Conformity CE, FCC
Hazardous area approvals FM USA and Canada:
—Class I Division 2 Groups A, B, C and D T4
—Class I Zone 2 Group IIC T4
—Class I Division 1 Groups A, B, C and D T4
—Class I Zone 0 and 1 Ex/AEx ia IIC T4
Data transfer to PC Via supplied PC software for Windows 2000, XP and VISTA, Windows 7 (32/64 bit) and USB interface version 1.1 or 2.0
*  In  fieldbus  mode  the BC-230-PB  is powered by the  fieldbus and draws approximately 9.4 mA of current from the segment (depending on bus voltage and ambient temperature).
**  Display update speed is impaired below –10°C.
*** Vpp = Volts peak-to-peak; excessive noise adjacent to the fieldbus frequency (FF) band will prevent the BC-230-PB from reading the fieldbus data and thus reduce functionality.
BC-230-PB Diagnostic Monitor for PROFIBUS PA

Scope of Delivery

Hardware Diagnostic Monitor for PROFIBUS PA (BC-230-PB), connection cables, carrying case
Software PC software (in English) on CD-ROM
Documentation Manual (in English), certificates (in English)

Additional Products and Services

PB-LSZ-CHB3 Digital fieldbus leakage current clamp for locating EMC problems, 40 Hz … 1,000 Hz, Min/Max, Data Hold, measuring cables, supplied in handy case

Pour toute demande, nous consulter

Ce produit fait partie de  la famille des “Process automation”. Afin de connaitre notre gamme complete de produits, vous pouvez télécharger notre brochure :  Process Automation.

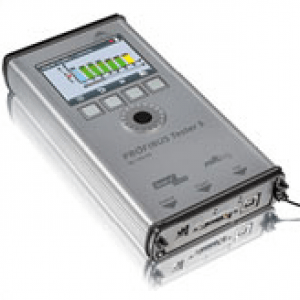

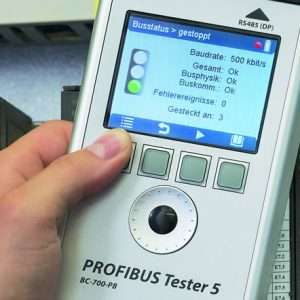

Testeur PROFIBUS : PB-T5 (BC-700-PB)

Testeur Profibus: SOFTING PB-T5 ( BC-700-PB ) : Pour Test rapide et facile;  bus physique, bus de communication et câblage de vos réseaux PROFIBUS


Le testeur PROFIBUS: ‘PROFIBUS Tester 5’ (BC-700-PB) est un outil de diagnostic et de dépannage puissant pour tester les câbles, mesurer les signaux et l’analyse de la communication de réseaux PROFIBUS. Il est alimenté par batterie et fournit un affichage graphique, ce qui permet des résultats rapides lorsque vous travaillez en mode autonome. En option, également le réseau PROFIBUS PA peut être analysé. En outre, le BC-700-PB soutient l’exportation des résultats des tests pour l’analyse avancée.

Le testeur profibus vous permet le test des câbles, bus physique et bus de communication “All-In-One”

  • Combinaison de testeur de signal, oscilloscope à mémoire, protocolanalyzer, simulateur de maître et la fonctionnalité de testeur de câble en un seul outil de diagnostic
  • Mode autonome, plus des diagnostics basés sur PC étendues
  • Adaptés pour l’installation, la configuration et la mise en service, la documentation, les tests d’acceptation, l’optimisation du réseau, la maintenance préventive, le dépannage ainsi que des tests de laboratoire

Très mobile, le testeur de bus permet des tests, même sans ordinateur

  • fonctionnement sur batterie sans avoir besoin d’alimentation supplémentaire
  • Affichage graphique fournissant facile à comprendre la présentation des résultats des tests
  • tests de réseau complets en mode autonome sans nécessiter un ordinateur portable

Caractéristiques de diagnostic améliorée grâce à complément logiciel PC-Based

  • De nombreuses fonctionnalités supplémentaires pour l’exécution, l’analyse et la gestion des tests de bus en mode PC (Tendance, Topologie Numériser, Master Simulator, Oscilloscope, analyseur Frame)
  • Test rapide et test contrôlé par l’utilisateur pour l’évaluation de l’état du réseau facile à la simple pression d’un bouton
  • Génération de rapports d’essais qui décrivent l’état actuel de l’installation PROFIBUS
  • Idéal pour les utilisateurs moins expérimentés, ainsi que pour les spécialistes de bus de terrain

Adaptateur de mesure en option pour MBP (Manchester Coded Bus Powered) Physique

  • Analyse spécifique du signal de support physique MBP (de feedingvoltage, type de signal, le signal de polarité, divergence bitrate)
  • Analyse complète du protocole directement au niveau du segment PROFIBUS PA
Diagnostics Functionality
Protocol and Frame Analysis PROFIBUS DP-V0 and DP-V1, automatic baud rate detection in the range of 9.6 kbit/s … 12 Mbit/s
Signal Analysis PROFIBUS DP-V0, DP-V1, FMS and MPI
… via EIA-485 Signal quality index 0 … 5,000, determined from signal wave form as well as signal/noise ratio and rise time; signal sampling with 8/16 samples per bit
… via MBP
(requires optional adapter)
Fieldbus feeding voltage: 0 V … 35 V at 0.1 V resolution, signal level: 100 mV … 1,200 mV at 10 mV resolution, signal polarity, bitrate divergence: ±1.2 % at 0.01 % resolution, signal sampling with 128 samples per bit
Oscilloscope Display
(Not Available for MBP)
Test range: ±5 V at 10 mV resolution (differential), 0 V … 15 V at 15 mV resolution (A or B to DGND);
sampling rate: up to 384 Msamples/s; sampled points: 2,400 (signal details), 8,192 (oscilloscope analysis)
Topology Scan
(Not Available for MBP)
Active, maximum distance: 230 m, accuracy: ±2 m
Cable Test
(Not Available for MBP)
Active, supported cable segment length: 5 m … 1,500 m, accuracy: 5 %
Operation Via graphical colour display, four function keys and scrollwheel including central push-button or via PC/notebook
Internal Memory Capacity 3 user-definable network directories (segment and test location) for storing quick tests, trend logs and cable test results
Trend logging: max. 99 hours
Trigger IN: L = 0 V .. 0.8 V; H = 2.4 V .. 24 V; pulse > 10 μs, active high
OUT: approximately 5 V, active low (connection to storage oscilloscope)
PC Operating Software PROFIBUS Diagnostics Suite, see separate datasheet for details
EIA-485 (PROFIBUS DP) PROFIBUS D-sub connector, 9 pins, power supply for external bus termination
MBP (PROFIBUS PA) Connector, 3 pins, for screw terminals at optinal measuring adapter, measuring cable set including 3 probes(adapter for MBP measurement is attached to D-sub connector)
USB V 2.0, high speed 480 Mbit/s, galvanically isolated
Dimensions (H x W x D) 35 mm x 220 mm x 110 mm
Power Supply Built-in three-cell lithium-ion battery supporting 11.1 VDC or external AC adapter 100 VAC … 240 VAC, 50/60Hz (galvanically isolated)
The rechargeable battery has a runtime of up to 5 hours (runtime depends on the performed test functionality and rate of wear of the rechargeable battery)
Battery is charged via external AC adapter
Operating/Storage Temperature Operating temperature: 0 °C … 50 °C, storage temperature: -20 °C … 70 °C
Relative Humidity Air humidity: 10 % … 90 % without condensation
Weight Test tool, no cable: approximately 0.75 kg; complete carrying case: approximately 4.2 kg
Conformity CE, FCC, VCCI
ATV-DDA-NN-006014 PROFIBUS Tester 5 (BC-700-PB)
ATV-DDL-NN-006012 PROFIBUS Tester 5 (BC-700-PB) with Oscilloscope Option
ATV-LRA-NN-006011 Oscilloscope Option (Oscilloscope view in stand-alone mode)
ATV-DDL-NL-006010 PROFIBUS PA option for BC-700-PB (BC-700-PB serial number required for order placement)

Scope of Delivery

Hardware PROFIBUS Tester 5 (BC-700-PB), power supply unit 100 VAC … 240 VAC, 50/60 Hz with connecting cables for Europe and USA, adaptor cables, carrying case
Measuring adapter BC-700-H1, measuring cable set (for PROFIBUS PA option)
Software PROFIBUS Diagnostics Suite (PC software for Windows on CD-ROM)
BC-700-PB upgrade license (on CD-ROM, for PROFIBUS PA option)
Documentation Device Manual, “Getting Started“ Manual

Additional Products and Services

ATV-ACA-NN-006031 EIA-485 D-Sub adapter cable for testing operational networks with reduced influence on segment operation
(view product)
Adapteur D-Sub vers M12, fourni avec un T et bus M12 de terminaison, pour profibus DP
(view product)
Pince pour mesure des courants de fuite. Localise les problèmes électromagnétique ( EMC ) . 40 ..1000 Hz, MIN/MAX, Data Hold, Cable pour mesure, fourni avec son étui.
(view product)
D-Sub Service Interface with Active Bus Termination and 90° Angled Connector for PROFIBUS DP
(view product)
M12 Service Interface for PROFIBUS DP, Comprising M12 T-Piece, End Cap and M12 Connection Cable (1 m)

PROFIBUS Diagnostics Suite

Universal Software for All Diagnostic Tools of the bus check Family

PC software for performing, evaluating and managing tests of bus physics, bus communication and cabling in PROFIBUS networks. The application is extremely easy to use, with a quick test available at a click of the mouse.

One Software for All Diagnostic Products

  • Comprehensive analysis of PROFIBUS DP and PROFIBUS PA networks
  • Diagnostic functionality available depending on connected test tool
  • License-free use on any number of PCs – no activation required

Suitable for the Fieldbus Novice

  • Bus test initiated with a single mouse click
  • Clear, easy-to-read display of test results
  • Separate expert mode providing in-depth diagnostic features for network specialists

Functionality for All Diagnostic Tasks

  • Continuous display of current bus status in status bar
  • Overall bus health indicated by traffic light symbols for bus physics and bus communication
  • Detail views with additional diagnostic information, also for advanced analyses by experts
  • Testing of bus and connected devices via integrated master simulator without configuration or parameterization
  • Generation of test reports for acceptance testing of PROFIBUS installations

Technical Data

Operating Systems:
PC Hardware*
RAM 500 MB for Windows XP
1 GB for Windows 7, Windows 8
Processor 1 GHz for recording at baud rates up to 1.5 Mbit/s
2 GHz for recording at baud rates over 1.5 Mbit/s
Screen Resolution 1024 x 768 pixels (XGA)
USB Interface 2.0
Supported Operating Systems Windows XP, Windows 7, Windows 8, Windows 10

* The above minimum requirements are only general guidelines. Requirements may vary depending on the PC/notebook used.

Fieldbus Shield Digital Leakage Current Clamp – Locating EMC Problems

Measures leakage currents, e.g. leakage and fault currents, and current pick-up of instruments without breaking the circuit. Measurements according to DIN VDE 0701/0702 and the German BetrSichV (BGV A3, VBG 4).

  • Reliably Detects Even Very Small Improper Shield Currents Resulting from EMC Problems.


  • Leakage current measurement
  • Differential current measurement
  • Voltage and resistance measurement
  • Frequency range for AC current / voltage 40 Hz…1 kHz
  • Acoustical continuity test
  • MIN/MAX and relative value measurement
  • Manual selection of the measurement range
  • Integrated data hold
  • Additional analog bar graph display
  • Clamp opening 30 mm
  • Auto power off

Included in Package

Digital leakage current clamp, 2 batteries 1.5 V IEC LR6, carrying case, measuring cables (1 x red, 1 x black) and user manual.

Order Number


M12 Service Interface for PROFIBUS DP

Application example:

Interface for Providing an Access Point to Test PROFIBUS Networks With M12 Connectors

Provides an access point for testing PROFIBUS networks with M12 connectors.

  • Allows Testing the Bus During Operation


The service interface is inserted between two bus stations. When not in use, the service output of the T piece is closed with an end cap. At baud rates of 1.5 Mbit/s or higher, use the supplied cable to ensure that the required minimum distance between bus stations is maintained.

Included in Package

T piece (protection class IP68) with end cap and a 1 m DP cable fitted with a male/female M12 connector on each end.

Order Number




M12 adaptor PROFIBUS Tester  PB-T5

Application example:

Interface for Providing an Access Point to Test PROFIBUS Networks With M12 Connectors

M12 Adaptor for PB-T5

  • Allows Testing the Bus During Operation


The service interface is inserted between two bus stations. When not in use, the service output of the T piece is closed with an end cap. At baud rates of 1.5 Mbit/s or higher, use the supplied cable to ensure that the required minimum distance between bus stations is maintained.

Included in Package

M12 Adaptor for PB-T5

Order Number



Les clients intéressé par ce produit peuvent  aussi etre intéressé par :
