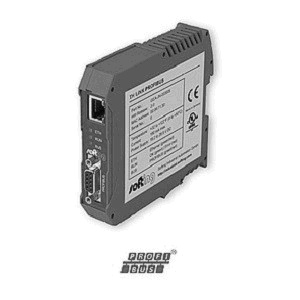

TH Link PROFIBUS

csm_TH_LINK_PB_Anwendung_EN_rgb_1200px_a285e5a837

Administration et gestion de réseaux avec analyse de réseaux Profibus

Accéder aux réseaux PROFIBUS avec une application FDT, AMS d’Emerson et TH Scope de Softing

THLINK PROFIBUS  fournit un accès indépendant du controlleur, aux réseaux PROFIBUS, pour la gestion et la maintenance.  L’outil supporte à la fois : la gestion du réseaux mais aussi l’analyse du réseaux Profibus.. THLINK PROFIBUS est facile d’utilisation et s’intègre très facilement avec le réseau PROFIBUS existant.

Independent Access to PROFIBUS Network

  • Controller-independent
  • Independent of configuration tools
  • Access for plant asset management applications to configure field devices based on FDT/DTM and EDDL standards (acyclic master)

Designed for Installation without Interference with Plant Operation

  • Connection to PROFIBUS network also possible during operation of the plant
  • Easy integration into existing plants thanks to compact design
  • Browser access for administration and configuration purposes

Powerful Data Collection Capabilities Optimized for PROFIBUS

  • Passive listening to PROFIBUS DP protocol
  • Threshold monitoring for frame retries
  • Statistics for optimization of the network configuration
  • Easy detection of missing terminating resistors

Optimized for Use by Maintenance Engineers

  • Central and time-saving parameterization of PROFIBUS and HART field devices directly from the control room
  • Continuous monitoring and troubleshooting for PROFIBUS networks
  • Fault identification with intelligent troubleshooting assistance
  • Seamless integration with TH SCOPE diagnostics software
Functionality
  • Network detection and data collection (PROFIBUS DP)
  • Acyclic master (PROFIBUS DP-V1)
  • Alarm notification in case of fault
  • Basic monitoring, configuration
  • Integrated web server
Supported Plant Asset Management Applicationse.g.:

  • Endress+Hauser FieldCare
  • Emerson AMS Suite
  • Yokogawa Fieldmate
  • PACTware
PROFIBUS Transmission Rate
  • max. 12 MBit/s (AMS Device Manager, FDT)
  • max. 1.5 MBit/s (TH SCOPE)
Input Voltage24 VDC (19.2 VDC … 28.8 VDC)
Current consumptionmax. 190 mA
Operating Temperature0 °C … 50 °C
PROFIBUS interfaceRS 485
Ethernet PortRJ-45 (10Base-T/100Base-TX)
Mounting35 mm DIN rail
Dimensions (H x W x D)22.5 x 99 x 114.5 mm
Weight120 g
CertificateCE
  • GEA-JN-003006TH LINK PROFIBUS

    Scope of Delivery

    HardwareTH LINK PROFIBUS
    DocumentationInstallation Manual, Release Notes (by download)

    Additional Products and Services

    LRA-JY-003024TH SCOPE (software key)
    LRL-JY-003025TH SCOPE (hardware key)
    LRA-NN-021980DTM Library
    VAA-YY-023000PACTware
    VAA-NM-023001TACC
