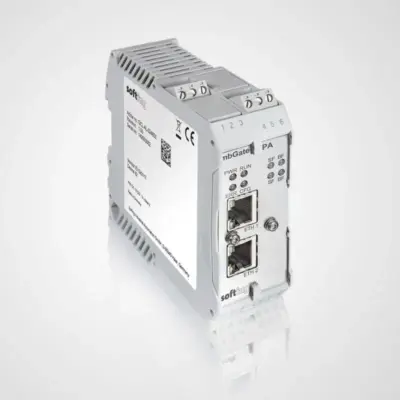

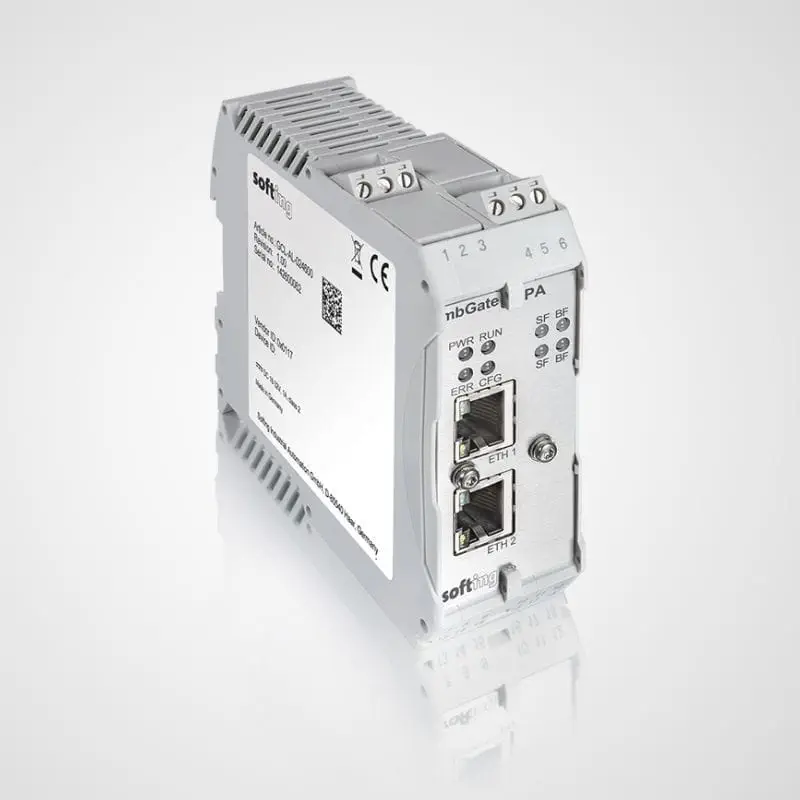

Fieldbus Foundation Gateway : FG-200

FG-200

Fieldbus Foundation Gateway :

FG-200The FG-200 HSE ( High Speed Ethernet ) /FF (  Foundation fieldbus )  Modbus Gateway : for the integration of control system on Modbus TCP

Quick and easy commissioning of the Softing gateway: FG-200FF

  • Optional support for the STHAL Carrier 9419 Bus and Fieldbus 9412 Power Supply (wiring reduced to a minimum)
  • Import Modbus data to a web server reducing mapping efforts

Optimized Management: Softing: FG-200FF

  • “Visitor” mode to avoid any interference with the network
  • Possibility of system management using different software (e.g. Emerson’s AMS) and Field Device Tool (FDT) frame applications (e.g. SMART VISION, FieldMate, Field Device Manager, FieldCare, or PACTware)
  • Redundancy capacity for Softing Gateway: FG-200FF
  • Possible redundancy link (D-3 according to FF-593)
  • Automatic mirroring with data configuration
  • Very fast redundancy

All necessary tools included

  • “FF Configuration Tool” for configuring devices and cyclical communication
  • PACTware for device configuration and basic management.

I am raw html block.
Click edit button to change this html

HardwareProcessor
Status LEDs (Gateway)

Status LEDs (Fieldbus)
Altera Cyclone V SoC with dual-core ARM Cortex-A9
PWR (power supply), RUN (operation), ERR (error), RDL (redundancy link)
FF H1 activity per link
Interfaces and ConnectorsEthernet


FOUNDATION fieldbus H1
2 * IEEE 802.3 100BASE-TX / 10BASE-T (only ETH1 supported)
Connectors: RJ45
4 FF H1 links, compliant to type 114 of FF physical layer profile
(each link capable to operate independently as Link Master and/or Time Master)
Transfer rate: 31.25 Kbit/s
Fieldbus voltage range: 9 VDC ... 32 VDC, preferred voltage: 24 VDC
Current consumption: 10 mA / link
Connectors: 3-position screw connection, galvanically isolated
Physical PropertiesDimensions (H x W x D)
Weight
Power Supply






Operating / Storage Temperature
Relative Humidity
Cooling
Coating
Mounting
Protection Class
100 mm x 35 mm x 105 mm
Approx. 0.25 kg
18 VDC ... 32 VDC; SELV/PELV power supply mandatory
Typical input current: 200 mA, maximum input current: 1 A (allowing for in-rush current at switch-on)
No power supply to FF H1 links through FG-200 HSE/FF Modbus
-40 °C .. +70 °C / -40 °C .. +85 °C
(see detailed mounting description in user manual)
10 % ... 95 %, non-condensing
Convection, no fan
Conformal coating based on ANSI / ISA-S71.04 G3
DIN rail 35 mm
IP20
SoftwareProtocols


Redundancy
FOUNDATION fieldbus H1
FOUNDATION fieldbus HSE
Modbus TCP
Device redundancy compliant to type D-3 according to specification FF-593
Conformity / CertificationsCE

Electromagnetic Compatibility (EMC)


Vibration / Shock

Hazardous Location Certifications


Safety Requirements
EN61000-6-2, EN61000-6-4, EN55022 Limit Class A, EN55011
FCC CFR45, Part 15 Section 15.107 and 15.109 (Class A),
VCCI Class A Information Technology Equipment 2002
DIN EN 60068-2-6 Vibration / DIN EN 60068-2-27 Shock
cULus: Class 1, Division 2, Groups A, B, C, D (in preperation)
IECEx: Ex nA [ic] IIC T4 Gc
ATEX: II 3G nA [ic] IIC T4 Gc
IEC/EN/UL 61010-1
IEC/EN/UL 61010-2-201 (with CB scheme)

Description

HardwareFG-200 HSE/FF Modbus
LogicielOutil de configuration FF, FDT CommDTM, PACTware sur CD-ROM
DocumentationQuick Startup Guide, User Manual sur CD-ROM

Références

GCL-EK-024100FG-200 HSE/FF Modbus  (Foundation fieldbus / Modbus TCP )
GCL-EK-024101FG-200 HSE/FF Modbus, functionalité, conception identique pour une utilisation avec R. STAHL bus-Carrier Series 9419 et Alimentation Fieldbus série 9412

Modbus HSE <> Fieldbus Foundation Gateway, 4 segments FF

HS Code 85176200

All our videos on the FG-200 available on our cloud
