PBPro USB

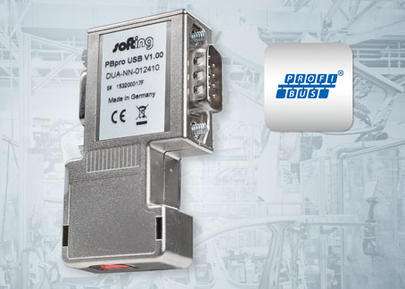

PBPro-USB : Interface PROFIBUS Universel avec USB “High Speed”
Interface PROFIBUS USB performante pour une grande variété de taches : de la configuration réseaux à la paramétrisation des esclaves, afin de permettre l’acquisition des données ( pour la production et la maintenance )
In stock (can be backordered)
LoginDescription
Format de poche pour une utilisation très mobile
- Interface PROFIBUS de taille “Matchbox”
- Toujours en main, il se glisse dans un un sac, pour intervention rapide
- USB connector avec taux de maintien élevé, assure une connection USB fiable
Large domaine d’applications
- Paramétrisation des “devices” via FDT/DTM
- Intérgation avec de nombreux systemes de paramétrisation et systèmes de gestion
- connection PROFIBUS pour système PC de mesure ou de monitoring
- connection PROFIBUS facile et rapide pour applications telles que : SCADA ou MES
Installation facile et rapide
- Simple connection via cable USB
- Alimentation par cable USB. Pas d’alimentation externe nécessaire.
- Highly integrated hardware encased in a PROFIBUS connector supporting direct attachment to the PROFIBUS segment, thus avoiding interferences caused by reflections
- Installation driver et API identique pour toutes les interfaces PROFIBUS Softing.
- Supporte de nombreux “operating systems” de chez Microsoft, incluant Windows 10
Integration Efficace
- Communication DTM PROFIdtm PROFIBUS, supportant la paramétrisation des devices PROFIBUS grâce aux outils FDT
- Commented sample programs for easy use of the PROFIBUS application programming interface (API) in customer applications
- Intégration facile et rapide des applications “OPC Client”, via PROFIBUS “OPC Server”
- connection avec Emerson’s AMS pour l’accès aux devices HART, via un réseaux PROFIBUS , utilisant le logiciel TACC
| PROFIBUS Protocol | • PROFIBUS DP-V0 Master • PROFIBUS DP-V1 Master: acyclic C2 Services |
| Fieldbus Connection | 9-pin D-Sub connector |
| Transfer Rates | 9.6; 19.2; 45.45; 93.75; 187.5; 500; 1500; 3000; 6000; 12000 kbps |
| PC Interface | USB 2.0, High Speed (480 Mbps) |
| Status LEDs | Multicolored LED indicators for PROFIBUS and USB |
| Operating Temperature | 0 ºC .. +60 ºC |
| Storage Temperature | -20 ºC .. +70 ºC |
| Relative Humidity | < 90%, non-condensing |
| Housing | Metalized plastic |
| Dimensions | 64 mm x 40 mm x 17 mm |
| Power Supply | Supply voltage: 5 V via USB Current consumption: typically 350 mA (USB) |
| Drivers available for | Windows XP, Windows 7, Windows 8, Windows 10 |
| Conformity | FCC VCCI |
Documents
Datasheet: PROFIBUS PBPRo USB
Technical specifications and features of the PBPRo USB interface.
PROFIBUS PROFIdtm V2.11 — FDT Group Certificate
Official FDT Group certification document.
PBPRo USB — Cloud Access
Access to drivers, software, user manual and documentation via our secure cloud.
Drivers & Software
PROFIBUS CommDTM PROFIdtm 2.20, PROFIBUS drivers V5.46.16, DP Master Configuration Tool V2.02.98, GSD files.
Documentation
PROFIusb with PACTware guide, universal PROFIBUS driver manual and programming samples.
Other
Additional resources and archived versions.
DUL-NN-012410 |
PBpro USB |
Scope of Delivery
| Hardware | PBpro USB hardware, USB cable |
| Software | Drivers, Sample programs on CD-ROM |
| Documentation | On CD-ROM |
Additional Products and Services
| OPC-PB | PROFIBUS OPC Server for DP-V0/DP-V1 |
Formation PROFIBUS disponible sur demande
