Ateva Technologies

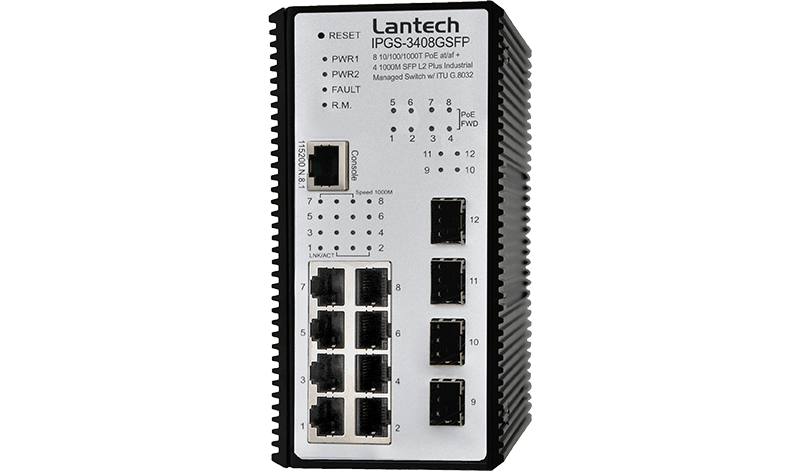

IPGS-3408GSFP

8 10/100/1000T PoE at + 4 1000M SFP L2+ Industrial Managed Switch w/ ITU G.8032

SKU: IPGS-3408GSFP Categories: , Tags: , , ,

Description

8 10/100/1000T PoE at + 4 1000M SFP L2+ Industrial Managed Switch w/ ITU G.8032

IPES-3408GSFP-E

PoE Managed switch : 8* 10/100/1000T PoE at + 4 1000M SFP L2+ Industrial Managed Switch w/ ITU G.8032

  • Support IEEE802.3at/af up to 30W per port
  • PoE management incl. Detection and Scheduling
  • Enhanced G.8032 ring protection < 20ms for single ring. Supports auto mode, enhanced mode, train mode and basic mode; Enhanced G.8032 ring covers multicast packets; MSTP 16MSTI /RSTP; support MRP ring
  • Miss-wiring avoidance & Node failure protection
  • User friendly UI, including auto topology drawing and DDM threshold monitoring with dB values***; Complete CLI
  • Support LACP link aggregation, IGMP v3/router port, MLD snooping, DHCP server & DHCP Option82; DHCP Snooping, Port based DHCP distribution, Mac based DHCP server, QoS by VLAN, SSH v2/SSL, HTTPS, INGRESS/EGRESS ACL L2/L3,TACACS+**, QinQ
  • Protocol based VLAN; IPv4 Subnet based VLAN
  • Environmental Monitoring for temp., voltage & current**

Lantech IPGS-3408GSFP is a high performance L2+ (Gigabit uplink) switch with 8 10/100/1000T + 4 1000M SFP w/8 PoE 802.3af/at ports which provides L2 wire speed and advanced security function for network aggregation deployment. It delivers ITU G.8032 enhanced ring recovery less than 20ms in single ring while also supports train ring, enhanced mode , multiple VLAN mode with easy configuration. The comprehensive QoS, QoS by VLAN, advanced security including INGRESS/EGRESS ACL L2/L3, TACACS+**, SSH v2/SSL, Mac based DHCP server, DHCP Option 82, DHCP server, IGMPv1/v2/v3/router port, QinQ are supported and also required in large network. It also supports Cisco Discovery Protocol (CDP) for Ciscoworks to detect the switch info and show on L2 map topology.



Up to 8 PoE at/af ports w/advanced PoE management
Compliant with 802.3af/at standard, the Lantech IPGS-3408GSFP is able to feed each PoE port up to 30 Watts@54 VDC providing the connected PD devices. Lantech IPGS-3408GSFP supports advanced PoE management including PoE detection and scheduling. PoE detection can detect if the connected PD hangs then restart the PD; PoE scheduling is to allow pre-set power feeding schedule upon routine time table. Each PoE ports can be Enabled/disabled, get the voltage, current, Watt, and temperature info displayed on WebUI.



Miss-wiring avoidance, Loop protection, Node failure protection
The IPGS-3408GSFP also embedded several features for stronger and reliable network protection in an easy and intuitive way. When the pre-set ring configuration failed or looped by miss-wiring, Lantech IPGS-3408GSFP is able to alert with the LED indicator and disable ring automatically. Node failure protection ensures the switches in a ring to survive after power breakout is back. The status can be shown in NMS when each switch is back. This feature prevents the broken ring and keep ring alive without any re-configuration needed. Loop protection is also available to prevent the generation of broadcast storm when a dumb switch is inserted in a closed loop connection.



DHCP option 82 & Port based, Mac based DHCP, Option66, DHCP Snooping, IPv6 DHCP server
DHCP server can assign dedicated IP address by MAC or by port (Port based for single switch) , it also can assign IP address by port for multiple switches with single DHCP option82 server. DHCP Snooping is supported. For the ending device which need to download file from TFTP server, DHCP Option66 server can offer IP address of TFTP server to DHCP client. Basic IPv6 DHCP service can be supported.



User friendly GUI, Auto topology drawing
The user friendly UI, innovative auto topology drawing and topology demo makes IPGS-3408GSFP much easier to get hands-on. The complete CLI enables professional engineer to configure setting by command line.



Enhanced G.8032 ring, 16 MSTI MSTP; MRP ring
Lantech IPGS-3408GSFP features enhanced G.8032 ring which can be self-healed in less than 20ms for single ring topology protection covering Multicast packets. It also supports various ring topologies that covers double ring, multi-chain (under enhanced ring), train ring, basic ring, multiple-VLAN ring and auto-ring by easy setup than others. The innovative auto-Ring configurator (auto mode) can calculate owner and neighbor in one step. It supports MSTP that allows RSTP over VLAN for redundant links with 16 MSTI.



MRP (Media Redundancy Protocol) can be supported for industrial automation networks.



Editable configuration file
The configuration file of Lantech IPGS-3408GSFP can be exported and edited with word processor for the other switches configuration with ease. The factory reset button can restore the setting back to factory default and built-in watchdog design can automatically reboot the switch when CPU is found dead.



QoS by VLAN for legacy device
QoS by VLAN can allow switch to tag QoS by VLAN regardless the devices acknowledge QoS or not in which greatly enhance the bandwidth management in a network.



QinQ, QoS and GVRP supported
It supports the QinQ, QoS, GVRP for large VLAN segmentation.



802.1X security by MAC address
MAC-based port authentication is an alternative approach to 802.1x for authenticating hosts connected to a port. By authenticating based on the host’s source MAC address, the host is not required to run a user for the 802.1x protocol. The RADIUS server that performs the authentication will inform the switch if this MAC can be registered in the MAC address table of switch.



IGMPv3,GMRP, router port, MLD Snooping, static multicast forwarding and multicast Ring protection
The unique multicast protection under enhanced G.8032 ring can offer immediate self-recovery instead of waiting for IGMP table timeout. It also supports IGMPv3, GMRP, router port, MLD snooping and static multicast forwarding binding by ports for video surveillance application.



Event log & message; 2 DI + 2DO
In case of event, the IPGS-3408GSFP is able to send an email to pre-defined addresses as well as SNMP Traps out immediately. It provides 2DI and 2DO when disconnection of the specific port was detected; DO will activate the signal LED to alarm. DI can integrate the sensors for events and DO will trigger the alarm while sending alert information to IP network with email and traps.



Optional environmental monitoring for switch inside information (-M model)
The optional environmental monitoring can detect switch overall temperature, voltage, total PoE load and current where can send the SNMP traps, email when abnormal.



Wide range dual DC powered input with galvanic isolation; Relay contact alarm, High ESD protection
The Lantech IPGS-3408GSFP is designed with dual power supply at 24/48VDC or single power supply at 90~305VAC/120~430VDC. Featured with relay contact alarm function, the IPGS-3408GSFP is able to connect with alarm system in case of power failure. The IPGS-3408GSFP also provides ±2000V EFT/SURGE and ±4000 VDC (Contact) / ±8000 VDC (Air) Ethernet ESD protection, which can reduce unstable situation caused by power line and Ethernet.



Industrial hardened design for extended temperature operation
Lantech IPGS-3408GSFP features high reliability and robustness coping with extensive EMI/RFI phenomenon, environmental vibration and shocks usually found in factory, substation, steel automation, aviation, mining and process control. It is the best solution for Automation, transportation, surveillance, Wireless backhaul, Semi-conductor factory and assembly lines.



The -E model can be used in extreme environments with an operating temperature range of -40°C to 75°C.

FEATURES

  • 8 10/100/1000T + 4 1000M SFP w/8 PoE 802.3af/at ports (Total 12 Ports Switch)
  • Embedded 8 PoE ports IEEE802.3af/at function to feed power up to 30W@54V; 15W @ 48V per port for active operation
  • PoE voltage boost from 12V to 54V (12V model)
  • PoE management including PoE detection and scheduling for PD (power devices)
  • Back-plane (Switching Fabric): 24Gbps, non-blocking
  • 16K MAC address table
  • DDM to support SFP diagnostic function***
    • Automatically convert the raw data into dB values for TX power/RX power, making it easier to measure the fiber distance
  • 10KB Jumbo frame on all ports
  • User friendly UI, auto topology drawing, topology demo, complete CLI for professional setting
  • Enhanced G.8032 Ring protection in 20ms for single ring
    • Support various ring/chain topologies, including dynamic coupling ring
    • Enhanced G.8032 ring configuration with ease
    • Auto ring configuration(auto mode) for single ring
    • Ring covers multicast on different ports
  • Provides EFT protection ±2000 VDC for power line.
  • Supports ±4000 VDC (Contact) and ±8000 VDC (Air) Ethernet ESD protection
  • LACP load balancing to distribute the load*
  • Built-in RTC (Real Time Clock) to keep track of time
  • Supports IEEE 802.1p Class of Service, per port provides 8 priority queues Port base, Tag Base and Type of Service Priority
  • IEEE 802.1d STP, IEEE 802.1w RSTP,802.1s MSTP VLAN redundancy
  • 4K 802.1Q VLAN, Port based VLAN, GVRP, QinQ*
  • Supports IEEE 802.1ab LLDP, Cisco CDP; LLDP info can be viewed via Web/ Console
  • DHCP server / client / DHCP Option 82 relay / DHCP Option 82 server; Port based DHCP server; DHCP Snooping; DHCP Option 66; basic IPv6 DHCP server
  • Mac based DHCP server to assign IP address
  • MLD Snooping for IPv6 Multicast stream
  • Bandwidth Control
    • Ingress packet filter and egress rate limit
    • Broadcast/multicast packet filter control
  • Relay alarm output system events
  • Miss-wiring avoidance
    • LED indicator
    • Email or traps notification
  • Node failure protection
    • Ensure the switches in a ring to survive after power breakout is back
    • The status can be shown in NMS when each switch is back
  • TFTP/HTTP firmware upgrade
  • System Event Log and SNMP Trap for alarm support; 32 RMON counters
  • Security
    • SSL/SSH v2/INGRESS/EGRESS ACL L2/L3
    • MAC address table: MAC address entries/Filter/MAC-Port binding
    • IP Security: IP address security management to prevent unauthorized intruder.
    • Management access control with priority
    • Login Security: IEEE802.1X/RADIUS
    • HTTPS for secure access to the web interface
    • TACACS+**
  • Static multicast forwarding forward reversed IGMP flow with multicast packets binding with ports for IP surveillance application
  • IGMP router port to assign query in ring and for reversed multicast video flow
  • Multicast VLAN registration* for metro video
  • IGMPv1,v2,v3 with Query mode for multi media; GMRP
  • Factory reset button to restore setting to factory default
  • Watchdog design to auto reboot switch CPU is found dead
  • Diagnostic including Ping / DDM information
  • Optional environmental monitoring for system input voltage, current, ambient temperature
  • Supports DIDO (Digital Input/Digital Output)
  • Fanless design, no moving parts
  • IP30 metal housing with DIN rail and Wall-mount** design
  • Auto Provision to verify switch firmware with the latest or certain version
*Future Release
8350-611IPGS-3408GSFP-48V8 10/100/1000T PoE at/af up to 30W + 4 1000M SFP L2+ Managed Industrial PoE Switch; -20°C to 60°C; Dual 44~56VDC
8350-612IPGS-3408GSFP-48V-E8 10/100/1000T PoE at/af up to 30W + 4 1000M SFP L2+ Managed Industrial PoE Switch; -40°C to 75°C; Dual 44~56VDC
8350-613IPGS-3408GSFP-48V-M8 10/100/1000T PoE at/af up to 30W + 4 1000M SFP L2+ Managed Industrial PoE Switch; Environmental monitoring; -20°C to 60°C; Dual 44~56VDC
8350-614IPGS-3408GSFP-48V-M-E8 10/100/1000T PoE at/af up to 30W + 4 1000M SFP L2+ Managed Industrial PoE Switch; Environmental monitoring; -40°C to 75°C; Dual 44~56VDC
8350-617IPGS-3408GSFP-12V8 10/100/1000T PoE at/af up to 30W + 4 1000M SFP L2+ Managed Industrial PoE Switch; -20°C to 60°C; Dual 9.5~56VDC
8350-618IPGS-3408GSFP-12V-E8 10/100/1000T PoE at/af up to 30W + 4 1000M SFP L2+ Managed Industrial PoE Switch; -40°C to 75°C; Dual 9.5~56VDC
8350-6171IPGS-3408GSFP-12V-M8 10/100/1000T PoE at/af up to 30W + 4 1000M SFP L2+ Managed Industrial PoE Switch; Environmental monitoring; -20°C to 60°C; Dual 9.5~56VDC
8350-6181IPGS-3408GSFP-12V-M-E8 10/100/1000T PoE at/af up to 30W + 4 1000M SFP L2+ Managed Industrial PoE Switch; Environmental monitoring; -40°C to 75°C; Dual 9.5~56VDC

Hardware Specifications

StandardsIEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX
IEEE802.3ab 1000Base-T
IEEE802.3z Gigabit fiber
IEEE802.3x Flow Control and Back Pressure
IEEE802.3ad Port trunk with LACP
IEEE802.1d Spanning Tree
IEEE802.1w Rapid Spanning Tree
IEEE802.1s Multiple Spanning Tree
IEEE 802.3ad Link Aggregation Control Protocol (LACP)
IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
IEEE 802.1X User Authentication (Radius)
IEEE802.1p Class of Service
IEEE802.1Q VLAN Tag
IEEE802.3at/af Power over Ethernet
Switch ArchitectureBack-plane (Switching Fabric): 24Gbps
Transfer Rate14,880pps for Ethernet port
148,800pps for Fast Ethernet port
1,488,000pps for Gigabit Ethernet / Gigabit Fiber port
CPUMarvell 800Mhz
RAM256M Byte
Flash128M Byte
Mac Address16K MAC address table
Jumbo frame10KB on all ports
Connectors10/100/1000T: 8 x ports RJ-45 with Auto MDI/MDI-X function
Mini-GBIC: 4 x 1000 SFP socket with DDM
RS-232 connector: RJ-45 type
Power & P-Fail connector: 1 x 6-pole terminal block
DIDO : 1 x 6-pole terminal block
Network Cable10Base-T: 2-pair UTP/STP Cat. 3, 4, 5/ 5E/ 6 cable
EIA/TIA-568 100-ohm (100m)
100Base-TX: 2-pair UTP/STP Cat. 5/ 5E/ 6 cable
EIA/TIA-568 100-ohm (100m)
1000Base-T: 2-pair UTP/STP Cat. 5/ 5E/ 6 cable
EIA/TIA-568 100-ohm (100m)
Optical Cable1.25Gbps:
Multi mode: 0 to 550 m, 850 nm (50/125 μm); 0 to 2 km, 1310 nm (50/125 μm)
Single mode: 0 to 10 km/ 30 km/ 40 km, 1310 nm (9/125 μm); 0 to 50 km/ 60 km/ 80km/ 120 km, 1550 nm (9/125 μm)
WDM 1.25Gbps:
Single mode: 0 to 10 km/ 20 km/ 40 km/ 60 km, 1310 nm (9/125 μm); 0 to 80 km, 1490 nm (9/125 μm); 0 to 10 km/ 20 km/ 40 km/ 60 km/ 80 km, 1550 nm (9/125 μm)
ProtocolCSMA/CD
LEDPer unit: Power 1 (Green), Power 2 (Green), Fault (Red), RM (Green)
Ethernet port: Link/Activity (Green), Speed (Green); Mini-GBIC: Link/Activity (Green)
DI/DO2 Digital Input (DI) :
Level 0: -30~2V / Level 1: 10~30V
Max. input current:8mA
2 Digital Output(DO): Open collector to 40 VDC, 200mA
Operating Humidity5% ~ 95% (Non-condensing)
Operating Temperature-20°C~60°C / -4°F~140°F (Standard model)
-40°C~75°C / -40°F~167°F(-E model)
Storage Temperature-40°C~85°C / -40°F~185°F
Power Supply44~56VDC (48V model)
9.5~56VDC (12V model)
PoE Budget240W for 45~56V input
(55V input is recommended for 802.3at 30W applications)
120W for 24V input
90W for 12V input
Higher PoE budget can be applied upon request. **
PoE pin assignmentRJ-45 port # 1~#8 support IEEE 802.3at/af End-point, Alternative A mode. Per port provides 30W PoE at/ 15W PoE af.
Positive (VCC+): RJ-45 pin 1,2.
Negative (VCC-): RJ-45 pin 3,6.
Power Consumption10W
Case DimensionMetal case. IP-30,
74 (W) x 105 (D) x 152 (H) mm (Standard model)
74 (W) x 105 (D) x 152 (H) mm (12V model)
96.3 (W) x 135 (D) x 152 (H) mm (-E model)
Weight900 g
InstallationDIN Rail and Wall Mount** Design
EMI & EMSFCC Class A,
CE EN55032 Class A, CE EN55024 ,
CE EN61000-4-2, CE EN61000-4-3,
CE EN61000-4-4, CE EN61000-4-5,
CE EN61000-4-6, CE EN61000-4-8
CE EN61000-6-2
BS EN55032, BS EN55024,
BS EN61000-4-2, BS EN61000-4-3,
BS EN61000-4-4, BS EN61000-4-5,
BS EN61000-4-6, BS EN61000-4-8
Stability TestingIEC60068-2-32 (Free fall),
IEC60068-2-27 (Shock),
IEC60068-2-64 (Vibration)
MTBF782,391 hours
Warranty5 years

Software Specifications

ManagementSNMP v1 v2c, v3/ Web/Telnet/CLI
SNMP MIBMIB
MIBII
SNMP MIB
Bridge MIB
IF MIB
RMON MIB
Private MIB
ITU G.8032Support ITU G.8032 v2/2012 for Ring protection in less than 20ms for self-heal recovery (basic mode)
Support various ring/chain topologies
Includes dynamic coupling ring
Enhanced G.8032 ring configuration with ease
Ring covers multicast on different ports
PoE Management
  1. PoE Detection to check if PD hangs then restart the PD
  2. PoE Scheduling to On/OFF PD upon routine time table
Per Port PoE StatusOn/ Off, voltage, current, watts, temperature
User friendly UI
  1. Auto topology drawing
  2. Topology demo
  3. DDM threshold monitoring with dB values***
  4. Complete CLI for professional setting
Port Trunk with LACPLACP Port Trunk: 8 Trunk groups/Maximum 8 trunk members
LLDPSupports LLDP to allow switch to advise its identification and capability on the LAN
CDPCisco Discovery Protocol for topology mapping
Environmental Monitoring**System status for input voltage, current and ambient temperature to be shown in GUI and sent alerting if any abnormal status(-M models)
VLANPort Based VLAN
IEEE 802.1Q Tag VLAN (256 entries)/ VLAN ID (Up to 4K, VLAN ID can be assigned from 1 to 4096)
GVRP, QinQ, Protocol based VLAN; IPv4 Subnet based VLAN
Spanning TreeSupports IEEE802.1d Spanning Tree and IEEE802.1w Rapid Spanning Tree, IEEE802.1s Multiple Spanning Tree
Quality of ServiceThe quality of service determined by port / CoS / ToS / VLAN / 61375-3-4
Class of ServiceSupport IEEE802.1p class of service, per port provides 8 priority queues
MLD SnoopingSupport IPv6 Multicast stream
Login SecuritySupports IEEE802.1X Authentication/RADIUS
Port MirrorSupport 3 mirroring types: “RX, TX and Both packet”
Network SecuritySupport 10 IP addresses that have permission to access the switch management and to prevent unauthorized intruder.
802.1X access control for port based and MAC based authentication/MAC-Port binding
Management access control with priority
Ingress/Egress ACL L2/L3
SSL/ SSH v2 for Management
HTTPS for secure access to the web interface
TACACS+** for Authentication
IGMPSupport IGMP snooping v1,v2,v3; 1024 multicast groups; IGMP router port ; IGMP query; GMRP
Static MAC-Port bridgeStatic multicast forwarding forward reversed IGMP flow with multicast packets binding with ports for IP surveillance application
Bandwidth ControlSupport ingress packet filter and egress packet limit.
The egress rate control supports all of packet type.
Ingress filter packet type combination rules are Broadcast/Multicast/Flooded Unicast packet, Broadcast/Multicast packet, Broadcast packet only and all types of packet.
The packet filter rate can be set an accurate value through the pull-down menu for the ingress packet filter and the egress packet limit.
RTCBuilt-in Real Time Clock to keep track of time always
Flow ControlSupports Flow Control for Full-duplex and Back Pressure for Half-duplex
System LogSupports System log record and remote system log server
Relay AlarmProvides one relay output for port breakdown, power fail and alarm.
Alarm Relay current carry ability: 1A @ DC24V
Protection
  1. Miss-wiring avoidance
  2. Node failure protection
  3. Loop protection
SNMP TrapUp to 10 trap stations; trap types including:

  1. Device cold start
  2. Authorization failure
  3. Port link up/link down
  4. DI/DO open/close
  5. Typology change(ITU ring)
  6. PoE ping failure
  7. Power failure
  8. Environmental abnormal**
DHCPProvide DHCP Client/ DHCP Server/DHCP Option 82/Port based DHCP; DHCP Snooping; DHCP Option 66; basic IPv6 DHCP server
Mac based DHCP ServerAssign IP address by Mac
DNSProvide DNS client feature
DiagnosticSupport Ping and DDM information
SNTPSupports SNTP to synchronize system clock in Internet
Firmware UpdateSupports TFTP firmware update, TFTP backup and restore; HTTP firmware upgrade
Configuration
upload and download
Supports text configuration file for system quick installation; Support factory reset button to restore all settings back to factory default
IfAliasEach port allows an alphabetic string of 128-byte assigned as its own unique name via the SNMP or CLI interface
Auto ProvisionTo verify switch firmware with the latest or certain version
EUR
EUREuro
