dataFEED OPC Suite

 La solution “tout en un” pour la communication OPC, ” Big Data” et la connectivité IoT et Cloud.

  • Accès aux Process et Données de Diagnostic aux contrôleurs tels que :  Siemens, Rockwell, B&R, Mitsubishi , grâce au dataFEED OPC Suite
  • Intégration de serveurs OPC dit “Classic” vers des solutions plus modernes comme l’OPC UA “Industrie 4.0“
  • Passerelle MQTT et REST pour l’intégration de données de production vers le cloud IoT et les solutions ” Big Data ” comme : Microsoft IoT, IBM Watson IoT

Accès simple et indépendant aux données des Controleurs

  • Accès en écriture et lecture des contrôleurs, des marques les plus répandues sur le marché
  • Utilisation sans intervention sur l’application du contrôleur
  • Intégration facile sur des contrôleurs en service ou sur une nouvelle installation.
  • Intégration de composant non OPC UA tel que les contrôleurs Siemens S7 dans une solution OPC UA
  • Gain impressionnant pour l’accès aux fonctions existantes OPC
  • Passerelle permettant la connexion divers controleurs avec des composantes Serveur OPC UA et servuers OPC Classic.

Gateway to Big Data and IoT Clouds Solutions

  • Integration of automation devices in IoT cloud applications using MQTT Publisher functionality, e.g. in IBM Bluemix Cloud
  • State-of-the-art security by SSL/TLS support, including certificates

No Need for DCOM Configuration

  • Integration of automation devices via MQTT Publisher and REST Client functionality in IoT cloud applications, e.g. IBM Watson Cloud or Microsoft IoT Connected Factory
  • Easy integration of production data into NoSQL Big Data storage solutions such as MongoDB
  • State-of-the-art security by SSL/TLS support, including certificates

Easy Configuration

  • Modern, intuitive graphical user interface for fast OPC communication configuration
  • Use of smart hands-on defaults, setup wizards and drag-and-drop support
  • Time savings through effective and efficient configuration of distrubuted automation systems with many OPC UA and OPC Classic Servers

*“Industrie 4.0“ is a German government-driven initiative for implementing an industrial “Internet of Things”

Supported dataFEED FeaturesOPC UA Server and Client, OPC Classic Server and Client, OPC Tunnel, MQTT, MindSphere and REST Connector,
Database Access (SQL/NoSQL), File Access, Data Exchange (in any direction between OPC UA and OPC Classic Servers or controllers), Filter, Optimizer, Concentrator, Bridge, Local Items (in any direction between OPC UA and OPC Classic Clients)
Supported ControllersSiemens SIMATIC S5, SIMATIC S7 (S7-200, S7-300, S7-400, S7-1200, S7-1500, including optimized blocks), LOGO! 8, PAC Counter and Siemens-compatible controllers like VIPA controllers
Rockwell SLC-500, PLC-5, ControlLogix and CompactLogix
Mitsubishi Melsec-Q Series with Ethernet interface card
B&R controllers with Ethernet interface
Modbus TCP-compatible controllers (Wago, Beckhoff, Phoenix, Schneider, etc.)
All controllers and devices with integrated OPC UA Server
Accessible Controller DataInputs, outputs, data blocks, markers, timers, counters
Supported IoT DevicesAll devices with integrated MQTT Publisher
Supported OPC SpecificationsOPC Classic Data Access V1.0a, V2.05, V3.0, OPC Classic XML-DA V1.01,
OPC Alarms & Events V1.10, OPC Unified Architecture V1.02
Supported OPC UAFunctionalityData Access profile

TCP transport protocol using OPC UA binary coding

Security Methods: Basic256SSha256, Basic256

Authentication by user names and passwords including user certificate

Supported OPC Data TypesVARIANT Data Types I1, UI1, I2, UI2, I4, UI4, R4, DATE, BSTR, BOOL and arrays (VT_Array) of these data types
Protocols for IoT Cloud LinkMQTT Publisher:
MQTT Publisher V3.1.1, V3.1
QoS, Retain, Last Will and Testament
Security SSL/TLS including certificatesMindConnect:
HTTPS
Methoda: POST
Security: SSL including certificates, authentication via Shared Secret or RSAREST Client:
TCP, HTTP, HTTPS
Methods: PUT, POST
Security SSL and user authentification including certificates
Supported DatabasesNoSQL databases, e.g. MongoDB, CouchDB
ODBC enabled databases, for example, Oracle, MySQL, Microsoft SQL Server, IBM DB2,
other NoSQL- and ODBC-enabled databases upon inquiry
Operation ModeApplication (OutProc Server), Windows Service
Logging, DiagnosticsLogging of OPC Calls and Notifications, OPC Data, OPC Tunnel frames, text file access, database access, configurable via integrated web server diagnostic interface
Supported Operating SystemsWindows 7, Windows 8, Windows 8.1, Windows Embedded 8.1 Industry, Windows 10, Windows 10 IoT Enterprise,
Windows Server 2003, Windows Server 2008, Windows Server 2008 R2, Windows Server 2012,Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
LicensingRuntime license per computer
Demo VersionFull dataFEED OPC Suite, time limited to 72 hours – ( Limitation : 10 servers connections / 250 data items )

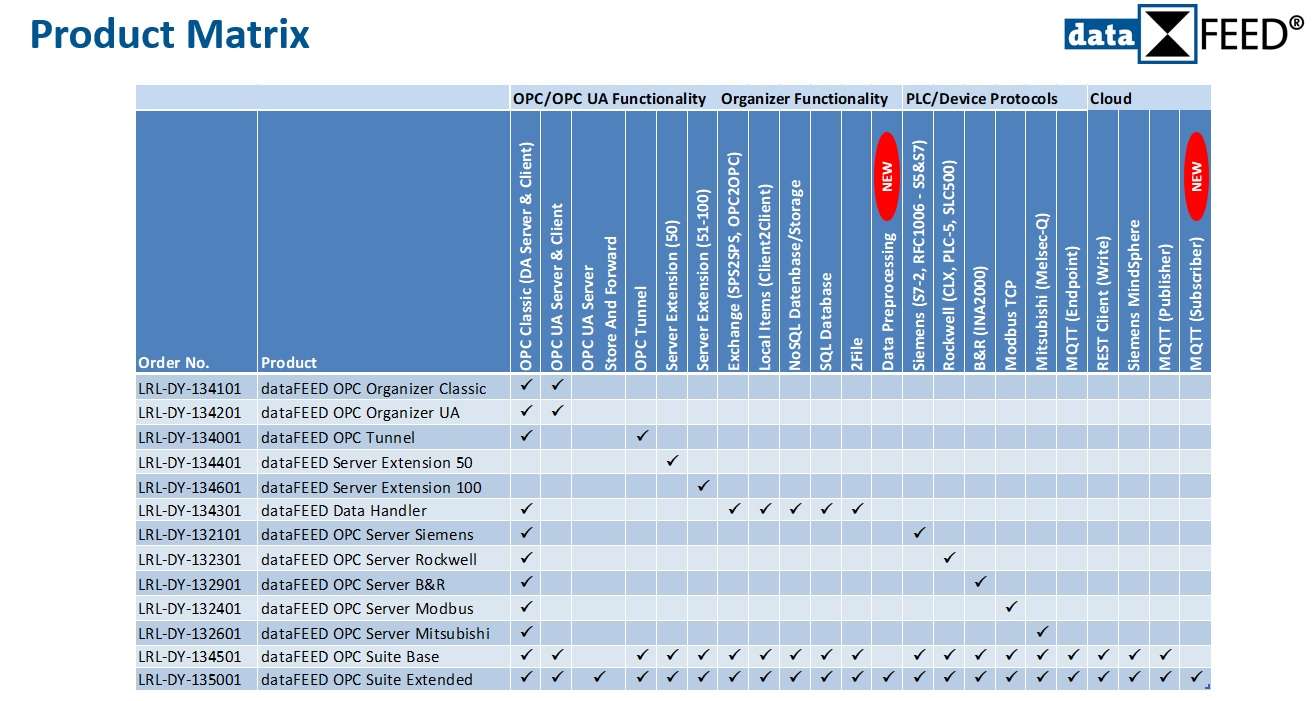

LRL-DY-134501dataFEED OPC Suite, Version 4.01 and higher, including all supported PLC protocols, OPC UA support, access of any number of OPC Tunnel Clients, for simultaneous access to a total of up to 100 OPC UA Servers, OPC Servers and dataFEED OPC Tunnel Servers plus additional functionality like Database Access, File Access, Data Exchange, Optimizer, Concentrator and Bridge
HUA-DD-130001USB Hardware Key for dataFEED OPC Suite, Version V4.01 and higher, replacing the standard Software Key

Scope of Delivery

SoftwaredataFEED OPC Suite on CD-ROM
DocumentationManual in PDF format and Online Help in English and German

Additional Products and Services

100-1030-01Training “OPC Server and Client in Practice”
GAA-DX-145111dataFEED uaGate SI
GPL-CS-191000echolink S7-compact

dataFEED OPC UA

dataFEED OPC Server SiemensServeur OPC Classic  ( Option : Serveur OPC UA ) pour accès facile et rapide aux process et données de diagnostiques sur les PLC Siemens : S5, S7-200, S7-300, S7-400, S7-1200 et S7-150 ainsi  que les controleurs compatible Siemens
dataFEED OPC Server B&RServeur OPC Classic ( Option : Serveur OPC UA ) pour l’accès facile et rapide aux process et données de diagnostique sur contrôleurs B&R
dataFEED OPC Server ModbusOPC Classic Server (optional: OPC UA Server) for fast and easy access to process and diagnostic data in controllers providing a Modbus TCP interface, e.g. controllers from Wago, Schneider Electric or Phoenix Contact
dataFEED OPC Server RockwellOPC Classic Server (optional: OPC UA Server) for fast and easy access to process and diagnostic data in Rockwell (Allen-Bradley) CLX, SLC and PLC-5 controllers
dataFEED OPC Server MitsubishiOPC Classic Server (optional: OPC UA Server) for fast and easy access to process and diagnostic data in Mitsubishi Melsec-Q controllers

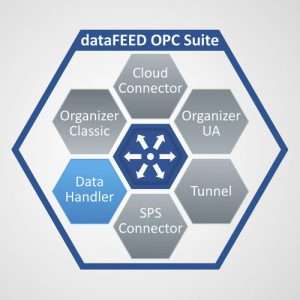

EXTENDED FUNCTIONALITY

dataFEED OPC TunnelOPC Tunnel for avoiding DCOM communication problems when using OPC Classic for communication between PCs
dataFEED REST ConnectorREST connectivity for data integration for IoT cloud solutions, support for OPC Classic and OPC UA (optional)
dataFEED MQTT ConnectorMQTT Publisher functionality for easy and efficient integration of production environments and its data in IoT (internet of Things) and Industrie 4.0* solutions
dataFEED OPC Organizer UA
OPC UA support for implementing Industrie 4.0. Allows using OPC UA (UA) for data exchange within an OPC Classic environment
dataFEED OPC Data HandlerData Handler extension for simple data exchange between controllers and OPC Servers as well as for storing process data in databases and files
dataFEED OPC Organizer ClassicOPC Classic Client and OPC Classic Server, for extended OPC Classic communication functionality

Vous pouvez retrouver les anciennes versions du dataFEED sur : Cloud d’ATEVA Technologie



Software

dataFEED OPC Suite v4.xx

dataFEED OPC Suite v5.xx

Documentation

For the use of MySQL database, you would need :

You can test you OPC Classical DA with our testing solution

Driver HASP disponible avec le dataFEED
