Ateva Technologies


Test vos cables Ethernet et vérifie/garantie la vitesse limite de ces cables.

Les vitesses des ” Wireless Access points” dépassent souvent, les vitesses de cablage installé dans le réseau . Est il possible que vos cables gèrent des vitesses bien au delà de leurs spécifications ? Est il possible que vos cables CAT5e ou CAT6 puissent atteindre des vitesses de 1GBits/S voire 10Gbits/s

Pour le savoir, une simple fonction sur le NetXpert XG, permettent d’effectuer 3 tests. Effectue un test de vitesse en envoyant 1Gb/s de données via votre cable ( Test BERT ) et il prouvera si celui ci fonctionera au-delà  des spécifications et suivra la vitesse des “Access Points” installés

Le NetXpert est le seul testeur de cables et gestionnaire de réseaux actif a effectuer  un test de taux d’erreurs sur les bits ( BERT ) , un test de signal Signal/bruit ( SNR) et retard de vitesse de 1Gb/s, 5Gb/s ou 10Gb/s en appuyant sur une touche. Vous pouvez maintenant effectuer des tests de débit en temps réel pour valider vos cables jusqu’à 10Gb/s.

Test le taux d’erreurs, le bruit et le delai de propagation instantanément

En effectuant un test de taux d’erreur sur les bits ( BERT ) et selon les normes IEE802.3an, le NetXpert XG vous certifie ou non, une transmission de données sans erreur jusqu’à 10Gb/s

Test automatique avec une “touche” comprends le rapport Signal/bruit ( SNR) et le décalage temporel, qui peuvent avoir un impact significatif sur la transmission Gigabit

Le rapport “signal/bruit” vérifie que le bruit est suffisamment faible et que le signal est suffisamment élevé pour une transmission fiable. Le “delai de propagation” indique un décalage entre les paires de fils. Un retard excessif peut entrainer un sérieuse dégradation de la transmission et donc de la performance.

Les 3 mesures fondamentales pour déterminer si une transmission est fiable ou non, peuvent être effectuées à l’aide d’une seule touche. La mesure faite, vous pouvez réitérer immédiatement à l’aide de cette unique fonction. Chaque mesure est archivée et est fournis à un rapport de synthèse final au format PDF, CVS ou XML

The cable qualifier that is defining a new category — the cable project qualifier

If you are a cable installer, network owner, network builder, or system integrator, you’ll be excited to hear that NetXpert XG includes a project editor and auto test generator for up to 1000 cables, and test reports you can keep for your records or leave with your customer.  Once the tests are created, plug in the cable, click test, and NetXpert XG starts testing the cable to IEEE 802.3 standards to prove the speed of your cable.  Not only do you get a wiremap and cable length, NetXpert XG tests BERT, SNR, Delay Skew, distance to opens, shorts, or miswires.  As a bonus you get active network tests for copper, fiber, and wireless.  And, with 2 NetXpert XG local units, you can test fiber cables.

Cable Project Qualifier

  • Use the project editor, cable test editor, test label editor to pre-configure your cable testing projects
  • Press test to automatically sequence up to 1000 cable tests from the local or remote device to increase cable testing efficiency when working alone
  • Test data cabling for IEEE 802.3 compliance at data rates up to 10 Gb/s (BERT)
  • Determine signal-to-noise ratio (SNR) for compliance up to 10 Gb/s
  • Measure delay skew for compliance up to 10Gb/s
  • Measure length of cable with TDR and capacitance measurements for highly accurate test results and easier troubleshooting
  • Full-color wire map shows distance to open, distance to short, miswires, split pairs, and shield on a color graphical display
  • Save test results and generate standards-based measurement reports providing “Pass/Fail” indication in pdf, csv, or xml format

Perform active network management

  • Support for IPv4 and IPv6
  • Discover your network and see the connected network devices
  • Identifies defective PoE switches with a PoE load test
  • DHCP test
  • Ping lists can be defined and saved for later use
  • LLDP/CDP detection and analysis
  • Identifies VLANs present in your network
  • Data transfer from the tester to the PC using USB stick, wireless, or bluetooth connectivity
Length Measurement Technology Time-Domain Reflectometry (TDR) and capacitance
Cable Measurements Cable Testing and ID: up to 1,000 ft (305 m)
Split Pair Detection: 3 ft (1 m) to 1,000 ft (305 m)
Length Measurement: 0 to 1,500 ft (457 m), ± (5%+1ft (30 cm))
Distance to fault: 0 to 656 ft (200 m) ± (5% + 3ft (1m))
Supports 8 wiremap remotes (RJ 45) and 24 RJ-45 ID only
Power over Ethernet (PoE) Test supports IEEE 802.3af PoE (Type 1, max 15.4W),
IEEE 802.3at PoE+ (Type 2, 30W) and 802.3bt PoE++ (Type 3, 60W)
Future proofed for IEEE 802.3bt Type 4 100W higherpower PoE
Active Ethernet Network and test support by interface:
Copper RJ-45 interface –100/1,000/2,500/5,000/10,000 Mb/sec link speeds
Fiber SFP+ #1 interface supports 10Gb/sec link speed
Fiber SFP+ #2 interface supports 1Gb/sec link speed
WiFi 802.11 a/b/g/n 2.4 Ghz WiFi and Bluetooth
Maximum Voltages Maximum voltage that can be applied to any 2 connector pins without causing damage to the tester:
RJ-45: 60 VDC or 50 VAC
Save Test Results Stores virtually unlimited cable or network tests with user defined names per project
Tone Generation Tone Frequencies: 730 Hz and 1440 Hz
Languages English, German, French, Spanish
Battery Li-Ion, 7.2 VDC, 3.1A-hr (typical)
Battery Life at 10Gb: 5 hrs minimum, 24 hrs stand-by
Temperature Operating: 14 to 140° F (-10 to 60°C)
Storage: -22 to 158°F (-30 to 70°)
Humidity 10 to 90% non-condensing
Enclosure Injection molded plastic
Display 7″ Color TFT-LCD capacitive touch display,
1024 x 600 resolution (WSVGA)
Size 245 x 177 x 73 mm (main unit)
130 x 177 x 55 mm (Active Remote)
Weight with Battery 2.6lbs (1.2 kg) main unit
1.3lbs (0.6 kg) Active Remote

eXport Software

eXport Software – Manage certification projects and create reports

Manage certification projects and create reports for WireXpert and FiberXpert
One Software for both WireXpert and FiberXpert
The eXport reporting software allows the user to centrally manage test results for copper and fiber-optic cables in a single program. Measurement data can be quickly imported with the software from the certification device. A new compressed file format results in small file sizes without loss of detail and allows very fast data exchange. The reports can be saved both as PDF and CSV files. All results from both the WireXpert 4500 and the FiberXpert OTDR 5000 (*. Sor) can be centrally documented. The graphs can display the individual RF parameters documenting and certifying the installed cable’s ability to transmit the customer required Ethernet speeds.

Before a project even begins, cable installation project managers use eXport and the world’s first List-Based Testing tool to generate labels for cables and test labels.  Use the cable label generation tool to quickly generate 1000’s of cable labels to be printed and afixed to your cables and patch panels.  That same list of cables can be downloaded to the WireXpert where you now have a list of tests to run so you can certify cables efficiently in the order you require to complete the job fast.  If a test fails, or cable is not ready to test, move on while the cable is being repaired, select the cable you want to test, and now the job keeps progressing.

Use with both WireXpert and FiberXpert
Capable of reading *.sor and *.flw file format
Export reports to *.csv or *.pdf file format
Import data from local PC, USB drive, or direct from WireXpert
Easy to use
View detailed test results with data plots
Use your own company logo on reports
Available in several languages
Compatible with Windows XP/Vista/7/8

Create certification reports for end customers and for cable warrantees
Manage cable projects before you go into the field: create cable labels to afix to cables.  This simultaneously creates a list of tests to download to the WireXpert to maximize your efficiency with List-based Testing
Increase your productivity and use the eXport software to manage WireXpert 4500 and FiberXpert OTDR 5000 (Bellcore file format)
Create PDF reports and send test results from anywhere

included in WireXpert delivery

THLink – Industrial Ethernet

Outil de diagnostic : Industrial Ethernet, indépendant du contrôleurs

Le THLink Industrial Ethernet, permet le contrôle et le diagnostic des réseaux PROFINET, MODBUS TCP et ETHERNET/IP. Les données sont collectées sur un réseua de 254 noeuds et  rendent disponibles ses données via le logiciel  THSCOPE. le THLINK Industrial Ethernet est facile à utiliser et peut être intégré sans interférer avec une installation existante


THLink Industrial Ethernet for an independent Access to PROFINET, EtherNet/IP and Modbus TCP Networks

  • Controller-independent
  • Independent of configuration tools
  • Only one tool needed to monitor multiple IP subnetworks (up to 254 nodes, one or more controllers

THLink Industrial Ethernet has been designed for Installation without Interference with Plant Operation

  • Connection to free port in industrial network, also possible during operation of the plant
  • No need to install TAPs or use mirror ports
  • Highest security (separate accesses for control room level and plant level, no routing)
  • Easy integration into existing plants thanks to compact design

Powerful Data Collection Capabilities Optimized for Ethernet-Based Industrial Communication

  • Support of the PROFINET, EtherNet/IP and Modbus TCP protocols
  • Collection also from standard Ethernet devices (e.g. PCs or camera systems)
  • PROFINET supervisor in PROFINET networks
  • Network load limit according to PROFINET guidelines

Optimized for Use by Maintenance Engineers, thanks to the THLink industrial Ethernet

  • Suitable for network acceptance testing, continuous monitoring and troubleshooting
  • Easy and intuitive handling and operation
  • Fault identification with intelligent troubleshooting assistance
  • Seamless integration with TH SCOPE diagnostics software
  • Network detection and data collection
  • Alarm notification in case of fault
  • Basic monitoring, configuration
  • Integrated web server
Input Voltage 24 VDC (18 VDC … 32 VDC)
Current consumption max. 180 mA
Current consumption relay contact max. 100 mA
Operating Temperature -40 °C … +75 °C
Relative Air Humidity 5 … 95 % (no condensation)
Ethernet Ports RJ-45 (10Base-T/100Base-TX)
Supported SD Cards See Release Notes
Mounting 35 mm DIN rail
Dimensions (HxWxD) 22.5 x 99 x 114.5 mm
Weight 120 g
Certifications CE
GDA-JY-003037 TH LINK Industrial Ethernet

Scope of Delivery

Hardware TH LINK Industrial Ethernet
Documentation Installation Manual, Release Note (by download)

Additional Products and Services

ATV-LRA-JY-003024 TH SCOPE (software key)
ATV-LRL-JY-003025 TH SCOPE (hardware key)
ATV-LRA-JY-003028 TH LINK PC Industrial Ethernet (software key)
ATV-LRL-JY-003029 TH LINK PC Industrial Ethernet (hardware key)
ATV-TRA-PN-TECH Training “PROFINET Technology”
ATV-TRA-PN-CERTENG Training “PROFINET Commissioning and Troubleshooting”

WireXpert 4500

Ethernet tester : WireXpert 4500

Ethernet Tester : WireXpert 4500 le premier du marché à obtenir le certificat : Bel Stewart Category 8.2 / Class ll .

Soyez le premier a tester et vérifier l’installation de votre Datacenter jusqu’à la vitesse de 40GB/s !!

Le WireXpert, avec sa gamme de mesure inégalée de 2 500 MHz, est le premier appareil de certification de câbles capable de certifier les systèmes de câblage les plus performants dans les réseaux d’entreprise et les centres de données. Les installateurs de câbles obtiennent un gain de productivité significatif grâce à la vitesse de test et à la facilité d’utilisation de WireXpert. Avec le test de certification pour le câblage en cuivre classe FA et CAT8, ainsi que pour le câblage par fibre optique MPO, SM, MM et MMEF, le WireXpert est prêt pour 40G et au-delà.

  • Works now and in the future. Supporting measurements up to 2,500 MHz, WireXpert already now complies with the upcoming CAT8 standards
  • Unsurpassed measurement accuracy reveals hidden faults in the telecommunication cabling
  • Ultra-fast measurement and certification procedures coupled with practical features speed-up your work flow. It only takes a few seconds per link to perform the required measurements and analysis
  • Highly accurate results and professional reporting provide customer-ready output
  • Intuitive user interface on a large color LCD touchscreen makes it easy for anyone to operate the unit
  • You open up new potential applications. Universally expandable with a variety of adapters

Copper testing

Certification Testing TIA 568-C.2 CAT5e, 6, 6A, draft CAT8
ISO/IEC 11801, EN 50173 Class D,E,EA,F,FA
draft Class I and Class II Permanent link and channel
Autotest time – CAT6A
Autotest time – Class FA
Max cable length for dual ended autotest 500m
Insertion Cycles Channel: 10,000 typical
Permanent link: 5,000 typical
Testparameters As specified in TIA 1152, IEC 61935-1
Loop Resistance 0 to 40 Ω, ±0.1 Ω
Length 0 to 500m, ±0.5m (dual ended testing)
Propagation Delay and Delay Skew 0 to 5000 ns, ±1 ns
Attenuation 0 to 70 dB, ±0.1dB
Pair-to-Pair and Power-Sum NEXT 0 to 85 dB, ±0.2 dB
Pair-to-Pair and Power-Sum ACRF 0 to 85 dB, ±0.2 dB
Return Loss 0 to 40 dB, ±0.2 dB
ACRN, PSACRN 0 to 85 dB, ±0.5 dB
Advanced Diagnostics Time-domain fault Locator for RL and NEXT
Measurement accuracy Exceeds TIA 1152 Level IIIe, IEC 61935 level IV
Measurement frequency range 1- 2,500 MHz

General Specifications

Interfaces Probe Interface, RJ-45 Ethernet, USB host and device, talkset, power jack
Display 6“ industrial LCD, touch sensitive area on both units
Enclosure Ruggedized plastic with rubber over-mold, withstands 1.5m drop test on hard surface
Remote unit abilities View test results, save tests, start autotest
Power supply AC 100-240V to 12V, 3A power adapter
Input over-voltage protection Protected against Telco voltages
Battery Removable and rechargeable Li-Ion
Battery Capacity >8 hours continuous operation
Internal Storage Capacity 2000 copper test results with full plot information
External Storage USB Flash Drive
Dimensions 232 X 126 X 87 mm(9.1 X 5.0 X 3.4 inch)
Weight Approx. 1.4 kg (3.0 lb) / unit
Supported Languages Chinese, Czech, English, Finnish, French, German,
Italian, Japanese, Korean, Polish, Portuguese,
Russian, Spanish, Swedish, Turkish
Calibration period 1 year


Operating Temparature 0 to 40 °C
Storage Temperature -20 to 60 °C
Relative humidity 10% to 80%

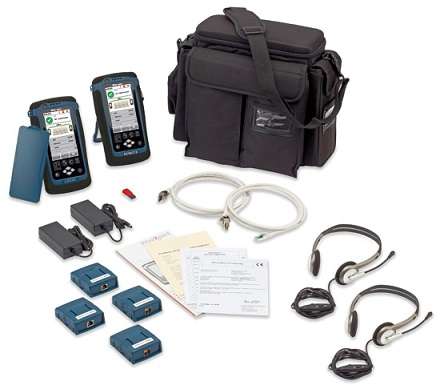

  • WX4500-FA
  • 2x Main certification test units
  • 2x Li-Ion batteries
  • 2x Stylus with Cords
  • 2x Display protection cover
  • 2x CAT 6A Permanent Link Adapter
  • 2x CAT 6A Permanent Link Test Cords
  • 2x CAT 6A Channel Adapter
  • USB Stick with reference manual and eXport software
  • 2x Talk sets
  • 2x AC Power Adapters
  • 2x Country Specific Power Cords
  • Calibration certificate
  • Quick Reference Guide
  • Carry bag

WireXpert4500 settings
