Outil de diagnostic : Industrial Ethernet, indépendant du contrôleurs

Le THLink Industrial Ethernet, permet le contrôle et le diagnostic des réseaux PROFINET, MODBUS TCP et ETHERNET/IP. Les données sont collectées sur un réseua de 254 noeuds et  rendent disponibles ses données via le logiciel  THSCOPE. le THLINK Industrial Ethernet est facile à utiliser et peut être intégré sans interférer avec une installation existante

csm_THLink_IE_D_EN_170101_311_fbdb7e6c27

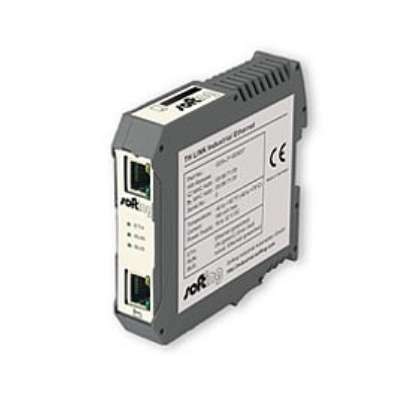

THLink Industrial Ethernet for an independent Access to PROFINET, EtherNet/IP and Modbus TCP Networks

  • Controller-independent
  • Independent of configuration tools
  • Only one tool needed to monitor multiple IP subnetworks (up to 254 nodes, one or more controllers

THLink Industrial Ethernet has been designed for Installation without Interference with Plant Operation

  • Connection to free port in industrial network, also possible during operation of the plant
  • No need to install TAPs or use mirror ports
  • Highest security (separate accesses for control room level and plant level, no routing)
  • Easy integration into existing plants thanks to compact design

Powerful Data Collection Capabilities Optimized for Ethernet-Based Industrial Communication

  • Support of the PROFINET, EtherNet/IP and Modbus TCP protocols
  • Collection also from standard Ethernet devices (e.g. PCs or camera systems)
  • PROFINET supervisor in PROFINET networks
  • Network load limit according to PROFINET guidelines

Optimized for Use by Maintenance Engineers, thanks to the THLink industrial Ethernet

  • Suitable for network acceptance testing, continuous monitoring and troubleshooting
  • Easy and intuitive handling and operation
  • Fault identification with intelligent troubleshooting assistance
  • Seamless integration with TH SCOPE diagnostics software
Functionality
  • Network detection and data collection
  • Alarm notification in case of fault
  • Basic monitoring, configuration
  • Integrated web server
Input Voltage24 VDC (18 VDC … 32 VDC)
Current consumptionmax. 180 mA
Current consumption relay contactmax. 100 mA
Operating Temperature-40 °C … +75 °C
Relative Air Humidity5 … 95 % (no condensation)
Ethernet PortsRJ-45 (10Base-T/100Base-TX)
Supported SD CardsSee Release Notes
Mounting35 mm DIN rail
Dimensions (HxWxD)22.5 x 99 x 114.5 mm
Weight120 g
CertificationsCE
GDA-JY-003037TH LINK Industrial Ethernet

Scope of Delivery

HardwareTH LINK Industrial Ethernet
DocumentationInstallation Manual, Release Note (by download)

Additional Products and Services

ATV-LRA-JY-003024TH SCOPE (software key)
ATV-LRL-JY-003025TH SCOPE (hardware key)
ATV-LRA-JY-003028TH LINK PC Industrial Ethernet (software key)
ATV-LRL-JY-003029TH LINK PC Industrial Ethernet (hardware key)
ATV-TRA-PN-TECHTraining “PROFINET Technology”
ATV-TRA-PN-CERTENGTraining “PROFINET Commissioning and Troubleshooting”
