Description

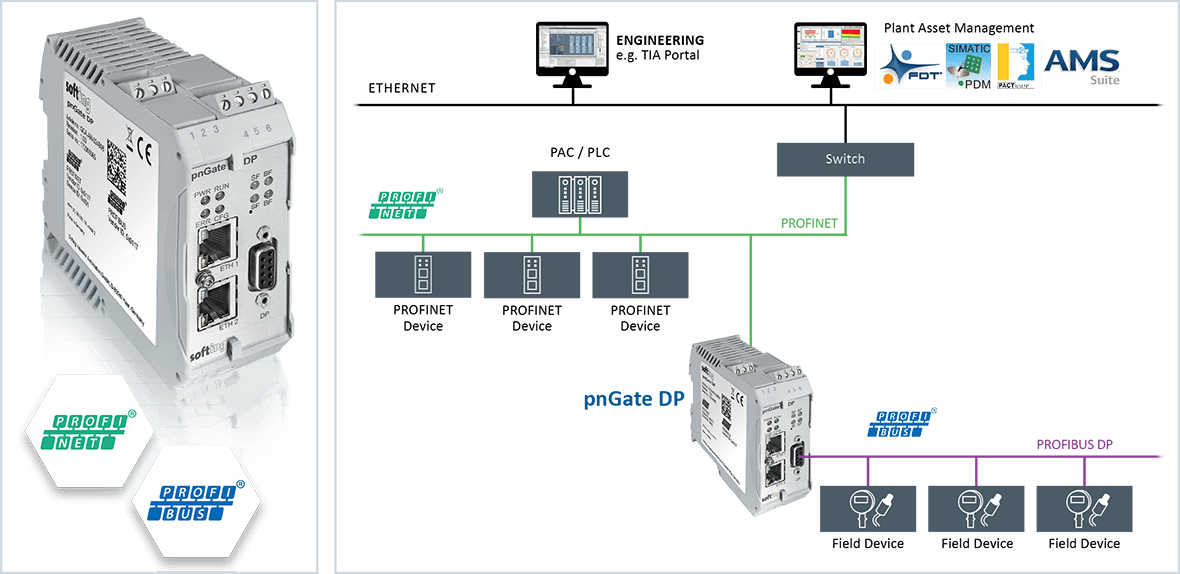

pnGate DP : PROFINET Gateway for PROFIBUS Slave
The pnGate DP allows you to connect PROFIBUS slaves to a PROFINET network. Keep your PROFIBUS slaves reliable and important. no more endless lengths of Profibus cable, which cause reflection problems. the gateway, as soon as possible, will solve the problem.
Configuration, Parameterization and Plant Asset Management Using Standard Industry Tools
- Supports major PROFINET engineering tools such as TIA Portal, Step7 und PC WORXS
- Included CommDTM allowing use in FDT/DTM frame applications
- EDD-based device parametrization using Siemens Simatic PDM
Direct Connectivity to PROFIBUS Segments
- Single access point to PROFIBUS DP segment from PROFINET networks
- Acting as PROFINET device and PROFIBUS DP master
- Support of one PROFIBUS DP segment
- Support of up to 32 PROFIBUS devices
Key Component for Transition to State-of-the-Art Technology
- Re-use of existing PROFIBUS segments without requiring modification
- Support of MRP and S2 PROFINET redundancy for increased reliability
- Data Sheets
Manuals & Documentation
| GCA-AN-024606 | pnGate DP, PROFINET to PROFIBUS DP Gateway. Supports 1 PROFIBUS DP segment (RS485). |
| Additional Products and Services | |
| LRL-DY-134501 | dataFEED OPC Suite, Version 4.01 and higher, including all supported PLC protocols, support for OPC UA, access for any number of dataFEED OPC Tunnel Clients, for simultaneous access to a total of up to 100 OPC UA Servers, OPC Servers and OPC Tunnel Servers, and many more Functionalities such as Database and File Access, Data Exchange, Optimizer, Concentrator and Bridge |
| GCA-AN-024608 | pnGate PB, PROFINET to PROFIBUS gateway. Supports 2 PA segments (up to 32 PA devices, MBP physical layer) and 1 PROFIBUS DP segment (RS485). |
| GCA-AL-024602 | pnGate PA, PROFINET to PROFIBUS-PA Gateway. Supports up to 2 PROFIBUS PA segments (up to 32 PROFIBUS PA devices). |
| GCA-AL-024604 | pnGate PA, PROFINET to PROFIBUS-PA Gateway. Supports up to 4 PROFIBUS PA segments (up to 64 PROFIBUS PA devices). |
