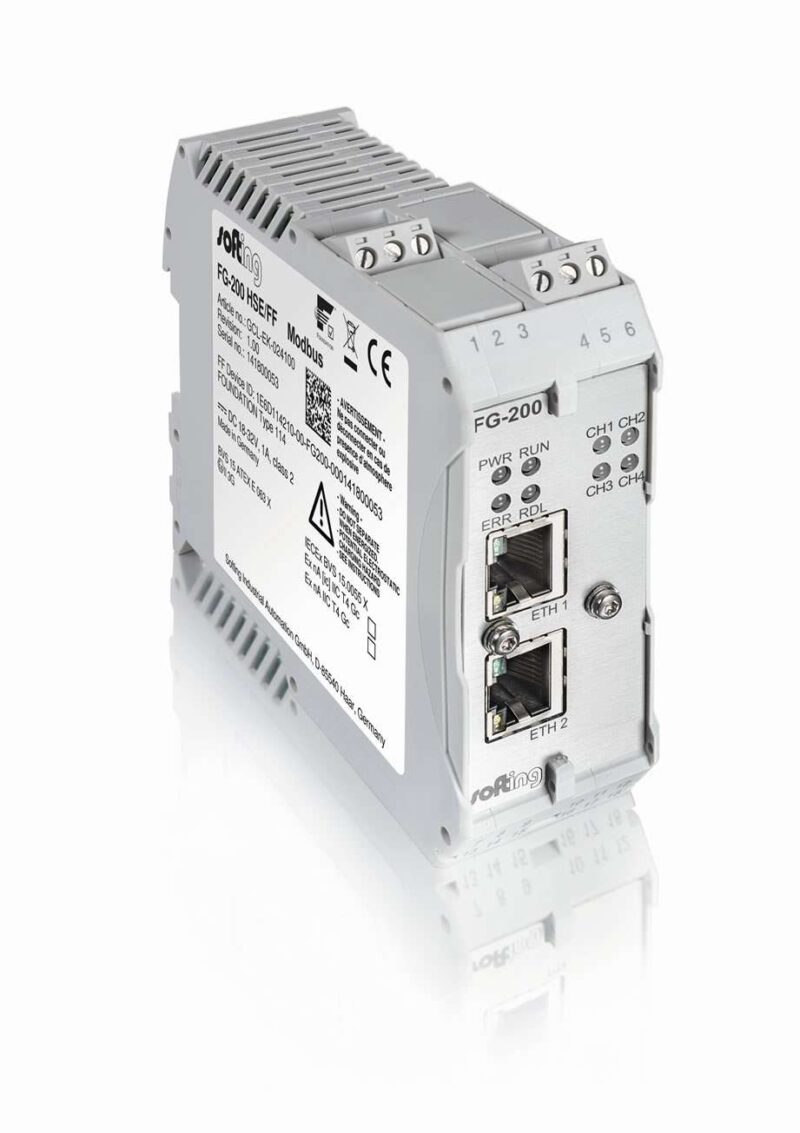

FG-200 HSE/FF: Foundation Fieldbus – Modbus TCP Gateway
The FG-200 HSE ( High Speed Ethernet ) /FF ( Foundation fieldbus ) Modbus Gateway : for the integration of control system on Modbus TCP

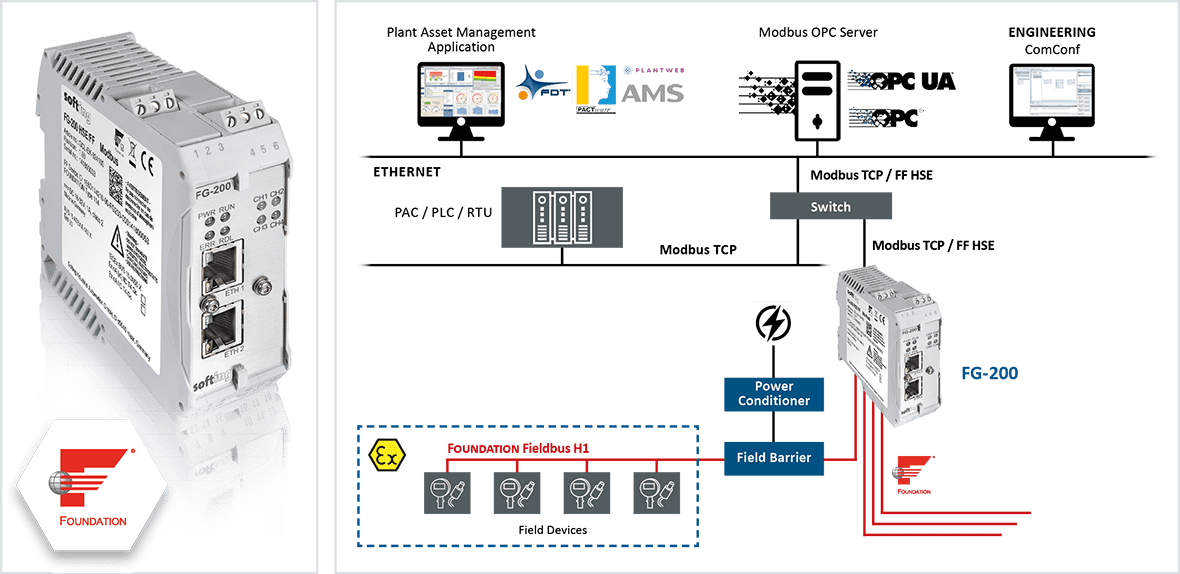

Foundation Fieldbus (FF) network: Integration via Modbus TCP including redundancy
Using Softing’s FG-200 FF, it is possible to integrate up to four H1 FOUNDATION™ foundation fieldbus (FF) links into control systems, supporting Modbus TCP. The Softing FG-200 FF gateway provides redundancy and is suitable for use in hazardous areas. This device provides rapid access to process data, while utilizing Fieldbus Delivery (FF) benefits, such as reduced cabling, central field device parameterization, comprehensive diagnostics, or intrinsically secure device segments. The gateway is compatible with 9419 series and 9412 series products from the R. STAHL Bus-Carrier series for easy commissioning.
Quick and easy commissioning of the Softing gateway: FG-200FF
- Optional support for the STHAL Carrier 9419 Bus and Fieldbus 9412 Power Supply (wiring reduced to a minimum)
- Import Modbus data to a web server reducing mapping efforts
Optimized Management: Softing: FG-200FF
- “Visitor” mode to avoid any interference with the network
- Possibility of system management using different software (e.g. Emerson’s AMS) and Field Device Tool (FDT) frame applications (e.g. SMART VISION, FieldMate, Field Device Manager, FieldCare, or PACTware)
- Redundancy capacity for Softing Gateway: FG-200FF
- Possible redundancy link (D-3 according to FF-593)
- Automatic mirroring with data configuration
- Very fast redundancy
All necessary tools included
- “FF Configuration Tool” for configuring devices and cyclical communication
- PACTware for device configuration and basic management.
| Hardware | Processor Status LEDs (Gateway) Status LEDs (Fieldbus) | Altera Cyclone V SoC with dual-core ARM Cortex-A9 PWR (power supply), RUN (operation), ERR (error), RDL (redundancy link) FF H1 activity per link |
| Interfaces and Connectors | Ethernet FOUNDATION fieldbus H1 | 2 * IEEE 802.3 100BASE-TX / 10BASE-T (only ETH1 supported) Connectors: RJ45 4 FF H1 links, compliant to type 114 of FF physical layer profile (each link capable to operate independently as Link Master and/or Time Master) Transfer rate: 31.25 Kbit/s Fieldbus voltage range: 9 VDC ... 32 VDC, preferred voltage: 24 VDC Current consumption: 10 mA / link Connectors: 3-position screw connection, galvanically isolated |
| Physical Properties | Dimensions (H x W x D) Weight Power Supply Operating / Storage Temperature Relative Humidity Cooling Coating Mounting Protection Class | 100 mm x 35 mm x 105 mm Approx. 0.25 kg 18 VDC ... 32 VDC; SELV/PELV power supply mandatory Typical input current: 200 mA, maximum input current: 1 A (allowing for in-rush current at switch-on) No power supply to FF H1 links through FG-200 HSE/FF Modbus -40 °C .. +70 °C / -40 °C .. +85 °C (see detailed mounting description in user manual) 10 % ... 95 %, non-condensing Convection, no fan Conformal coating based on ANSI / ISA-S71.04 G3 DIN rail 35 mm IP20 |
| Software | Protocols Redundancy | FOUNDATION fieldbus H1 FOUNDATION fieldbus HSE Modbus TCP Device redundancy compliant to type D-3 according to specification FF-593 |
| Conformity / Certifications | CE Electromagnetic Compatibility (EMC) Vibration / Shock Hazardous Location Certifications Safety Requirements | EN61000-6-2, EN61000-6-4, EN55022 Limit Class A, EN55011 FCC CFR45, Part 15 Section 15.107 and 15.109 (Class A), VCCI Class A Information Technology Equipment 2002 DIN EN 60068-2-6 Vibration / DIN EN 60068-2-27 Shock cULus: Class 1, Division 2, Groups A, B, C, D (in preperation) IECEx: Ex nA [ic] IIC T4 Gc ATEX: II 3G nA [ic] IIC T4 Gc IEC/EN/UL 61010-1 IEC/EN/UL 61010-2-201 (with CB scheme) |
-
Drivers & Software
-
Manuals & Documentation
- FG-200 HSE/FF Modbus User Manual V1.20 ( Version: EN-012018-1.20)
- FG-200 HSE/FF Modbus Quick Startup Guide V1.31 ( Version: EN-102018-1.31 )
- Communication Configuration Tool User Guide V2.23
- Firmware FG-200FF
-
Articles & White Papers
-
Certificates
-
Data Sheets
Description
| Hardware | FG-200 HSE/FF Modbus |
| Logiciel | Outil de configuration FF, FDT CommDTM, PACTware sur CD-ROM |
| Documentation | Quick Startup Guide, User Manual sur CD-ROM |
Références
| GCL-EK-024100 | FG-200 HSE/FF Modbus (Foundation fieldbus / Modbus TCP ) |
| GCL-EK-024101 | FG-200 HSE/FF Modbus, functionalité, conception identique pour une utilisation avec R. STAHL bus-Carrier Series 9419 et Alimentation Fieldbus série 9412 |
Pour formation : nous contacter
- Manuels & Documentation
- Manuel utilisateur_V1.10 ( Version: EN-072016-1.02 )
- Alimentation électrique pour bus FF ou PA ( Power Conditionner ) : Stahl 9412 ( 9412/00-310-11s )
- ACA-ZZ-020631 : Cable 30 cm pour connecter 2* FG-200FF en redondance. [ Redundancy Link ( 3 Pole) ]
