mobiLink Power HART-FF-PA

mobiLink Power HART-FF-PA

mobiLink Power interface for configuring HART, PROFIBUS PA and Foundation Fieldbus devices, with a built-in power supply for the field device.
mobiLink Power is supplied for the HART protocol. Options: FF license, PA license.

HS Code: 84733020

SKU: DUA-KM-020440-2 Categories: , , , , , , , Tags: , , ,

Description

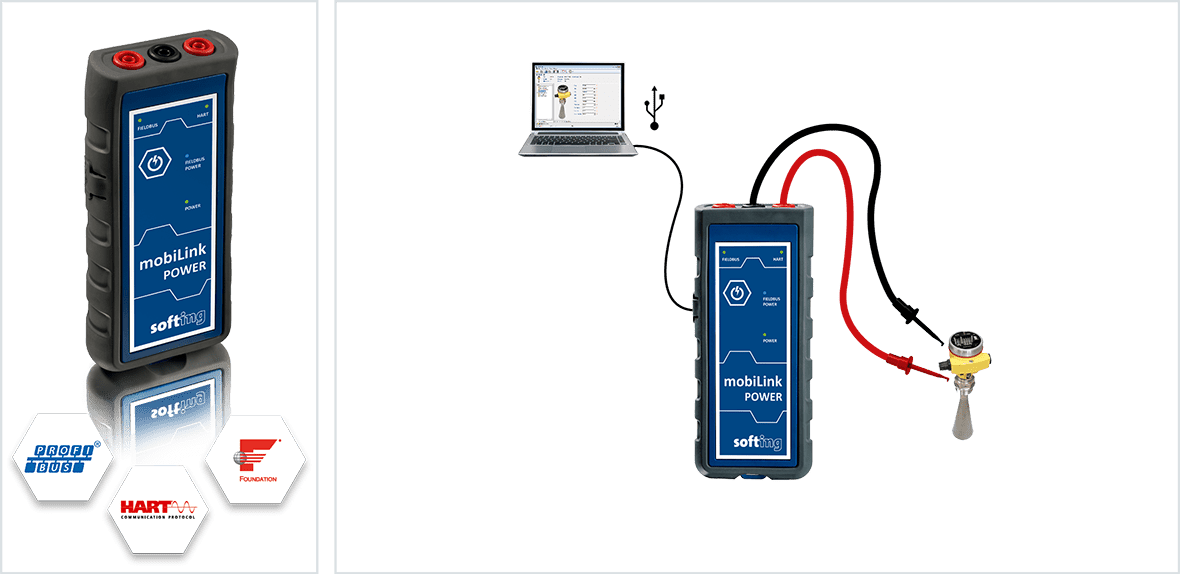

mobiLink Power allows a direct connection to the field device without any infrastructure. Its built-in power supply eliminates the need for additional components such as an external power supply or a termination resistor, and greatly simplifies maintenance of HART, PROFIBUS PA and Foundation Fieldbus devices.

  • mobiLink Power

mobiLink Power: a single interface for the major process automation protocols

  • HART Master, Foundation Fieldbus Host and PROFIBUS PA Master included in one device
  • Parametrization and configuration of field devices
  • Diagnostics and condition monitoring

Overview

Provides the power supply for the field devices

  • Eliminates the need for an additional power supply and power conditioner for workbench applications

Support of FDI, FDT frame applications and major engineering tools

  • PACTware FDT frame application and HART communication DTM included
  • Communication DTM for Foundation Fieldbus and PROFIBUS PA (optional)
  • Foundation Fieldbus configuration tool (optional)
  • Application Program Interface for integration into engineering systems

Unlimited flexibility in use

  • mobiLink Power draws its power from the connected computer via USB

Downloads

Documents

Datasheet: mobiLink Power HART-FF-PA

Technical specifications and features of the mobiLink Power interface.

Download

mobiLink Power — Cloud Access

Access to software, firmware, drivers and documentation via our secure cloud.

Drivers & Software

mobiLink Manager (32/64bit), mobiLink DTM (32/64bit), PACTware.

Request Download

Documentation

User manual, quick start guide and technical documentation.

Request Download

Other

Firmware, mobiLink presentation, licensing information and additional resources.

Request Download

References

DUA-KM-020440 mobiLink Power for HART applications, including accessories
LRA-KK-021973 linkPlus FF – License to activate Foundation Fieldbus
LRA-LL-021974 linkPlus PA – License to activate PROFIBUS PA
LRA-KK-020721 Licence for FF Configuration Tool ComConf
