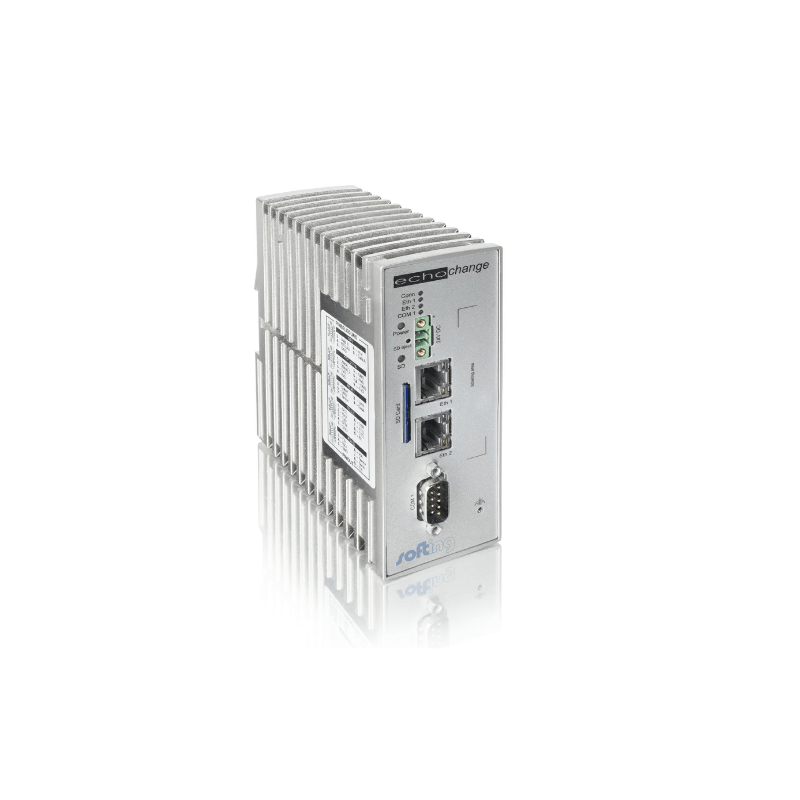

echochange 30 PLC
Connection
Passerelle industrielle pour la conversion de protocoles. Prend en charge les PLC Siemens S5/S7 ou automates au protocole Modbus , Rockwell et Mitsubishi Maximum de connections :30
HS code : 84715000
In stock
Description
echochange
Passerelle Ethernet pour la connexion de différents contrôleurs
The echochange protocol converter supports Ethernet TCP/IP protocols of such leading manufacturers as Siemens, Schneider Electric and Rockwell Automation. This simple protocol conversion makes communication between automation systems of different manufacturers quick and easy.
Protocol Conversion for Data Exchange between Multi-Vendor Automation Systems
- Integration of robust control technology without having to adjust control software
- Combination of separate networks with different media via configured connections
- Connection of physically separate networks with different media or heterogeneous networks with identical medium
- Connection of data from different control systems via allocation tables
- Bi-directional conversion and writing of PLC data via configured connections
- Analysis of device functionality and extensive Ethernet diagnostics
Support of Multiple Industrial Standard Protocols
- Support of TCP, UDP, IP, ISO (H1), ISO on TCP (RFC1006), PLC Header, EtherNet/IP Ethernet protocols
- Linking of computers with TCP/IP to ISO (H1) networks
- Remote maintenance of ISO (H1) networked controllers via TCP/IP
- Routing support for controllers
Investment Protection and IT Maintenance Cost Reduction
- Standard component for extending functionality without modifying existing systems
- Very easy configuration through straight-forward project import without requiring control modifications and programming skills
- Remote configuration and diagnosis via remote maintenance if required
- No need for additional PC with software updates and additional administration
- Working for years once configured – untouched, without updates, and with zero maintenance costs
- Supporting plug-and-go replacement if required based on configuration data stored on SD card
| Ethernet Addressable Controllers | Siemens S7 and S5, Rockwell Automation ControlLogix, CompactLogix, PLC-5 and SLC-500, Modbus TCP controllers (e.g. Schneider Electric, Phoenix, Contact Wago, Beckhoff), Mitsubishi (Melsec-Q), etc. |
| Ethernet Protocols | TCP/IP, RFC1006 (ISO on TCP), ISO (H1), EtherNet/IP, AB Ethernet, S5, S7, CLX, SLC, Send/Receive (raw data / socket), TCP/IP with PLC header, Modbus TCP, Melsec-Q, DLMS, DCU |
| Protocol Conversion |
|
| Ethernet Interfaces | 2xTP (RJ45), 10/100MBit/s |
| Power Supply | 24VDC, ca. 0,3A |
| Ambient Conditions | Operating Temperature: 0 to 55 °C, Storage Temperature: -20 to 70 °C |
| Dimensions (HxWxL) | 131mm x47mm x 111mm |
| Weight | ca. 0,4kg |
| Mounting | 35mm DIN Rail |
| Protection Class | IP20 |
| Certifications | CE, FCC, VCCI |
Documentation :
- echochange : Datasheet
- echochange : Quick Start
- echochange : User manual
- echochange : Release notes
- echochange : Setting up exchange between a Siemens S7-1200 and Allen-Bradley ControlLogix ( PUT / GET )
- echochange : Setting up exchange between a Siemens S7-300 and Allen-Bradley ControlLogix (SEND / RECEIVE )
- echochange : Setting up exchange between a Siemens S7-300 and Allen-Bradley ControlLogix ( PUT / GET )
Software :
- NetCon Echo configuration Software : Derniere release disponible sur notre cloud
ISO / CD
| GPL-YY-142101 | echochange, Maximum 10 Connections; Connectors: 2xEthernet |
| LRA-YY-142001 | Upgrade echochange: Maximum 30 Connections |
Additional Products and Services
| 700-5596-04 | AC Adapter, 24VDC, Euro, UK, or USA |
| 120-1010-05 | Telephone support: application consulting, fees charged on a time and materials basis |
| 110-1000-01 | Training “Industrial Ethernet: Troubleshooting in Automation Plants“, 3 days |
Scope of Delivery
| Hardware | Protocol converter echochange, SD Card 2 GB, connector for power supply* |
| Software | Configuration software NetCon on CD-ROM |
| Documentation | Quick Start leaflet, integrated help , product manual on CD-ROM |
* A plug-in powerpack is not included. If necessary, please order this separately.
Pour des formations sur l’echochange, veuillez nous contacter
Connector Power Pack 24 V DC | ||
| Country-specific connector power packs are available. Note: A connector power pack is not included in the delivery of the echochange. If necessary please order it separately. |  | |
Technical Details100 – 240 V AC, 47 – 63 Hz, sec. 24 V, 1,25A | ||
