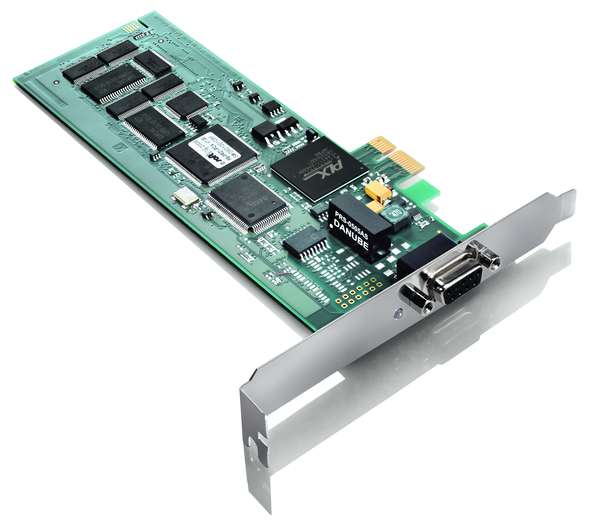

Carte universelle PROFIBUS, format PCI Express, pour une utilisation Maitre ou Esclave

Simple ou double canaux, l’interface PB-PRO1 est une interface au format PCI Express pour l’intégration de PC/ Servers dans une architecture PROFIBUS. la carte PB-PRO1-PCIE, permet d’utiliser vos PC comme “contrôleur”, Système de contrôle d’applications et panneau opérateur.

Support of PROFIBUS Master or Slave Functionality

The protocol required for the specific use case is user selectable and executed on the PBpro PCI Express board. As a DP slave, the board integrates the PC into overlying control architectures. Configured as a DP master, the board turns the PC itself into the controller. As a DP Master Class 2, it provides the basis for parameterization and asset management tasks. In addition, integration into FMS systems or proprietary applications is just as easy and unproblematic as direct access at the lowest protocol level (FDL). This makes the PBpro PCI Express a universal interface solution and allows manufacturers to optimize the overhead costs and the inventory for their PROFIBUS options.

Rapid Integration With the Right Software Interface

The included PROFIBUS driver software is complemented with many sample programs that demonstrate how to use the PROFIBUS API. Commented sample programs show how this is done. A matching Softing OPC Server, which is available as an optional standard interface, quickly and easily connects any application that has an integrated OPC client. Typical applications include visualization, SCADA or MES systems. FDT compliant parameterization tools use the PROFIdtm Communication DTM from Softing as a link to the board. Used with the free STEP7 driver, the board can also provide a PG/PC adapter for programming Siemens controllers.

Application in a Wide Variety of Target Systems

In addition to standard Windows environments, the PBpro PCI Express board also supports Windows CE.NET as a real-time environment. On request, Softing’s team of engineers can customize the board according to customer specifications.

Master/Slave, Single Channel 1) Slave, Single Channel 1)Master/Slave, Dual Channel
PROFIBUS Protocol
DP-V0 Master
DP-V1 Master: Acyclic C2 Services
FMS
FDL
DP-V0 Slave
Fieldbus Connection9-Pin D-Sub Female, RS485, Galvanically Isolated
Transfer Rates9.6; 19.2; 45.45; 93.75; 187.5; 500; 1500; 3000; 6000; 12000 Kbit/s
PC InterfacePCI Express x1 According to PCIe r1.0a and CEM 1.1, 512 KB Shared RAM per Channel
Operating Temperature0 oC .. +55 oC
Storage Temperature-20 oC .. +70 oC
Relative Humidity< 90%, Non-Condensing
Dimensions [mm]168 x 69 168 x 69168 x 103
Power Supply
Supply Voltage3.3V / 12V (± 5%) DC
Current Consumption [mA]typ. 500 / 90typ. 500 / 90typ. 640 / 170
Drivers available forWindows 2000, Windows XP, Windows Vista, Windows 7, Windows 8, Windows 10
Conformity
PB-PRO 1-PCIE (PB-PRO 1-PCIE/LP1))Master/Slave, Single Channel 1)
PB-PRO 1S-PCI E(PB-PRO 1S-PCIE/LP1))Slave, Cingle Channel 1)
PB-PRO 2-PCIEMaster/Slave, Dual Channel

Scope of Delivery

PC interface Board, CD with Drivers, Documentation and Sample Programs

Additional Products and Services

OPC-PBPROFIBUS OPC Server for DP-V0 / DP-V1
DCF-DY-4100OPC Server for S7 / S5
TRA-PB-TECHPROFIBUS Technology Training

1) Also Available with Low Profile Slot Bracket
