S5-TCPIP

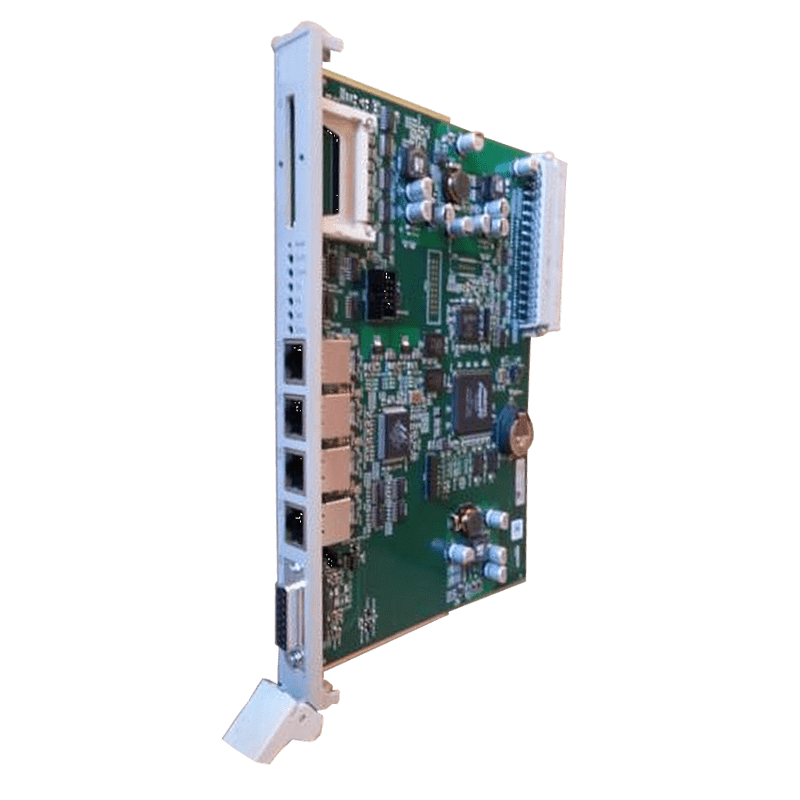

S5-TCP/IP-100

Connection

S5-TCP/IP card S5 card, supporting S5-115U, S5-135U, S5-150U and S5-155U
4* built-in Ethernet port
Supported protocols

  • TCP/IP
  • ISO on TCP ( RFC1006)
  • ISO ( H1)
  • Modbus on TCP
  • PLC Header

HS Code : 85423119

Available on backorder

SKU: ATV-200-4000-01 Categories: ,

Description

S5-TCP/IP-100 – For replacement of Siemens S5 PLC

The S5-TCP/IP-100 is an Ethernet interface for Siemens S5 Simatic. With its 10 MBit/s and 100 MBit/s, the processor communication offers an exceptional rate of data transmission. It communicates with S7 and S5 controllers, as well as Modbus TCP controllers, such as Schneider, Wag and many others.

Overview

Communication

  • TCP/IP, ISO over TCP (RFC1006) and Sinec H1 communication at the same time
  • Communication with S5 controllers and S7 controllers via ISO over TCP (RFC1006).
  • Communication with Schneider, Beckhoff, Wago controller and many others via Modbus TCP
  • Transmission of raw data (send/receive communication)
  • Chance to acquire and visualize process data via OPC (ISO 7 layer standard parametrization)
  • Connection to a PC or programming software directly via serial interface or via the bus
  • Support for “Event controlled” data communication via Fetch on event
  • Connection of several devices or setup of local networks, integrating a 4-port switch

Security

  • High-performance security thanks to permanent monitoring
  • Password protection available
  • Archiving of data possible in the event of a power failure
  • Additional security on CompactFlash card

Quick and easy diagnosis

  • Simple connection for diagnostics and connection overview
  • PLC diagnostic interface
  • Separation between monitoring of standard connections and “Fetch on Event” connections
  • Network status, number of received and sent telegrams and evaluation indicator

Technical details

Supported S5 Controllers SIMATIC S5-115, SIMATIC S5-135, SIMATIC S5-150, SIMATIC S5-155
PLC Interface 1 x TTY, 15-pole Sub-D socket with slide-locking bolts
4-Port-Ethernet-Switch RJ45, 10/100MBit/s, half/full-duplex, 10 BaseT/100 BaseTX, Auto-negotiation, link LED and activity LED per port
Supported Protocols TCP/IP, ISO on TCP (RFC1006), ISO (H1), Modbus TCP, PLC Header, DNS, DHCP, SNMP services in accordance with MIB II, FTP
Types of Jobs Send Direct, Receive Direct, Fetch Active, Fetch Passive, Write Active, Write Passive, Fetch on Event
Compact Flash Slot Type I or II (standard), for configuration backup, “Hot Plug” capability
Power Supply 5 VDC via S5 backplane bus, maximum of 3 A
Operating / Storage temperature 0 °C … +60 °C / -20 °C … +70 °C
Relative Humidity Maximum of 95 % at +25 °C
Required Space 1 slot on SIMATIC S5-115, adapter capsule required
Module Format Double Europa
Configuration software NetCon S5 for Windows
Compatibility Compatible to each other, so that existing parameterization can be taken over directly when a change is made

Références

ATV-200-4000-01 S5-TCP/IP 100

Scope of Delivery

Hardware S5-TCP/IP 100, Ethernet interface for SIMATIC S5
Software Configuration Software NetCon S5
Documentation printed quick reference, manual on CD-ROM

Additional Products and Services

ATV-700-1700-01 PLC cable for S5-CP/PLC (short connection cable) for programming the SIMATIC S5 via Ethernet
ATV-700-1500-05 EIA-232 / TTY converter cable for serial parameterization
ATV-700-2400-02 CompactFlash Card, 128 MB
ATV-110-1000-01 Training “Industrial Ethernet – Troubleshooting in Automation“, 3 days
ATV-100-1030-01 Training “OPC Plug & Play in Automation”, 2 days Basics, OPC communication with S5/S7 controllers and OPC Client

Accessories

CF Card
  • For additional Backup of the Parameterization
  • Hot Plug Capable
  • 128 MB

Order Number

ATV-700-2400-02

RS232 / TTY cable
Cable for Serial Parameterization of the S5-TCP/IP 100

Technical Details

  • For Serial Parameterization
  • RS-232, 9pin D-sub Female – TTY (20 mA), 15pin D-sub Male
  • Length: 5 m

Order Number:

ATV-700-1500-05

Câble PLC S5 <-> CP/PLC
  • TTY, 15pin D-sub Male – TTY, 15pin D-sub Male
  • Longueur: 0,6 Metre

Référence

ATV-700-1700-01
