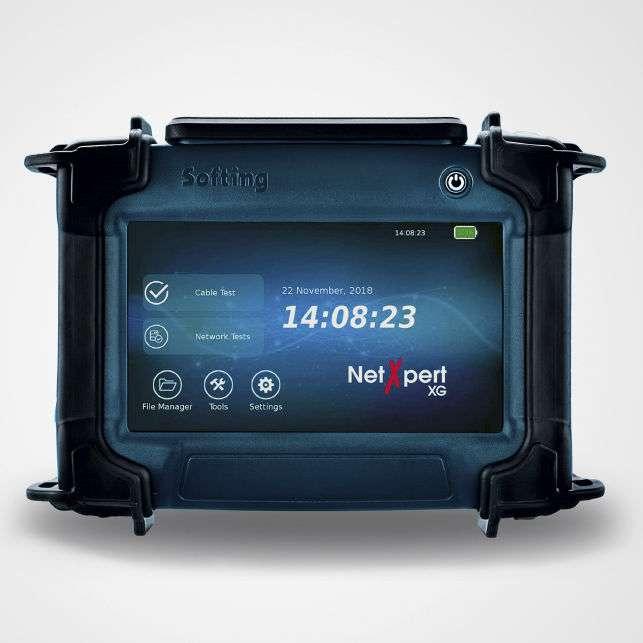

Certificator : NetXpert XG2
Connection
NetXpert XG jusqu’à 10 Gbit/s
Certificateur de débit Ethernet
Qualificateur réseau/Câblage
Teste toutes les connexions de câbles, affichage graphique avec indication de court-circuits.
Teste réseau PoE, Linkconnectivity, LLDP, Ping et DHCP
Qualification de connectivité IEEE jusqu’à 10 Gbit/s avec la technologie BERT, SNR et Delay Skew (délai de propagation)
Support Cuivre et Fibre – Malette rigide
Poids : 4 Kg – HS Code : 90318080
Description
NetXpert XG2 : Test, verify and certify your Ethernet Network . let Garanty the speed on your cable.
NetXpert: the ultimate solution
The speeds of “Wireless Access points” often exceed the speeds of cabling installed in the network. Is it possible that your cables handle speeds well beyond their specifications? Is it possible that your CAT5e or CAT6 cables can reach speeds of 1GBits/S or even 10Gbits/s?
To find out, a simple function on the NetXpert XG2 allows you to perform 3 tests. Performs a speed test by sending 1Gb/s of data via your cable (BERT Test) and it will prove if it will perform beyond specifications and follow the speed of the installed “Access Points”
The NetXpert is the only cable tester and active network manager to perform Bit Error Rate Test (BERT), Signal to Noise Test (SNR) and Speed Delay of 1Gb/s, 5Gb/ s or 10Gb/s at the touch of a button. You can now perform real-time throughput tests to validate your cables up to 10Gb/s.
Test error rate, noise and propagation delay instantly
By performing a bit error rate test (BERT) and according to IEE802.3an standards, the NetXpert XG certifies you or not, error-free data transmission up to 10Gb/s
One-touch self-test includes Signal-to-Noise Ratio (SNR) and Time Offset, which can have a significant impact on Gigabit transmission
The signal-to-noise ratio verifies that the noise is low enough and the signal is high enough for reliable transmission. “Propagation delay” indicates an offset between wire pairs. Excessive delay can cause serious degradation of transmission and therefore performance.
The 3 basic measurements to determine whether a transmission is reliable or not can be done with just one touch. Once the measurement is done, you can repeat it immediately using this unique function. Each measurement is archived and provided with a final summary report in PDF, CVS or XML format
Dépannage du réseau actif PoE++
Lors de dépannage de réseaux actifs PoE++ , le NetXpert XG offre une série de mesures exhaustives. Cela inclut le test de charge pour vérifier la perte de tension et assurer ainsi une stabilité de l’alimentation PoE, l’identification des appareils connectés au réseau et la détection de la disponibilité d’appareils prioritaires.
Le NetXpert XG offre un espace de stockage interne suffisant pour de gros projets et génère des rapports de test complets conformément aux normes en vigueur. Sa large gamme d’accessoires fait du NetXpert XG l’outil de qualification incontournable – de la localisation individuelle de câble et son générateur de tonalité intégré ou bien ses bouchons d’identifications en passant par la génération de rapports de mesure et le dépannage de réseaux PoE++.
The cable qualifier that is defining a new category — the cable project qualifier
If you are a cable installer, network owner, network builder, or system integrator, you’ll be excited to hear that NetXpert XG includes a project editor and auto test generator for up to 1000 cables, and test reports you can keep for your records or leave with your customer. Once the tests are created, plug in the cable, click test, and NetXpert XG starts testing the cable to IEEE 802.3 standards to prove the speed of your cable. Not only do you get a wiremap and cable length, NetXpert XG tests BERT, SNR, Delay Skew, distance to opens, shorts, or miswires. As a bonus you get active network tests for copper, fiber, and wireless. And, with 2 NetXpert XG local units, you can test fiber cables.
Cable Project Qualifier
- Use the project editor, cable test editor, test label editor to pre-configure your cable testing projects
- Press test to automatically sequence up to 1000 cable tests from the local or remote device to increase cable testing efficiency when working alone
- Test data cabling for IEEE 802.3 compliance at data rates up to 10 Gb/s (BERT)
- Determine signal-to-noise ratio (SNR) for compliance up to 10 Gb/s
- Measure delay skew for compliance up to 10Gb/s
- Measure length of cable with TDR and capacitance measurements for highly accurate test results and easier troubleshooting
- Full-color wire map shows distance to open, distance to short, miswires, split pairs, and shield on a color graphical display
- Save test results and generate standards-based measurement reports providing “Pass/Fail” indication in pdf, csv, or xml format
Perform active network management
- Support for IPv4 and IPv6
- Discover your network and see the connected network devices
- Identifies defective PoE switches with a PoE load test
- DHCP test
- Ping lists can be defined and saved for later use
- LLDP/CDP detection and analysis
- Identifies VLANs present in your network
- Data transfer from the tester to the PC using USB stick, wireless, or bluetooth connectivity
| Length Measurement Technology | Time-Domain Reflectometry (TDR) and capacitance |
| Cable Measurements | Cable Testing and ID: up to 1,000 ft (305 m) Split Pair Detection: 3 ft (1 m) to 1,000 ft (305 m) Length Measurement: 0 to 1,500 ft (457 m), ± (5%+1ft (30 cm)) Distance to fault: 0 to 656 ft (200 m) ± (5% + 3ft (1m)) Supports 8 wiremap remotes (RJ 45) and 24 RJ-45 ID only remotes |
| Power over Ethernet (PoE) | Test supports IEEE 802.3af PoE (Type 1, max 15.4W), IEEE 802.3at PoE+ (Type 2, 30W) and 802.3bt PoE++ (Type 3, 60W) Future proofed for IEEE 802.3bt Type 4 100W higherpower PoE |
| Active Ethernet | Network and test support by interface: Copper RJ-45 interface –100/1,000/2,500/5,000/10,000 Mb/sec link speeds Fiber SFP+ #1 interface supports 10Gb/sec link speed Fiber SFP+ #2 interface supports 1Gb/sec link speed WiFi 802.11 a/b/g/n 2.4 Ghz WiFi and Bluetooth |
| Maximum Voltages | Maximum voltage that can be applied to any 2 connector pins without causing damage to the tester: RJ-45: 60 VDC or 50 VAC |
| Save Test Results | Stores virtually unlimited cable or network tests with user defined names per project |
| Tone Generation | Tone Frequencies: 730 Hz and 1440 Hz |
| Languages | English, German, French, Spanish |
| Battery | Li-Ion, 7.2 VDC, 3.1A-hr (typical) Battery Life at 10Gb: 5 hrs minimum, 24 hrs stand-by |
| Temperature | Operating: 14 to 140° F (-10 to 60°C) Storage: -22 to 158°F (-30 to 70°) |
| Humidity | 10 to 90% non-condensing |
| Enclosure | Injection molded plastic |
| Display | 7″ Color TFT-LCD capacitive touch display, 1024 x 600 resolution (WSVGA) |
| Size | 245 x 177 x 73 mm (main unit) 130 x 177 x 55 mm (Active Remote) |
| Weight with Battery | 2.6lbs (1.2 kg) main unit 1.3lbs (0.6 kg) Active Remote |
Documents :
|
|
 |
 |
|
|
|
Features |
NetXpert XG |
NetXpert XG |
NetXpert XG |
NetXpert XG |
|
Active network test on Copper |
 |
|
|
|
|
Passive qualification test on Copper |
|
|
|
|
|
Active network test on Fiber Optic (SM/MM) |
|
|
|
|
|
Passive qualification test on Fiber Optic (SM/MM) |
|
|||
|
Maximum speed: |
10Gbps |
10Gbps |
5Gbps |
1Gbps |
|
Mainframe unit: |
2 |
1 |
1 |
1 |
|
Active remote unit: |
1 |
1 |
1 |
1 |
|
Upgradeable to NetXpert XG – 2.5/5G |
|
|||
|
Upgradeable to NetXpert XG – 10G |
|
|
||
|
Upgradeable to NetXpert XG – PLUS |
|
|
|
|
|
Compatible with Fiber Microscope |
|
|
|
|
|
Compatible with Cable Probe (CP15) |
|
|
|
|
|
Compatible with ID remote identifiers |
|
|
|
|
|
Compliant to IEEE 802.3an Standards to support up to 10Gbps |
|
|
|
|
|
Compliant to 802.3af/at/bt to support PoE/+/++ testing |
|
|
|
|
|
Compliant to Wi-Fi 802.11a/b/g/n/ac to support Wi-Fi. |
|
|
|
|
|
Generate graphical PDF reports |
|
|
|
|
