Ethernet IP / Profibus DP Gateway

Connection

Ethernet/IP -> PROFIBUS DP Gateway –  Support on  PROFIBUS DP Segment

epGate DP Gatway – HS Code: 85176200

Poids : 0.400 kg



Description

Ethernet/IP Profibus DP Gateway : To connect your Profibus DP slave to your Ethernet/IP Network

epGateDP : Gateway with a simple connection of PROFIBUS DP slave devices to Ethernet/IP control systems via internal mapping

With epGate DP gateway, you can integrate a PROFIBUS DP segment into Ethernet/IP control systems. With epGate DP, engineering costs can be reduced because it reuses the existing PROFIBUS DP segment without modifying it. It allows the configuration, parameterization and management of the assets of the installation using standard industrial tools.

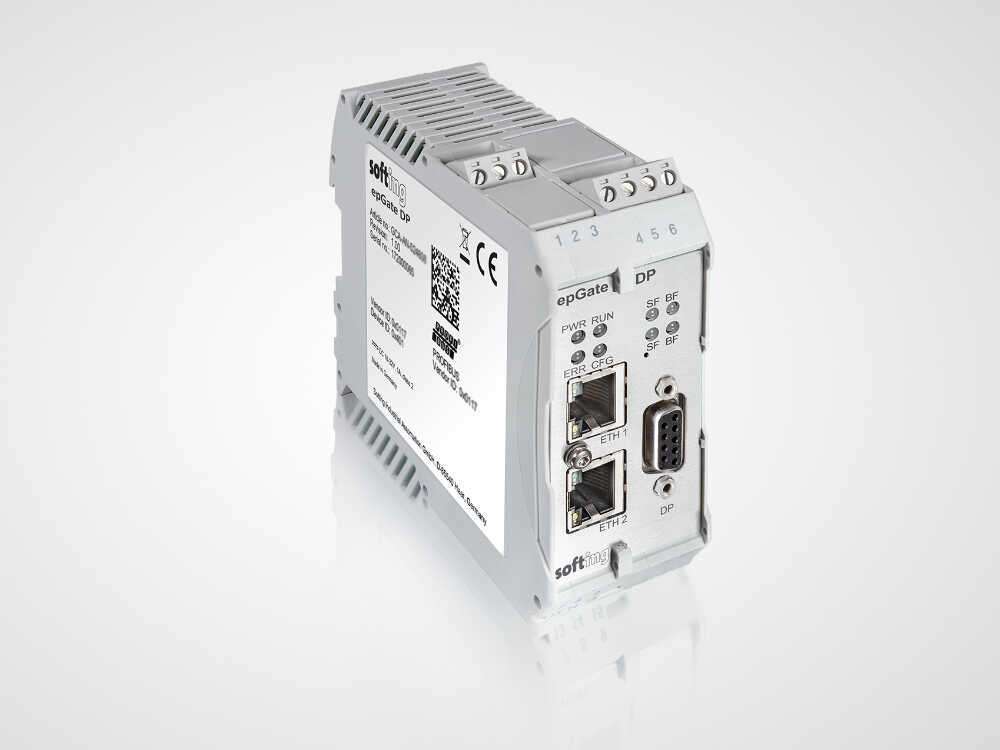

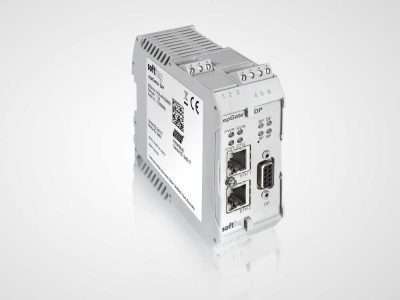

epGate DP

Configuration, Parameterization and Plant Asset Management Using Standard Industry Tools

  • Supports major EtherNet/IP engineering tools such as Studio 5000 and AMS Device Manager
  • Included CommDTM allowing use in FDT/DTM frame applications
  • EDD-based device parametrization using Siemens Simatic PDM

Direct Connectivity to PROFIBUS Segments

  • Single access point to PROFIBUS DP segment from EtherNet/IP networks
  • Acting as EtherNet/IP device (adapter) and PROFIBUS DP master
  • Support of one PROFIBUS DP segment

Key component of the transition to advanced technologies

  • Reuse of existing PROFIBUS segments without modification
  • Support for common control systems, e.g. Emerson DetlaV or Rockwell Control Logix
  • DLR support for redundant communication in the ring with EtherNet/IP
  • Data Sheets

  • Drivers & Software : ( All downloads available here….)

    • Communication Configuration Tool Windows
    • Search and Configure Discovery Tool v2.00
    • PACTware
    • Librairie PDM pour l’intégration des PDM Siemens
    • PROFIdtm V2.24 | for usage in FDT frame applications
  • Manuals & Documentation  ( All downloads available here….)

    • Communication Configuration Tool User Guide
    • epGate PA/PB/DP V1.11 | User Guide
Livraison
HardwarePasserelle epGate DP
Documentationsur notre site Web
Références
GCA-CN-024706epGate DP, EtherNet/IP to PROFIBUS DP Gateway. Supports 1 PROFIBUS DP segment (RS485).
Additional Products and Services
LRL-DY-134501dataFEED OPC Suite, Version 4.01 and higher, including all supported PLC protocols, support for OPC UA, access for any number of dataFEED OPC Tunnel Clients, for simultaneous access to a total of up to 100 OPC UA Servers, OPC Servers and OPC Tunnel Servers, and many more Functionalities such as Database and File Access, Data Exchange, Optimizer, Concentrator and Bridge
GCA-CN-024708epGate PB, EtherNet/IP to PROFIBUS Gateway. Supports 2 PA segments (up to 32 PA devices, MBP physical layer) and 1 PROFIBUS DP segment (RS485).
GCA-CL-024702epGate PA, EtherNet/IP to PROFIBUS PA Gateway. Supports up to 2 PA segments (up to 32 PA devices).
GCA-CL-024704epGate PA, EtherNet/IP to PROFIBUS PA Gateway. Supports up to 4 PA segments (up to 64 PA devices).
