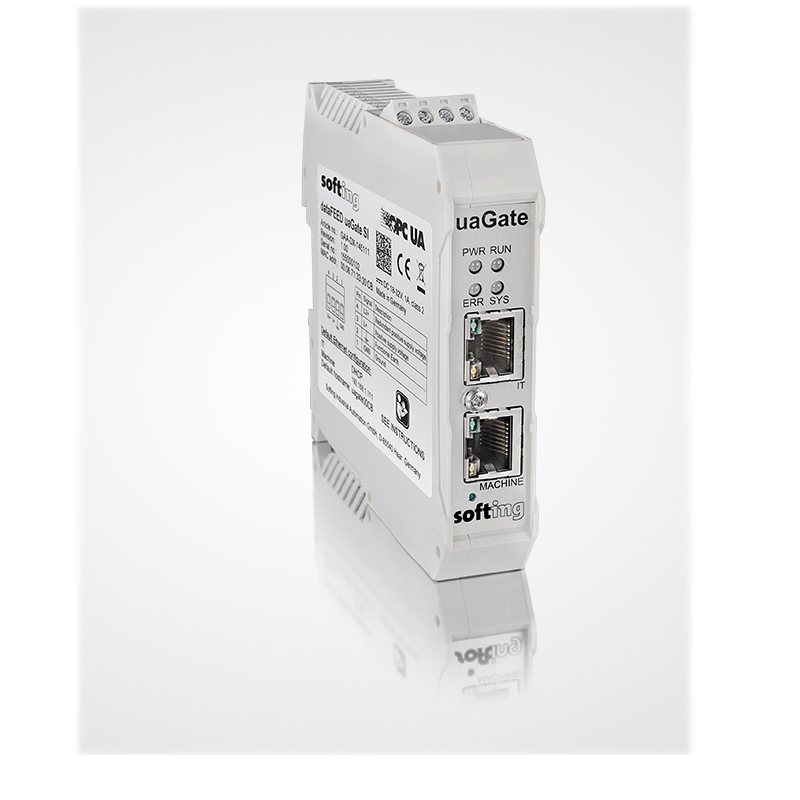

dataFEED uaGate SI

Connection

Read and write access to SIMATIC S7-300, S7-400, S7-1200 and S7-1500 controllers, Access to Siemens PLC Data from OPC UA Applications, No PLC programming or dedicated PC required

HS Code: 85176200
Weight: 0.250 kg

SKU: ATV-GAA-DX-145111 Categories: , , , , , Tags: , ,

Description

OPC UA Server & MQTT Publisher Gateway for SIMATIC S7 Controllers

Access Siemens PLC Data & integrate data with OPC UA in higher level management systems

uaGate SI makes data integration easier than ever before. The gateway supports the connection of SIMATIC S7-300, S7-400, S7-1200 and S7-1500 controllers from Siemens and uses the OPC UA standard for a simple and secure data integration of new and existing plants in higher-level management systems, such as ERP, MES or SCADA systems.

In addition, uaGate SI also offers MQTT Publisher functionality, enabling direct integration of PLC data into private or public IoT cloud applications on the IT side. The generic MQTT implementation supports the use of a large number of different cloud providers. Similar to the OPC UA standard, MQTT also supports various security mechanisms such as encrypted connections, certificates and user authentication, thus contributing to a high level of data security.

uaGateSI_application_EN_1180px

Access to Siemens PLC Data from OPC UA Applications

  • Read and write access to SIMATIC S7-300, S7-400, S7-1200 and S7-1500 controllers
  • Support of optimized data blocks in SIMATIC S7-1200 and S7-1500 controllers
  • Integration of higher-level management systems like ERP, MES or SCADA using integrated OPC UA Server providing open, platform-independent and market-proven communication
  • Easy local and global access to field data and routing through firewalls
  • Especially dedicated to retrofit upgrades, thus protecting former investments
  • No need for software updates, operating system patches and PC updates resulting in years of failure-free operation
  • No PLC programming or dedicated PC required

Optimized for Siemens Integration

  • Symbolic name import from Siemens TIA Portal and SIMATIC STEP 7 projects
  • Namespace configuration by browsing of SIMATIC S7 1200/1500 variables
  • Easy setup of OPC UA Server requiring only a few steps for accessing Siemens PLC data
  • Web interface for gateway configuration

Industry-proven Security

  • Physically separated interfaces and separate configuration rights for OT and IT networks preventing intrusions
  • Supporting security standards as SSL/TLS and X.509 certificates
  • OPC UA compliant data encryption and user authentification
  • Security supported for MQTT communication with private and public clouds

 Free Download

  • White paper,

Connected  Download

    • User Manal
    • Firmware
Scope of Delivery
HardwareuaGate SI
SoftwareTool for configuration over integrated web interface
DocumentationQuick Startup Guide (printed documentation)



Order Numbers
GAA-DX-145111uaGate SI

Howto configure uaGate SI with SIMATICS S7 Controller with Optimized access

Howto connect uaGate SI with an OPC UA Client
