DATAEAGLE 4000 Series – WIRELESS PROFINET

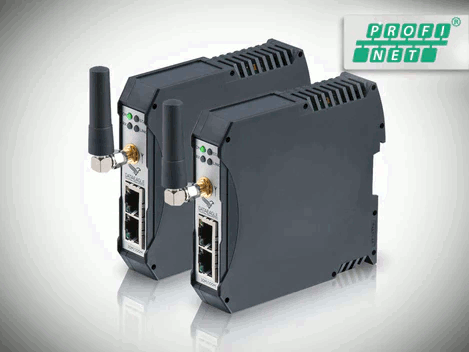

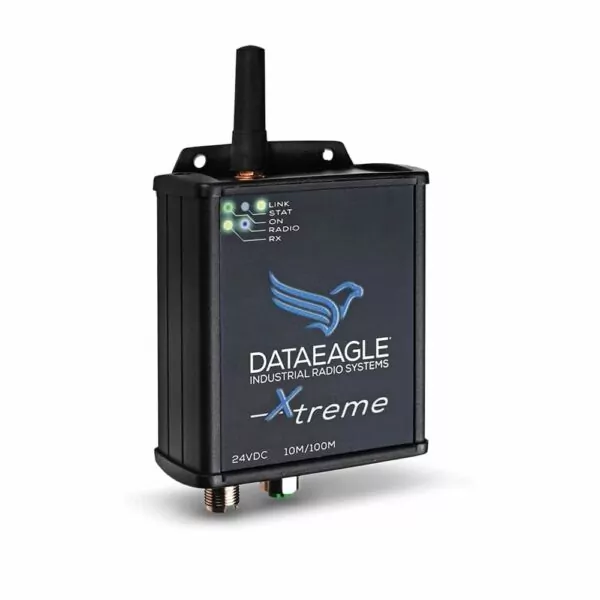

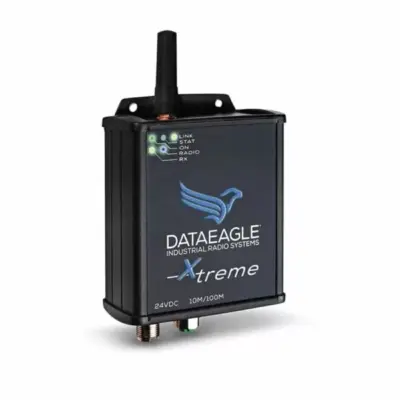

dataEAGLE 4000 Series

DATAEAGLE 4000 – Wireless PROFINET

Our DATAEAGLE 4000 product line has been specially developed for the implementation of Wireless PROFINET. With its patented filter technology, this wireless 4000 series ensures an optimal, reliable wireless connection and is versatile in its application. See for yourself!

Wireless PROFINET – In practice

As a rule, sensor and application data from machines in the field level are transmitted to a control system for use. If this has to be done wirelessly in view of moving parts – e.g. in sewage treatment plants or with cranes – radio connections are used which are aligned with the field bus used in each case: The modules of the DATAEAGLE 4000 series “speak and understand” PROFINET with or without PROFIsafe support. The patented data pre-processing integrated in the module, including a filter function, achieves a particularly high level of system availability.

Wireless solutions from Schildknecht can be replaced 1:1 with existing cables – without any changes to the machine. The exchange can be carried out quickly and easily by a company electrician, extensive adjustments or new certifications are not necessary. With DATAEAGLE, no integration of data transmission into the hardware configuration is necessary. The device description files GSD (PROFIBUS) or GSDML (PROFINET) do not have to be changed and the “cable” configuration can be retained. You still encounter questions during installation? Then the Schildknecht commissioning guarantee will help!

The DATAEAGLE 4000 series was developed especially for the transparent transmission of PROFINET IO by utilization of diverse radio technologies.

Suitable for applications in indoor and outdoor applications. The high degree of protection enables use under extreme conditions.

The use of our patented filter technology guarantees a highly reliable and error-free radio link.
All devices with a PROFINET IO interface can be connected via radio. No device configuration necessary ? Plug&Play.

Safety related devices are supported with the DATAEAGLE 4712 Series through PROFIsafe for PROFINET IO.

The range depends on the radio technology used and the conditions of the surroundings.
Typical parameters include a range of 100m ? 300m (47xx) or 1km ? 3km (431x).

Thousands of applications are already successfully in use.

TECHNICAL DATA – DATAEAGLE COMPACT 4000 Series

PROTOCOLPROFINET
VOLTAGE SUPPLY24 V DC
CONNECTION VOLTAGE SUPPLYTerminal clamps
POWER CONSUMPTION150 mA
MOUNTINGDIN rail mounting
CONFORMITYCE, FCC
IP RATINGIP20
TEMPERATURE RANGE-20…+60 °C
FREQUENCY2,4 GHz
MAXIMUM NUMBER OF RADIO SLAVES4
TYPICAL DISTANCE (M)300
MAXIMUM PROFINET TRANSMISSION RATE100 MBit/s
INTERFACE PORTRJ 45 /  M12
MAXIMUM NUMBER OF PROFINET DEVICES6
PROFISAFEYes
INTEGRATED SWITCHYes
  • 100m – 300m (4710-A Series)
  • 1km – 3km (4300-A Series)
  • Supports PROFIsafe
  • Protection Class: IP 65

Application examples

  • Replacement of conductor lines
  • Replacement of trailing cable / cable chains
  • Replacement of optical coupler
  • Cranes / crane systems
  • Storage systems
  • Transport vehicles
  • Water, sewage and raw materials management
  • Machine construction
  • Lifts / Elevators
  • Automotive industry
