Ateva Technologies

PROFIBUS CONNECTOR 90° Screw

The PROFIBUS connector 90° diagnostics LED is equipped with a proven and reliable screw terminal.

It is quickly mounted and has integrated, connectable terminating resistors.
For improved EMC compatibility, the housing of the plug is metalized.
Using the PROFIBUS connector diagnosis, a PROFIBUS network can be established in which the user can at any time check the state of the bus system at a glance.
The three built-in LEDs with the easily distinguished colors blue, green, and orange indicate the most important states of the PROFIBUS network at each station. The state of the terminating resistor (orange), whether bus activity is present (green), and whether the addressed participant is participating in the bus traffic (blue) are displayed.
In this way you can immediately recognize error states such as bus interrupts, missing or incorrectly connected terminating resistors, and malfunctioning or failed bus participants.
The PROFIBUS connector works in the extended ambient temperature range of -25 °C to +85 °C.



Exit on 2 versions : WITH PG and WITHOUT PG

  • 3 status LEDs to indicate “bus operation,” “participant is sending,” “terminating resistor inserted”
  • Metalized housing
  • No parts that can be lost
  • Integrated switchable terminating resistor
  • 90° cable outlet
  • Proven screw terminal
  • The PROFIBUS connectors are also available in packs of 10 or 50
  • The maximum ambient temperature for UL is +60 °C
General information
Order number700-972-7BA12
Article namePROFIBUS connector, 90° screw terminal, diagnostics LED, without PG
Scope of deliveryPROFIBUS connector, installation instructions
Dimensions (DxWxH)64 x 40 x 17 mm
WeightApprox. 40 g
Cable outletVertical cable outlet, suitable for FastConnect stripping tool
PROFIBUS interface
Number1
Transmission ratemax. 12 Mbps
ConnectionSUB-D connector, 9-pin
Terminating resistorResistor combination integrated and switchable using slide switch
PG connection socketNo
PROFIBUS bus cable60/75 °C copper cable up to 1.0 mm2
Connector
Connector typeterminal strips
Number4
Maximum outside diameter8.0 mm
Status indicator1 LED, 3-color
Voltage supply+ 4.75 … + 5.25 V DC (must come from the device)
Current draw without modules (internal)Max. 35 mA
Ambient conditions
Ambient temperature-25 °C … +85 °C( The maximum ambient temperature for UL is +60 °C.)
Transport and storage temperature-25 °C … +85 °C
Relative air humidity70 % at +25 °C
Pollution degree2
Protection ratingIP20
CertificationsCE, UL
CE
RoHSYes
REACHYes

Product Reference

  • PROFIBUS connector, 90°, screw terminal connector, with diagnostics LED, without PG, incl. installation instructions : ATV-700-972-7BA12
  • PROFIBUS connector, 90°, screw terminal connector, with diagnostics LED, with PG, incl. installation instructions :       ATV-700-972-7BB12

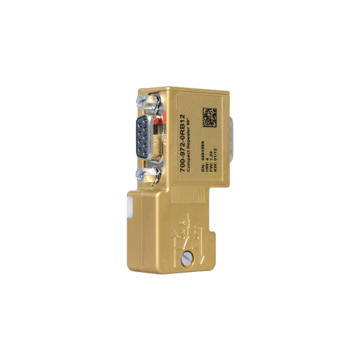

répéteur PROFIBUS Compact

PROFIBUS compact répéteur

Le répéteur compact breveté PROFIBUS, est un répéteur PROFIBUS complet qui est polyvalent de par sa très petite taille. Il permet des taux de transfert de 9,6 kbps à 12 Mbps



  • Bonne alternative aux répéteurs PROFIBUS conventionnels
  • Pas d’espace supplémentaire requis dans l’armoire de commande
  • Peut être utilisé pour l’extension de bus ou comme ligne de dérivation
  • Augmente le nombre d’esclaves
  • Il étend votre réseaux PROFIBUS facilement
  • Peut aussi être utilisé sur le réseau MPI
  • Status LEDs
  • Pas d’alimentation 24V nécessaire
  • Alimentation 5v directement depuis le terminal PROFIBUS, ce qui le rend utile pour chaque esclave PROFIBUS

La transmission des signaux est regénérée par le répeteur et renvoyé (bit-reshaping and retransmission)  ce qui élimine bon nombre de fautes. Le “PROFIBUS Compact répéter” est une alternative  aux répéteurs conventionnels, pour bon nombre d’applications, par le cout et par la technicité utilisé. Il peut être utilisé pour l’extension d’un bus PROFIBUS ( jusqu’à 1 km avec 2* PROFIBUS  Compact Repeters, afin d’accroitre le nombre d’esclaves et d’étendre le système.

Utilisation possible sur le port MPI. Comme application bien spécifique, le “PROFIBUS Compact repetear” permets l’établissement de segments bien délimités. Pour cela, il peut être connecté sur le port PG, d’une connexion PROFIBUS

En raison de son design compact, aucun espace supplémentaire n’est nécessaire. Il peut être utilisé à la place de connecteur PROFIBUS “classic”. De plus, aucune alimentation n’est nécessaire. Un système de LEDs permet de voir l’état du réseau instantanément.

General information
Order number700-972-0RB12
Article namePROFIBUS compact repeater
Scope of deliveryPROFIBUS compact repeater, instructions
Dimensions (DxWxH)64 x 40 x 17 mm
WeightApprox. 40 g
PROFIBUS interface
Number1
ProtocolPROFIBUS-DP
Transmission rateMax. 9.6 … 12 Mbps, autom. detection
ConnectionSUB-D connector, 9-pin
Cable outlet90 °

Réference produit : ATV-700-972-0RB12

Industrial Ethernet Connector

Industrial grade RJ45 Connector for your Industrial Ethernet Applications

Industrial RJ45

The industrial-grade metal housing provides the necessary ruggedness so that the plug can be used in many industrial applications.
To save the user time in wiring, the RJ45 connector can be assembled in a single step using the fast connection technology EasyConnect®. Solid single wires and strands can be used. The color-coded contact elements also help avoid connection errors. In addition, the RJ45 connectors are designed in protection class IP20 and for transmission rates up to 1000 Mbps.

  • Color-coded contact elements help to avoid connection errors
  • Transmission rates up to 1000 Mbps
  • Tool-free installation
  • EasyConnect® RJ45 connection (IDC) for industrial applications
  • Suitable for cables up to Cat.6
  • 180° axial cable outlet
General information
Order numberATV-HZ-700-901-1BB12
Article nameIndustrial ethernet connector, RJ45, EasyConnect®, 180°
Scope of deliveryIndustrial ethernet connector, installation instructions
Dimensions (DxWxH)14 x 16 x 56 mm
WeightApprox. 30 g
Ethernet interface
Number1
ProtocolEthernet
Transmission rate10/100/1000 Mbps
ConnectionRJ45 socket
Connectors
Cable outlet180°
Connector typeEasyConnect®
Connectible cablesIndustrial ethernet cable 8 pin, up to Cat.6
Cable cross-section8 x 24 AWG
Maximum outside diameter8 mm
Ambient conditions
Ambient temperature-20°C … +70°C
Transport and storage temperature-40 °C … +80 °C
Relative air humidity95 % r H without condensation
Pollution degree2
Protection ratingIP20
CertificationsCE, UL
CE
RoHSYes
REACHYes

Référence produit :  ATV-HZ-700-901-1BB12

Memory card S7-1200/S7-1500

Memory Cards for S7-1200/S7-1500

S7 Memory Card S7-1200 S7-1500

The memory card for S7-1200*/S7-1500* controllers of Siemens AG.

Available with 4Mb / 12 Mb/ 24 Mb /256  Mb and 2 Gb

General information
Article nameMemory Card, for S7-1200/S7-1500 series
Scope of deliveryMemory Card
Storage volumedepending on size selected
Application OptionsCPU 1200
CPU 1500

Reference Order :

  • 24Mb :    700-954-8LF03
  • 256 Mb : 700-954-8LL03
  • 2 Gb :     700-954-8LP03
