Serveur : dataFEED Secure Integration

Intégration IT/OT : Solution Sécurisée et fléxible basée sur l’OPC UA

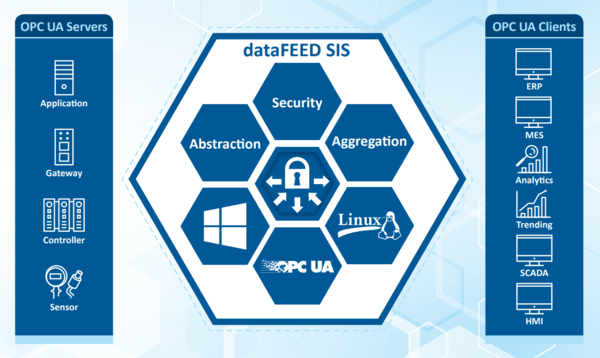

dataFEED Secure Integration Server provides a powerful OPC UA data integration layer. Based on the OPC UA aggregation server users implement flexible solutions combining the various OPC UA Servers at automation level with their associated address spaces and making the data available to IT applications via a consistent OPC UA interface. dataFEED Secure Integration Server covers the full range of OPC UA security features and enables the implementation of state-of-the-art security solutions.

The interface abstraction of dataFEED Secure Integration Server enables continuous adaptation and scaling of OPC UA-based IoT solutions throughout their entire lifecycle. Users gain a high degree of flexibility and at the same time significantly reduce integration and configuration costs.

Secure Communication

  • Support of all safety functions of OPC UA standard
  • Provide different data for different users and applications
  • Support for multiple OPC UA Endpoints (client or server), each with its own certificates
  • Filtered access, depending on IP address (White List / Black List for OPC UA Endpoints)
  • Detection of DoS (Denial of Service) attacks on OPC UA authentication

Data Aggregation

  • Aggregation of data from multiple sources in a server (aggregation of OPC UA Namespace)
  • Application access to aggregation servers, not to many individual data sources
  • Extensive and flexible OPC UA Service-based address space filtering, down to OPC UA Item level
  • Reduced configuration effort (Configuration not required individually for each OPC UA data source and each OPC UA Client)

Interface Abstraction

  • Common, stable OT interface for different IT applications
  • Adaptations in automation network transparent for IT applications
  • Easy integration of IT applications with standard OPC UA Clients in different OT environments
  • Decoupling of investment decisions in IT and OT environment

Solutions for Edge Architectures

  • Edge solution with features and benefits identical to those resulting from using central cloud platforms
  • Running local clients (e.g. for edge analytics) in parallel with cloud-based applications
  • Start with small IoT solution on cloud basis, later adaptation and expansion over time possible
Key FunctionalityOPC UA Aggregation Server
OPC UA Namespace aggregation, 50 virtual namespaces maximum
OPC UA Server with up to 25 OPC UA Server endpoints, 50 users per endpoint, separate application certificate per endpoint
OPC UA Client with up to 100 connections to OPC UA Servers, separate application certificate per OPC UA connection
Up to 500,000 data changes per second
Supported OPC SpecificationsOPC Unified Architecture V1.03
OPC RolesOPC UA Client, OPC UA Server
OPC UA ProfilesData Access, Complex Data, Methods
OPC UA TransportTCP Transport, UA Binary Encoding, UA Secure Conversation
HTTPS Transport, UA Binary Encoding
OPC UA SecuritySecurity methods:
Aes256Sha256-RsaPss
Aes128SHA256-RsaOaep
Basic256Sha256
Basic256
Basic128Rsa15
NoneAuthentification:
Anonymous
user name and password
certificate
OPC UA FirewallOPC UA Service-based address space filtering, down to OPC UA Item level
Limitation of OPC UA Client conncetions
Restriction of OPC UA services
IP access filter (White List/Black List)
Detection of denial of service (DoS) attacks on OPC UA authentication
OPC CertificationTest based on compliance test tools of OPC Foundation
Operation ModeWindows service
Logging, DiagnosticsDetailed system and test logging
Test tools: OPC UA .NET Demo Server, OPC UA Demo Client
Supported Operating Systems64 Bit operating systems only
Windows 7, Windows 8.1, Windows 10, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
Linux on demand
LicensingRuntime license per computer
Single Seat License
LRL-DY-140001dataFEED Secure Integration Server, version 1.01, single seat license for up to 10 OPC UA connections,
including maintenance and support contract for 1 year
LMA-DY-140001dataFEED Secure Integration Server maintenance and support contract for 1 year, for up to 10 OPC UA connections
LRL-DY-140004dataFEED Secure Integration Server, version 1.01, single seat license for up to 100 OPC UA connections,
including maintenance and support contract for 1 year
LMA-DY-140004dataFEED Secure Integration Server maintenance and support contract for 1 year, for up to 100 OPC UA connections
Use License
LRL-DY-141001dataFEED Secure Integration Server, version 1.01, use license for up to 10 OPC UA connections,
including maintenance and support contract for 1 year
LRL-DY-141004dataFEED Secure Integration Server, version 1.01, use license for up to 100 OPC UA connections,
including maintenance and support contract for 1 year

Scope of Delivery

SoftwareLicense key for dataFEED Secure Integration Server, link for software download
DocumentationOnline help in English

Additional Products and Services

LRL-DY-134501dataFEED OPC Suite
GAA-DX-145111uaGate SI
GAA-YE-145133uaGate MB
100-1030-01Training ”OPC Server and Client in Practice”
