Switches administrables

Ethernet IP – IEN-8648A-EIP

Switch managed, Ethernet/ip avec 8* RJ45 10/100/1000, 4* FX/Gbe SFP

IEN-8648A-EIP | Ethernet/IP
  • Ethernet/IP

Hardware Features

8 x 10/100/1000 RJ45
4 x  FX/GbE SFP
1 x  USB port
IP30 Aluminum housing
EtherNet/IP Approval

Product Highlights

• Ethernet/IP approval for safe and reliable industrial applications
• EMS, ESD, Surge & Burst Protection
• Shock, Freefall and Vibration Proof
• MDI/MDI-X for plug-and-play
• Xpress Ring connectivity for a scalability
• Redundant Power Input & Relay Output Alarm
• SNMP v1/v2c/v3 and RMON for device management
• STP, RSTP for recovery in milliseconds and Dual Homing
• Traffic and Storm Control with QoS, IGMP Snooping for filtering traffic
• Operating temperature range between -40°C to 75°C
• USB Support for configuration and to save backups



Général

Volktek’s Ethernet Industrial Protocol (EIP) certified IEN-8648A-EIP is a Managed Industrial switch equipped with 8 port 10/100/1000BASE-T, 4 Gigabit SFP slots and 1 USB slot. Assembled with hardened components and enclosed in a rugged aluminum case, the switch sustains severe industrial conditions, it operates between extreme temperatures of -40°C to 75°C and is highly tolerant to high vibration and shock.

Because of its particular software features, EIP switch is a real time saver. It can be quickly upgraded and its configurations can be saved by inserting a USB flash drive into its USB slot without the need of computers or on spot technicians. The EIP certified switches enable the real-time communication for automation control, by converging different floor networks with diversified procedures and tools into one.

Détails techniques

Standards
IEEE 802.310BASE-T
IEEE 802.3u100BASE-TX
IEEE 802.3ab1000BASE-T
IEEE 802.3xFlow Control
IEEE 802.3adLink Aggregation
IEEE 802.1abLLDP
IEEE 802.1DSTP
IEEE 802.1wRSTP
IEEE 802.1sMSTP
IEEE 802.1pClass of Service
IEEE 802.1QVLAN Tagging
IEEE 802.1XPort Authentication
Interface
Ports8 x 10/100/1000BASE-T RJ45 Ports
4 x Gigabit SFP Slots
1 x RJ45 Console Port
1 x USB Port
DIP SwitchPrimary/Redundant Power Voltage Drop Alarm setting
LED PanelPWR, RPS, ALM, POST, 1000, LNK/ACT
Power
Input VoltagePrimary inputs：12~60V DC
Redundant inputs：12~60V DC
Power ConsumptionSystem：18W
Alarm RelayOne relay output, 1 A @ 24V DC
Mechanical and Environment
HousingAluminum (IP30 Protection)
MountingDIN-Rail
Operating Temperature-40°C~75°C
Storage Temperature-40°C~85°C
Operating Humidity5 to 95% RH (non-condensing)
Storage Humidity5 to 95% RH (non-condensing)
Dimension (WxHxD)50x160x120mm (1.97×6.38×4.72inch)
Weight955g

IPGS-5488MGSFP-8 – LANTECH Communication

Switch LANTECH : IPGS-5488MGSFP-8

Switch industriel Administrable :8*10/100/1000T PoE af/at + 8*100M/1G SFP + 4*1G/2.5G SFP w/ L2+ / G.8032 Ring & LTDP**; Alimentation : 12V/48V

IPGS-5488MGSFP-8
  • Le Switch Lantech support IEEE802.3at/af jusqu’à 30W par port; PoE budget 240W(48V) ou 120W (model entrée :12V / 24V)
  • PoE management incluant  Detection et  “Scheduling”
  • Protection “Enhanced G.8032 ring” < 20ms pour un simple anneau. Supporte le  mode auto, mode “amélioré”, le mode “Train”, multi-VLAN et mode basic; Enhanced G.8032 ring couvre  les packets multicast; MSTP 8/16**MSTI /RSTP ; support MRP ring
  • LTDP** (Link Train Discovery Protocol) avec assignation IP automatique et configuration automatique
  • Détection de cablage erroné & Protection node défectieuse
  • Interface WebGUI, incluant la topology automatique ( schéma )  et  monitoring DDM en  dB; Complete CLI
  • Supporte l’aggrégation de liens :LACP, IGMP v3/router port, Serveur DHCP  & DHCP Option82; Distribution DHCP par port,  DHCP par Mac Address, QoS via VLAN**, SSH/SSL, HTTPS, INGRESS/EGRESS** ACL L2/L3,TACACS+, QinQ**, SMS**
  • Protocol basé sur VLAN** ; IPv4/IPv6 Subnet basé VLAN**
  • Monitoring de la température, tension et courant
  • USB port pour sauvegarde, fichier de restauration de la configuration, mise à jour
  • Utilisation en température extrême  (-E model):-40~75C/-40~167F; Design sans ventilateur

Généralité

Lantech IPGS-5488MGSFP is a high performance L2+ (All Gigabit) Ethernet switch with 8 10/100/1000T + 8 100M/1G SFP + 4 1G/2.5G SFP auto-sensing cage w/8 PoE 802.3 af/at injectors which provides L2 wire speed and advanced security function for network aggregation deployment. It delivers ITU G.8032 enhanced ring recovery less than 20ms in single ring. It also supports train ring**, enhanced mode with easy configuration, comprehensive QoS, QoS by VLAN**, advanced security including INGRESS/EGRESS** ACL L2/L3, TACACS+, SSH/SSL, Mac based DHCP server, DHCP Option 82, DHCP server, IGMPv1/v2/v3/router port, QinQ** which are important features required in large network. The Cisco Discovery Protocol (CDP) and LLDP are supported for Ciscoworks to detect the switch info and show on L2 map topology. The enhanced platform allows quick booting up time under 50 seconds.

PoE at/af up to 8 10/100TX Ports with detection and scheduling
Compliant with 802.3af/at standard, the Lantech IPGS-5488MGSFP-8 is able to feed each PoE port up to 30 watt. Lantech IPGS-5488MGSFP-8 supports advanced PoE management including PoE detection and scheduling. PoE detection can detect if the connected PD is hanged then restart the PD; PoE scheduling is to allow pre-set power feeding schedule upon routine time table. Each PoE port can be enabled/disabled, get the voltage, current, Watt, and temperature info displayed on WebUI.

Innovative LTDP** (Link Train Discovery Protocol) to assign proper IP address as well as inherit configuration for replaced Ethernet switch
With port-based DHCP server, LTDP** allows Lantech Ethernet switch series in single ring to discover the current IP addresses and to assign the same IP address and configuration. Furthermore, LTDP** can inherit the same configuration to new replaced Ethernet switch.

Miss-wiring avoidance, Loop protection, Repowered auto ring** restore
The IPGS-5488MGSFP-8 also embedded several features for stronger and reliable network protection in an easy and intuitive way. When the pre-set ring configuration failed or looped by miss-wiring, Lantech IPGS-5488MGSFP-8 is able to alert with the LED indicator and disable ring automatically. Repowered auto ring** restore function (node failure protection) ensures the Ethernet switches in a ring to survive after power breakout is back. The status can be shown in NMS when each switch is back. Loop protection is also available to prevent the generation of broadcast storm when a dumb Ethernet switch is inserted in a closed loop connection.

DHCP option 82 & Port based, Mac based DHCP, Option66, IPv6 DHCP server**
DHCP option 82 and Port based DHCP function can offer the same IP address on port base where there is need to replace the new device connecting to Lantech switches to avoid any network disruption. The built-in DHCP Option 82 server offers the convenience of policy setting on the switch. Mac based DHCP server function assigns an IP address according to its MAC address to include dumb switches in DHCP network. DHCP option 66 is also supported. Optional IPv6 address resolution for DHCP server can be supported.

User friendly GUI, Auto topology drawing
The user friendly UI, innovative auto topology drawing and topology demo makes IPGS-5488MGSFP-8 much easier to get hands-on. The complete CLI enables professional engineer to configure setting by command line.

Enhanced G.8032 ring, 8/16** MSTI MSTP; Optional MRP ring**
Lantech IPGS-5488MGSFP-8 features enhanced G.8032 ring which can be self-healed in less than 20ms for single ring topology protection covering multicast packets. It also supports various ring topologies that covers multi-chain (under enhanced ring), train ring**, basic ring, multiple-VLAN ring** and auto-ring** by easy setup than others. The innovative auto-ring** configurator (auto mode**) can calculate owner and neighbor in one step. It supports MSTP that allows each spanning tree for each VLAN for redundant links with 8/16** MSTI.

Optional MRP (Media Redundancy Protocol) can be supported for industrial automation networks.

QoS by VLAN** for legacy device
QoS by VLAN can allow Ethernet switch to tag QoS by VLAN** regardless the devices acknowledge QoS or not in which greatly enhance the bandwidth management in a network.

QinQ**, QoS QinQ** and GVRP supported
It supports the QinQ**, QoS QinQ**, GVRP for large VLAN segmentation.

IGMPv3, GMRP, router port, static multicast forwarding and multicast Ring protection
The unique multicast protection under enhanced G.8032 ring can offer immediate self-recovery instead of waiting for IGMP table timeout. It also supports IGMPv3, GMRP, router port and static multicast forwarding binding by ports for video surveillance application.

Editable configuration file; USB port for upload/download configuration; InstaView** for mass deployment
The configuration file of Lantech IPGS-5488MGSFP-8 can be exported and edited with word processor for the other Ethernet switches configuration with ease. The built-in watchdog design can automatically reboot the switch when CPU is found dead.

The USB port can upload/download the configuration from/to USB dongle.

With optional InstaView, the configuration files can be mass backup, mass-editable deployed and auto upgrading firmware in batch make maintenance easy.

2DI/2DO for relay contact and event alerting by email & traps
In case of event, the IPGS-5488MGSFP-8 is able to send an email & SMS** text message to pre-defined addresses as well as SNMP Traps out immediately. It provides 2DI and 2DO. When disconnection of the specific port was detected; DO will activate the signal LED to alarm. DI can integrate the sensors for events and DO will trigger the alarm while sending alert information to IP network with email and traps.

Environmental monitoring for Ethernet switch inside information
The environmental monitoring can detect Ethernet switch overall temperature, total PoE load, voltage and current where can send the SNMP traps, email and SMS** alert when abnormal.

Dual power 12V or 48V input; High PoE budget
The Lantech IPGS-5488MGSFP-8 is designed with dual power supply at 12VDC (12V model) for 9.5V~56VDC input and can provide 80W (12V input) or 120W (24V input) PoE budget. The 48V model can support dual power 44VDC~56VDC input and can have 240W PoE budget.

Industrial hardened design with high EFT and ESD protection
Lantech IPGS-5488MGSFP-8 features high reliability and robustness coping with extensive EMI/RFI phenomenon, environmental vibration and shocks usually found in factory, substation, steel automation, aviation, mining and process control. Featured with relay contact alarm function, the IPGS-5488MGSFP-8 is able to connect with alarm system in case of power failure or port disconnection. The IPGS-5488MGSFP-8 also provides ±2000V EFT and ±6000V ESD protection, which can reduce unstable situation caused by power line and Ethernet.

It is the best solution for Automation, transportation, surveillance, Wireless backhaul, Semi-conductor factory applications. The -E model can be used in extreme environments with an operating temperature range of -40°C to 75°C

Fonctions

  • 8 10/100/1000T + 8 100M/1G SFP+ 4 1G/2.5G SFP auto-sensing cage w/8 PoE 802.3af/at injectors L2+ industrial managed Ethernet switch (Total 20 Ports Switch)
  • 12V dual input from 9.5V~56VDC(12V model); 48V dual input from 44V~56VDC (48V model)
  • Back-plane (Switching Fabric): 52Gbps
  • 16K MAC address table
  • DDM to support SFP diagnostic function***
    • Automatically convert the raw data into dB values for TX power/RX power, making it easier to measure the fiber distance
  • 10KB Jumbo frame
  • User friendly UI, auto topology drawing, topology demo, complete CLI for professional setting
  • Enhanced G.8032 Ring protection in 20ms for single ring
    • Support various ring/chain topologies, including train ring**, enhanced ring, basic ring, auto ring** & multiple VLAN ring**
    • Enhanced G.8032 ring configuration with ease
    • Auto ring** configuration(auto mode**) for single ring
    • Cover multicast and data packets protection
  • LTDP** (Link Train Discovery Protocol) with Port based DHCP can assign the same IP address and configuration to replaced switch in a single ring
  • Provides EFT protection ±2000 VDC for power line
  • Supports ±6000 VDC Ethernet ESD protection
  • Supports IEEE 802.1p Class of Service, per port provides 8 priority queues Port base, Tag Base and Type of Service Priority
  • QoS by VLAN** to prioritize all devices in the network
  • IEEE 802.1d STP*, IEEE 802.1w RSTP,802.1s MSTP VLAN redundancy with 8/16** MSTI
  • 4K 802.1Q VLAN, Port based VLAN, GVRP, QinQ**, QoS QinQ**
  • Supports IEEE 802.1ab LLDP, Cisco CDP; LLDP info can be viewed via Web/ Console/ LantechTM InstaView**
  • DHCP server / client / DHCP Option 82 relay / DHCP Option 82 server Port based DHCP server; DHCP Option 66; IPv6 address resolution for DHCP server**
  • Mac based DHCP** server to assign IP address that includes dumb switches in DHCP network
  • Bandwidth Control
    • Ingress packet filter and egress** rate limit
    • Broadcast/multicast packet filter control
  • Relay alarm output system events
  • Miss-wiring avoidance
    • LED indicator
  • Repowered auto ring** restore
    • Ensure the Ethernet switches in a ring to survive after power breakout is back
    • The status can be shown in NMS when each Ethernet switch is back
  • TFTP/SFTP**/HTTP firmware upgrade; LantechTM InstaView** for multiple upgrade
  • System Event Log, SMTP Email alert, SMS** mobile (text) and SNMP Trap for alarm support; 32 RMON counters
  • Security
    • SSL/SSH/INGRESS/EGRESS** ACL L2/L3
    • Port Security: MAC address entries/Filter/static MAC-Port binding
    • IP Security: IP address security management to prevent unauthorized intruder.
    • TACACS+
    • Login Security: IEEE802.1X/RADIUS
    • HTTPS for secure access to the web interface
  • Static multicast forwarding forward reversed IGMP flow with multicast packets binding with ports for IP surveillance application
  • Multicast static route for non- IGMP camera to prevent flooding; IGMP router port to assign query in ring for reversed multicast video flow
  • IGMPv1,v2,v3 with Query mode for multi media
  • Factory reset button to restore setting to factory default
  • Watchdog design to auto reboot switch when CPU is found dead
  • Environmental monitoring for system input voltage, PoE load, current and ambient temperature
  • Supports DIDO (Digital Input/Digital Output)
  • Configuration backup and restoration
    • Supports text configuration file for system quick installation
    • USB port to upload/download configuration file by USB dongle
    • InstaView** for centralized configuration deployment, backup & upgrade
  • IP30 metal housing with DIN rail and Wall-mount** design

Hardware

StandardsIEEE802.3 10Base-T Ethernet
IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T
IEEE802.3z Gigabit fiber
IEEE802.3x Flow Control and Back Pressure
IEEE802.3ad Port trunk with LACP
IEEE802.1d Spanning Tree
IEEE802.1w Rapid Spanning Tree
IEEE802.1s Multiple Spanning Tree
IEEE802.3ad Link Aggregation Control Protocol (LACP)
IEEE802.1AB Link Layer Discovery Protocol (LLDP)
IEEE802.1X User Authentication (Radius)
IEEE802.1p Class of Service
IEEE802.1Q VLAN Tag; Q-Bridge MIB**
IEEE802.3at/af Power over Ethernet
Switch ArchitectureBack-plane (Switching Fabric): 52Gbps
Mac Address16K MAC address table
Jumbo frame10KB
Connectors10/100/1000T: 8 x ports RJ-45 with Auto MDI/MDI-X function
Mini-GBIC: 8x 100M/1G SFP + 4 x 1G/2.5G SFP auto-sensing cage with DDMI
RS-232 connector: RJ-45 type
USB x 1
Power & Relay connector: 1 x 6-pole terminal block
DIDO : 1 x 6-pole terminal block
Network Cable10Base-T: 2-pair UTP/STP Cat. 3, 4, 5/ 5E/ 6 cable
EIA/TIA-568 100-ohm (100m)
100Base-TX: 2-pair UTP/STP Cat. 5/ 5E/ 6 cable; EIA/TIA-568 100-ohm (100m)
1000Base-T: 4-pair UTP/STP Cat5E/6 cable;
10GBaseT:4-pair STP Cat6/6A/7 cable
Optical Cable1Gbps:
Multi mode: 0 to 550 m, 850 nm (50/125 μm); 0 to 2 km, 1310 nm (50/125 μm)
Single mode: 0 to 10 km/ 30 km/ 40 km, 1310 nm (9/125 μm); 0 to 50 km/ 60 km/ 80km/ 120 km, 1550 nm (9/125 μm)
2.5Gbps
Multi mode: 0 to 300 m, 850 nm (50/125 μm);
Single mode: 0 to 2 km/ 15 km/ 40 km, 1310 nm (9/125 μm); 0 to 40 km/ 80 km/ 100km, 1550 nm (9/125 μm)
WDM 1Gbps:
Single mode: 0 to 10 km/ 20 km/ 40 km/ 60 km, 1310 nm (9/125 μm); 0 to 80 km, 1490 nm (9/125 μm); 0 to 10 km/ 20 km/ 40 km/ 60 km/ 80 km, 1550 nm (9/125 μm)
WDM 2.5Gbps
Single mode: 0 to 5 km/ 20 km/ 40 km/ 60 km, 1310 /1550nm (9/125 μm); 0 to 80 km, 1490/1550 nm (9/125 μm)
LEDPer unit: Power 1 (Green), Power 2 (Green), FAULT (Red); RM(Green)
Ethernet port: Link/Activity (Green), Speed (Green); PoE: Link/Act (Green);
Mini-GBIC: Link/Activity (Green)
DI/DO2 Digital Input (DI) :
Level 0: -30~2V / Level 1: 10~30V
Max. input current:8mA
2 Digital Output(DO): Open collector to 40 VDC, 200mA
Operating Humidity5% ~ 95% (Non-condensing)
Operating Temperature-20°C~60°C / -4°F~140°F (Standard model)
-40°C~75°C / -40°F~167°F(-E model)
Storage Temperature-40°C~85°C / -40°F~185°F
Power SupplyDual 9.5~56VDC (12V model);
Dual 44~56VDC (48V model)
PoE Budget12V model:
24V: 120W / 12V: 80W
48V model: 240W
PoE pin assignmentRJ-45 port # 1~#8 support IEEE 802.3at/af End-point, Alternative A mode.
Positive (VCC+): RJ-45 pin 1,2.
Negative (VCC-): RJ-45 pin 3,6.
Power Consumption25W
Case DimensionMetal case. IP-30,
74 (W) x 135 (D) x 152 (H) mm
Weight900 g
InstallationDIN Rail and Wall Mount** Design
EMI & EMSFCC Class A,
CE EN55022 Class A, CE EN55024, CE EN61000-4-2, CE EN61000-4-3, CE EN61000-4-4, CE EN61000-4-5 ED3, CE EN61000-4-6, CE N61000-4-8, EN61000-4-11
Stability TestingIEC60068-2-32 (Free fall), IEC60068-2-27 (Shock),
IEC60068-2-6 (Vibration)
MTBF591,245 (Hrs)
(standards: IEC 62830)
Warranty5 years

Software

ManagementSNMP v1 v2c, v3/ Web/Telnet/CLI
SNMP MIBRFC 1215 Traps MIB**,
RFC 1213 MIBII
RFC 1158 MIBII
RFC 1157 SNMP MIB,
RFC 1493 Bridge MIB**
RFC 1573 IF MIB
RFC 2674 VLAN MIB**,
Partial RFC 1757 RMON,
RFC 2674 Q-Bridge MIB**; Bridge MIB,
LLDP MIB
RSTP MIB**
Private MIB
ITU G.8032Support ITU G.8032 v2/2012 for Ring protection in less than 20ms for self-heal recovery (single ring enhanced mode)
Support various ring/chain topologies
Includes train ring**, auto ring**, basic single ring, enhanced ring, multiple-VLAN ring**
Enhanced G.8032 ring configuration with ease
Cover multicast & data packets protection
LTDP**(optional)Link Train Discovery Protocol with Port based DHCP server to assign the same IP address and to keep the config file when any switch changes
User friendly UI
  1. Auto topology drawing
  2. Topology demo
  3. Auto configuration for G.8032(auto mode**) for single ring
  4. DDM threshold monitoring with dB values***
  5. Complete CLI for professional setting
Port Trunk with LACPLACP Port Trunk: 10 Trunk groups
LLDPSupports LLDP to allow switch to advise its identification and capability on the LAN
CDPCisco Discovery Protocol for topology mapping
Environmental MonitoringSystem status for input voltage, current and ambient temperature to be shown in GUI and sent alerting if any abnormal status
VLANPort Based VLAN
IEEE 802.1Q Tag VLAN (256 entries)/ VLAN ID (Up to 4K, VLAN ID can be assigned from 1 to 4096)
GVRP, QinQ**, QoS QinQ**, Protocol based VLAN** ; IPv4/IPv6 Subnet based VLAN**
IPv6/4Present
Spanning TreeSupports IEEE802.1d Spanning Tree** and IEEE802.1w Rapid Spanning Tree, IEEE802.1s Multiple Spanning Tree 8/16** MSTI
Quality of ServiceThe quality of service determined by IPv4 Type of service, IPv4 Differentiated Services Code Points – DSCP
Class of ServiceSupport IEEE802.1p class of service, per port provides 8 priority queues
QoS by VLAN**Tagged QoS by VLAN** for all devices in the network
IP SecuritySupports 10 IP addresses that have permission to access the switch management and to prevent unauthorized intruder.
Login SecuritySupports IEEE802.1X Authentication/RADIUS
Port MirrorSupport 3 mirroring types: “RX, TX and Both packet”
Network SecuritySupport 10 IP addresses that have permission to access the switch management and to prevent unauthorized intruder.
802.1X access control for port based and MAC based authentication/static MAC-Port binding
Ingress/Egress** ACL L2/L3
SSL/ SSH for Management
HTTPS for secure access to the web interface
TACACS+ for Authentication
IGMPSupport IGMP snooping v1,v2,v3; Supports IGMP static route; 256 multicast groups; IGMP router port ; IGMP query; GMRP
Static multicast forwardingStatic multicast forwarding forward reversed IGMP flow with multicast packets binding with ports for IP surveillance application
Bandwidth ControlSupport ingress packet filter and egress packet limit.
The egress** rate control supports all of packet type.
Ingress filter packet type combination rules are Broadcast/Multicast/Flooded Unicast packet, Broadcast/Multicast packet, Broadcast packet only and all types of packet.
The packet filter rate can be set an accurate value through the pull-down menu for the ingress packet filter and the egress packet limit.
Flow ControlSupports Flow Control for Full-duplex and Back Pressure for Half-duplex
System LogSupports System log record and remote system log server
SMTP/Text SMS**Supports SMTP Server and 8 e-mail accounts for receiving event alert; can send SMS** text alert via mobile
Relay AlarmProvides one relay output for port breakdown, power fail and alarm.
Alarm Relay current carry ability: 1A @ DC24V
Protection
  1. Miss-wiring avoidance
  2. Repowered auto ring** restore
  3. Loop protection
SNMP TrapUp to 10 trap stations; trap types including:

  1. Device cold start
  2. Authorization failure
  3. Port link up/link down
  4. DI/DO open/close
  5. Typology change(ITU ring)
  6. Power failure
  7. Environmental abnormal**
DHCPProvide DHCP Client/ DHCP Server/DHCP Option 82/Port based or VLAN based DHCP distribution (DHCP relay agent); DHCP Option 66; IPv6 address resolution for DHCP server**
Mac based DHCP**
Server		Assign IP address by Mac that can include dumb switch in DHCP network
DNSProvide DNS client feature and support Primary and Secondary DNS server.
SNTPSupports SNTP to synchronize system clock in Internet
Firmware UpdateSupports TFTP/SFTP** firmware update, TFTP backup and restore; HTTP firmware upgrade; LantechTM InstaView** for multiple upgrade
Configuration
upload and download		Supports text configuration file for system quick installation;
Support factory reset button to restore all settings back to factory default; USB auto restore/backup configuration file
Dual Image Firmware*Support dual image firmware function

References

P/NMODEL NAMEDESCRIPTION
8350-856IPGS-5488MGSFP-12V8 10/100/1000T + 8 100M/1G SFP + 4 1G/2.5G SFP L2+ Industrial PoE Managed Ethernet Switch; -20°C to 60°C; Environmental Monitoring; dual 9.5V~56VDC input, PoE budget 80W at 12V; 120W at 24V
8350-8561IPGS-5488MGSFP-12V-E8 10/100/1000T + 8 100M/1G SFP + 4 1G/2.5G SFP L2+ Industrial PoE Managed Ethernet Switch; -40°C to 75°C; Environmental Monitoring; dual 9.5V~56VDC input, PoE budget 80W at 12V; 120W at 24V
8350-855IPGS-5488MGSFP-48V8 10/100/1000T + 8 100M/1G SFP + 4 1G/2.5G SFP L2+ Industrial PoE Managed Ethernet Switch; -20°C to 60°C; Environmental Monitoring; dual 44V~56V input, PoE budget 240W
8350-8551IPGS-5488MGSFP-48V-E8 10/100/1000T + 8 100M/1G SFP + 4 1G/2.5G SFP L2+ Industrial PoE Managed Ethernet Switch; -40°C to 75°C; Environmental Monitoring; dual 44V~56V input, PoE budget 240W

OPTIONAL ACCESSORIES – DIN Rail Power for 802.3at Applications

MODEL NAMEDESCRIPTION
NDR-240-48240W (48V 5A) Single Output Industrial Din Rail Power; 90-264VAC / 127-370VDC Input Range; Cooling by free air convection; RoHS2 ; Operating Temp. -20°C~70°C (ambient, derating each output at 2.5% per degree from 50°C ~ 70°C)
NDR-120-48120W (48V 2.5A) Single Output Industrial Din Rail Power; 90-264VAC / 127-370VDC Input Range; Cooling by free air convection; RoHS2 ; Operating Temp. -20°C~70°C (ambient, derating each output at 2.5% per degree from 50°C ~ 70°C; For 115VAC, please refer to derating curve on NDR-120 Series datasheet)

OPTIONAL ACCESSORIES – Mini GBIC (SFP)

MODEL NAMEDESCRIPTIONMODEL NAMEDESCRIPTION
8330-162XMINI GBIC 1000SX (LC/0.5km) Transceiver8330-186LTSFP-1000BX-20KM Transceiver (WDM 1310)
8330-163XMINI GBIC 1000SX2 (LC/2km) Transceiver8330-187LTSFP-1000BX-20KM Transceiver (WDM 1550)
8330-165XMINI GBIC 1000LX (LC/10km) Transceiver8330-180LTSFP-1000BX-40KM Transceiver (WDM 1310)
8340-0591MINI GBIC 1000LHX (LC/40km) Transceiver8330-182LTSFP-1000BX-40KM Transceiver (WDM 1550)
8330-166MINI GBIC 1000XD (LC/50km) Transceiver8330-181LTSFP-1000BX-60KM Transceiver (WDM 1310)
8330-169MINI GBIC 1000XD (LC/60km) Transceiver8330-183LTSFP-1000BX-60KM Transceiver (WDM 1550)
8330-167MINI GBIC 1000ZX (LC/80km) Transceiver8330-184LTSFP-1000BX-80KM Transceiver (WDM 1490)
8330-170MINI GBIC 1000EZX (120km) Transceiver8330-185LTSFP-1000BX-80KM Transceiver (WDM 1550)
8330-168MINI GBIC 1000T (100m) Transceiver8330-262DMINI GBIC 2.5G 850nm VCSEL (LC/0.3km) Transceiver
8330-188LTSFP-1000BX-10KM Transceiver (WDM 1310)8330-263DMINI GBIC 2.5G 1310nm FP (LC/2km) Transceiver
8330-189LTSFP-1000BX-10KM Transceiver (WDM 1550)8330-265DMINI GBIC 2.5G 1310nm DFB (LC/15km) Transceiver
All SFP P/N# ended with D are with DDM function

Formation

Pour des formations, contactez nous !

IGS-5408DFT-PT

2* 10/100/1000T + 2 100/1000 SFP + 8 10/100/1000T IEC-61850-3 Industrial Managed Ethernet Switch w/ Enhanced G.8032 Ring & MMS, LTDP**, PTPv2

  • Compliant with IEC61850-3 & IEEE1613
  • Supports PTP IEEE1588v2 two-step on Giga ports
  • Built-in MMS server based on IEC61850-90-4 switch data modeling for SCADA with monitoring and control
  • IEC packet counter for GOOSE monitoring
  • QoS for GOOSE packet**
  • LTDP** (Link Train Discovery Protocol) to auto-assign IP as well as inherit the configuration in replaced switch
  • Enhanced G.8032 ring protection < 20ms for single ring. Supports auto mode, enhanced mode, train mode, multi-VLAN and basic mode; Enhanced G.8032 ring covers multicast packets; MSTP 16MSTI / RSTP; support MRP ring**
  • Miss-wiring avoidance & node failure protection
  • User friendly UI, including auto topology drawing and DDM threshold monitoring with dB values***; Complete CLI
  • Support LACP link aggregation, IGMP v3/router port, DHCP server & DHCP Option82; Port based DHCP distribution, Mac based DHCP server, QoS by VLAN, SSH/SSL, HTTPS, INGRESS/EGRESS ACL L2/L3, TACACS+*, QinQ**, SMS**
  • Protocol based VLAN** ; IPv4/IPv6 Subnet based VLAN**
  • Environmental Monitoring for temp, voltage and current
  • Wide range dual DC input from 36V~72V with galvanic isolation
  • Optional InstaView** for centralized backup, editing the configuration file and upgrade firmware
  • USB port to backup, restore the configuration file and upgrade firmware (-U model)

Overview

Lantech IGS-5408DFT-PT is a high performance L2+ (Gigabit uplink) switch with 8 10/100/1000T + 2 10/100/1000T + 2 Dual Speed SFP that complies with IEC 61850-3 & IEEE 1613. It delivers ITU G.8032 enhanced ring recovery less than 20ms in single ring while also supports train ring, enhanced mode, multiple VLAN model with easy configuration.

The built-in MMS server allows SCADA to control & monitor switch for data modeling, it also support hardware 2 step PTP (Precision Time Protocol) with IEEE 1588v2 standard.

GOOSE monitoring packet counter; Built-in MMS server for IEC61850 data modeling for monitoring and control Optional QoS for GOOSE packet
The exclusive GOOSE monitoring function (IEC packet) can display the counter of GOOSE message transmitted and received by port.

The built-in MMS (Manufacturing Messaging Specification) server can help SCADA to monitor and control switch by data modeling. It covers system, power, port status, environmental monitoring, network configuration.

Optional QoS scheme for Goose packet to ensure low latency in the data patch.

LTDP**(Link Train Discovery Protocol) for zero- touch maintenance
Lantech IPGS-5208GF (IP67/IP54) features LTDP protocol in single ring topology that can help to get the same IP for replaced switch or restore the same configuration with zero-touch.

Miss-wiring avoidance, Repowered auto ring restore, Loop protection
The IGS-5408DFT-PT also embedded several features for stronger and reliable network protection in an easy and intuitive way. When the pre-set ring configuration failed or looped by miss-wiring, Lantech IGS-5408DFT-PT is able to alert with the LED indicator and disable ring automatically. Repowered auto ring restore function (node failure protection) ensures the switches in a ring to survive after power breakout is back. The status can be shown in NMS when each switch is back. This feature prevents the broken ring and keep ring alive without any re-configuration needed. Loop protection is also available to prevent the generation of broadcast storm when a dumb switch is inserted in a closed loop connection.

Enhanced G.8032 ring, 16 MSTI MSTP; Optional MRP ring**
Lantech IGS-5408DFT-PT features enhanced G.8032 ring which can be self-healed in less than 20ms for single ring topology protection covering Multicast packets. It also supports various ring topologies that covers double ring, multi-chain (under enhanced ring), train ring, basic ring, multiple-VLAN ring and auto-ring with easy setup. The innovative auto-Ring configurator (auto mode) can calculate owner and neighbor in one step. It supports MSTP that allows spanning tree over VLAN for redundant links with 16 MSTI.

DHCP option 82 & Port based, Mac based DHCP, Option66, IPv6 DHCP server**
DHCP option 82 and Port based DHCP function can offer the same IP address on port base or VLAN base where there is need to replace the new device connecting to Lantech switches to avoid any network disruption. The built-in DHCP Option 82 server offers the convenience of policy setting on the switch. Mac based DHCP server function assigns an IP address according to its MAC address to include dumb switches in DHCP network. DHCP option 66 is also supported. Optional IPv6 address resolution for DHCP server can be supported.

QoS by VLAN for legacy devices
QoS by VLAN can allow switch to tag QoS by VLAN regardless the devices acknowledge QoS or not in which greatly enhance the bandwidth management in a network.

QinQ**, QoS QinQ** and GVRP** supported
It supports the QinQ**, QoS QinQ**, GVRP** for large VLAN segmentation.

IGMPv3, GMRP**, router port, static multicast forwarding and multicast Ring protection
The unique multicast protection under enhanced G.8032 ring can offer immediate self-recovery instead of waiting for IGMP table timeout. It also supports IGMPv3, GMRP**, router port and static multicast forwarding binding by ports for video surveillance application.

User friendly GUI, Auto topology drawing
The user friendly UI, innovative auto topology drawing and topology demo makes IGS-5408DFT-PT much easier to get hands-on. The IGS-5408DFT-PT supports DMI interface that can correspond with DDM SFPs (Digital diagnostic monitor) to display the five parameters in Lantech’s UI, including optical output power, input power, temperature, laser bias current and transceiver supply voltage***. The TX power/RX power raw data is automatically converted to dB values for installer, making it easier to calculate the fiber distance. The complete CLI enables professional engineer to configure setting by command line.

Editable configuration file; USB port for configuration upload & download; InstaView** for mass deployment
The configuration file of Lantech IGS-5408DFT-PT can be exported and edited with word processor for the other switches configuration with ease. The factory reset button can restore the setting back to factory default and built-in watchdog design can automatically reboot the switch when CPU is found dead.

The built-in USB port can have configuration upload & download by USB dongle.

With optional InstaView, the configuration files can be mass backup, mass-editable deployed and auto upgrading firmware in batch make maintenance easy.

Event log & message; 2 DI / 2 DO
In case of event, the IGS-5408DFT-PT is able to send an email & SMS** text message to pre-defined addresses as well as SNMP Traps our immediately. It provides 2 DI and 2 DO. When disconnection of the specific port was detected; DO will activate the signal LED to alarm. DI can integrate the sensors for events and DO will trigger the alarm while sending alert information to IP network with email and traps.

Environmental monitoring for switch inside information
The environmental monitoring can detect switch overall temperature, voltage and current where can send the SNMP traps, email and SMS** alert when abnormal.

Wide range dual DC powered input with galvanic isolation; Relay contact alarm
The Lantech IGS-5408DFT-PT is designed with wide range dual power input from 18V~72VDC with galvanic isolation. Featured with relay contact alarm function, the IGS-5408DFT-PT is able to connect with alarm system in case of power failure or port disconnection. The IGS-5408DFT-PT also provides ±2500V EFT, ±4000V Surge and ±8000V ESD air protection, which can reduce unstable situation caused by power line and Ethernet.

Industrial hardened design for extended temperature operation
Lantech IGS-5408DFT-PT features high reliability and robustness coping with extensive EMI/RFI phenomenon, environmental vibration and shocks usually found in factory, substation, steel automation, aviation, mining and process control. It is the best solution for Automation, transportation, surveillance, Wireless backhaul, Semi-conductor factory and assembly lines.

Features

  • 8 10/100/1000T + 2 10/100/1000T + 2 Dual Speed SFP (Total 12 Ports Switch)
  • Back-plane (Switching Fabric): 24Gbps
  • 16K MAC address table
  • Built-in MMS server for SCADA data-modeling with control and monitoring
  • System info
  • Environmental monitoring
  • Power
  • Device event report
  • Port status
  • Port statistic
  • Port event report
  • Firmware upgrade
  • Network configuration
  • Two-step hardware PTP compliant with IEEE 1588 v2 for Gigabit ports
  • Optional QoS for Goose packet
  • DDM to support SFP diagnostic function***
    • Automatically convert the raw data into dB values for TX power/RX power, making it easier to measure the fiber distance
  • 10KB Jumbo frame
  • User friendly UI, auto topology drawing, topology demo, complete CLI for professional setting
  • Enhanced G.8032 Ring recovery < 20ms in single ring
    • Support various ring/chain topologies, including train ring, enhanced ring, basic ring, auto ring & multiple VLAN ring
    • Enhanced G.8032 ring configuration with ease
    • Auto ring configuration(auto mode) for single ring
    • Covers multi-cast and data packets
  • Provides EFT protection ±2500 VDC for power line.
  • Supports ±8000 VDC ESD air protection
  • ±4000V Surge for signal port
  • provides 8 priority queues Port base, Tag Base and Type of Service Priority
  • IEEE 802.1d STP, IEEE 802.1w RSTP,802.1s MSTP VLAN redundancy with with 16 MSTI
  • 4K 802.1Q VLAN, Port based VLAN, GVRP*, QinQ*, QoS QinQ*
  • Supports IEEE 802.1ab LLDP, Cisco CDP; LLDP info can be viewed via Web/ Console/ LantechTM InstaView**
  • DHCP server / client / DHCP Option 82 relay / DHCP Option 82 server Port based DHCP server; DHCP Option 66; IPv6 address resolution for DHCP server**
  • Mac based DHCP server to assign IP address that includes dumb switches in DHCP network
  • Bandwidth Control
    • Ingress packet filter and egress rate limit
    • Broadcast/multicast packet filter control
  • Relay alarm output system events
  • Miss-wiring avoidance
    • LED indicator
  • Repowered auto ring restore
    • Ensure the switches in a ring to survive after power breakout is back
    • The status can be shown in NMS when each switch is back
  • TFTP/ SFTP**/HTTP firmware upgrade; LantechTM InstaView** for multiple upgrade
  • Configuration backup and restoration
    • Supports text configuration file for system quick installation
    • USB port for upload / download configuration by USB dongle
    • InstaView** for centralized configuration deployment, backup & upgrade
  • System Event Log, SMTP Email alert, SMS** mobile (text) and SNMP Trap for alarm support; 32 RMON counters
  • Security
    • SSL/SSH/INGRESS/EGRESS ACL L2/L3
    • Port Security: MAC address entries/Filter/MAC-Port binding
    • IP Security: IP address security management to prevent unauthorized intruder.
    • TACACS+*
    • Login Security: IEEE802.1X/RADIUS
    • HTTPS for secure access to the web interface
  • Static multicast forwarding forward reversed IGMP flow with multicast packets binding with ports for IP surveillance application
  • Multicast static route for non- IGMP camera to prevent flooding; IGMP router port to assign query in ring for reversed multicast video flow
  • IGMPv1,v2,v3 with Query mode for multimedia; GMRP**
  • Factory reset button to restore setting to factory default
  • Watchdog design to auto reboot switch CPU is found dead
  • LTDP** (Link Train Discovery Protocol) with Port based DHCP can assign the same IP address and configuration to replacing switches in single ring. It can also keep the config file when switches being swapped
  • Supports DIDO (2 Digital Input / 2 Digital Output)
  • Wide range dual input power from 36V to 72V with galvanic isolation
  • Environmental monitoring for system input voltage, current and ambient temperature.
  • IP30 metal housing with DIN rail and Wall-mount** design

Technical details

Hardware Specifications

StandardsIEEE802.3 10Base-T Ethernet
IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T Ethernet
IEEE802.3z Gigabit fiber
IEEE802.3x Flow Control and Back Pressure
IEEE802.3ad Port trunk with LACP
IEEE802.1d Spanning Tree
IEEE802.1w Rapid Spanning Tree
IEEE802.1s Multiple Spanning Tree
IEEE802.3ad Link Aggregation Control Protocol (LACP)
IEEE802.1AB Link Layer Discovery Protocol (LLDP)
IEEE802.1X User Authentication (Radius)
IEEE802.1p Class of Service
IEEE802.1Q VLAN Tag
IEEE1588 Precision Time Protocol v2
Switch ArchitectureBack-plane (Switching Fabric): 24Gbps
Transfer Rate14,880pps for Ethernet port
148,800pps for Fast Ethernet port
1,488,000pps for Gigabit Ethernet / Gigabit Fiber port
Mac Address16K MAC address table
Jumbo frame10KB
Connectors10/100/1000T:10 x ports RJ-45 with Auto MDI/MDI-X function
Mini-GBIC: 2 x 100/1000 SFP socket with DDM
RS-232 connector: RJ-45 type
USB x 1 (-U model)
Power & Relay connector: 1 x 6-pole terminal block
DIDO : 1 x 6-pole terminal block
Network Cable10Base-T: 2-pair UTP/STP Cat. 3, 4, 5/ 5E/ 6 cable
EIA/TIA-568 100-ohm (100m)
100Base-TX: 2-pair UTP/STP Cat. 5/ 5E/ 6 cable
EIA/TIA-568 100-ohm (100m)
1000Base-TX: 2-pair UTP/STP Cat. 5/ 5E/ 6 cable
EIA/TIA-568 100-ohm (100m)
Optical Cable1.25Gbps:
Multi mode: 0 to 550 m, 850 nm (50/125 μm); 0 to 2 km, 1310 nm (50/125 μm)
Single mode: 0 to 10 km/ 30 km/ 40 km, 1310 nm (9/125 μm); 0 to 50 km/ 60 km/ 80km/ 120 km, 1550 nm (9/125 μm)
125Mbps:
Multi mode: 0 to 2 km/ 5 km, 1310 nm (62.5/125 μm)
Single mode: 0 to 30 km, 1310 nm (62.5/125 μm)
WDM 1.25Gbps:
Single mode: 0 to 10 km/ 20 km/ 40 km/ 60 km, 1310 nm (9/125 μm); 0 to 80 km, 1490 nm (9/125 μm); 0 to 10 km/ 20 km/ 40 km/ 60 km/ 80 km, 1550 nm (9/125 μm)
WDM 125Mbps:
Single mode: 0 to 20 km/ 40 km/ 60 km/ 80 km, 1310 nm (9/125 μm); 0 to 20 km/ 40 km/ 60 km/ 80 km, 1550 nm (9/125 μm)
LEDPer unit: Power 1 (Green), Power 2 (Green), FAULT (Red), RM(Green)
Ethernet port: Link/Activity (Green), Speed (Green); Mini-GBIC: Link/Activity (Green)
DI/DO2 Digital Input (DI) :
Level 0: -30~2V / Level 1: 10~30V
Max. input current:8mA
2 Digital Output(DO): Open collector to 40 VDC, 200mA
Operating Humidity5% ~ 95% (Non-condensing)
Operating Temperature-20°C~60°C / -4°F~140°F (Standard model)
-40°C~75°C / -40°F~167°F(-E model)
Storage Temperature-40°C~85°C / -40°F~185°F
Power Supply36 to 72 VDC with galvanic isolation
Power Consumption10W
Case DimensionMetal case. IP-30,
74 (W) x 105 (D) x 152 (H) mm
Weight900 g
InstallationDIN Rail and Wall Mount** Design
EMI & EMSFCC Class A,
CE EN55032, CE EN55024,
CE EN61000-4-2, CE EN61000-4-3,
CE EN61000-4-4, CE EN61000-4-5,
CE EN61000-4-6, CE EN61000-4-8,
CE EN61000-6-4, CE EN61000-6-2
Stability TestingIEC60068-2-32 (Free fall),
IEC60068-2-27 (Shock),
IEC60068-2-64 (Vibration)
Railway verificationEN50121-4 , EN55022 (EMV),
EN50125-3 (environmental conditions)
Substation VerificationIEC 61375
MTBF830,589 hrs
Warranty5 years

Software Specifications

  • 8 10/100/1000T + 2 10/100/1000T + 2 Dual Speed SFP (Total 12 Ports Switch)
  • Back-plane (Switching Fabric): 24Gbps
  • 16K MAC address table
  • Built-in MMS server for SCADA data-modeling with control and monitoring
  • System info
  • Environmental monitoring
  • Power
  • Device event report
  • Port status
  • Port statistic
  • Port event report
  • Firmware upgrade
  • Network configuration
  • Two-step hardware PTP compliant with IEEE 1588 v2 for Gigabit ports
  • Optional QoS for Goose packet
  • DDM to support SFP diagnostic function***
    • Automatically convert the raw data into dB values for TX power/RX power, making it easier to measure the fiber distance
  • 10KB Jumbo frame
  • User friendly UI, auto topology drawing, topology demo, complete CLI for professional setting
  • Enhanced G.8032 Ring recovery < 20ms in single ring
    • Support various ring/chain topologies, including train ring, enhanced ring, basic ring, auto ring & multiple VLAN ring
    • Enhanced G.8032 ring configuration with ease
    • Auto ring configuration(auto mode) for single ring
    • Covers multi-cast and data packets
  • Provides EFT protection ±2500 VDC for power line.
  • Supports ±8000 VDC ESD air protection
  • ±4000V Surge for signal port
  • provides 8 priority queues Port base, Tag Base and Type of Service Priority
  • IEEE 802.1d STP, IEEE 802.1w RSTP,802.1s MSTP VLAN redundancy with with 16 MSTI
  • 4K 802.1Q VLAN, Port based VLAN, GVRP*, QinQ*, QoS QinQ*
  • Supports IEEE 802.1ab LLDP, Cisco CDP; LLDP info can be viewed via Web/ Console/ LantechTM InstaView**
  • DHCP server / client / DHCP Option 82 relay / DHCP Option 82 server Port based DHCP server; DHCP Option 66; IPv6 address resolution for DHCP server**
  • Mac based DHCP server to assign IP address that includes dumb switches in DHCP network
  • Bandwidth Control
    • Ingress packet filter and egress rate limit
    • Broadcast/multicast packet filter control
  • Relay alarm output system events
  • Miss-wiring avoidance
    • LED indicator
  • Repowered auto ring restore
    • Ensure the switches in a ring to survive after power breakout is back
    • The status can be shown in NMS when each switch is back
  • TFTP/ SFTP**/HTTP firmware upgrade; LantechTM InstaView** for multiple upgrade
  • Configuration backup and restoration
    • Supports text configuration file for system quick installation
    • USB port for upload / download configuration by USB dongle
    • InstaView** for centralized configuration deployment, backup & upgrade
  • System Event Log, SMTP Email alert, SMS** mobile (text) and SNMP Trap for alarm support; 32 RMON counters
  • Security
    • SSL/SSH/INGRESS/EGRESS ACL L2/L3
    • Port Security: MAC address entries/Filter/MAC-Port binding
    • IP Security: IP address security management to prevent unauthorized intruder.
    • TACACS+*
    • Login Security: IEEE802.1X/RADIUS
    • HTTPS for secure access to the web interface
  • Static multicast forwarding forward reversed IGMP flow with multicast packets binding with ports for IP surveillance application
  • Multicast static route for non- IGMP camera to prevent flooding; IGMP router port to assign query in ring for reversed multicast video flow
  • IGMPv1,v2,v3 with Query mode for multimedia; GMRP**
  • Factory reset button to restore setting to factory default
  • Watchdog design to auto reboot switch CPU is found dead
  • LTDP** (Link Train Discovery Protocol) with Port based DHCP can assign the same IP address and configuration to replacing switches in single ring. It can also keep the config file when switches being swapped
  • Supports DIDO (2 Digital Input / 2 Digital Output)
  • Wide range dual input power from 36V to 72V with galvanic isolation
  • Environmental monitoring for system input voltage, current and ambient temperature.
  • IP30 metal housing with DIN rail and Wall-mount** design
*Future Release
**Optional
***Optional DDM SFP required

IES-3424DSFP-2P-PT

24 10/100TX + 4 Dual Speed SFP L2+ Industrial Managed Ethernet switch

  • Support PTPv2 two-step transparent clock @ 4 100/1000M ports
  • IEC 61850-3 & IEEE1613 compliance
  • Goose monitoring; Built-in MMS server for power SCADA
  • Enhanced G.8032 ring protection < 20ms for single ring. Supports auto mode, enhanced mode, train mode and basic mode; Enhanced G.8032 ring covers multicast packets; MSTP 16 MSTI /RSTP
  • Miss-wiring avoidance & Repowered auto ring restore (node failure protection)
  • User friendly UI, including auto topology drawing and DDM threshold monitoring with dB values***; Complete CLI
  • Support LACP link aggregation, IGMP v3/router port, DHCP server & DHCP Option82 for Port/Vlan based DHCP distribution, Mac based DHCP server, QoS by VLAN, SSH/SSL, HTTPS, INGRESS/EGRESS ACL L2/L3, IPv6, SMS**
  • USB slot for edited restoration and auto backup

Overview

Lantech IES-3424DSFP-2P-PT is a high performance L2 + managed industrial IEC61850-3 Ethernet switch which provides L2 wire speed and advanced security function for network aggregation and backbone deployment. It delivers ITU G.8032 enhanced ring recovery less than 20ms including dynamic coupling ring, and enhanced mode for easy configuration, comprehensive QoS, QoS by VLAN, advanced security including INGRESS/EGRESS ACL L2/L3, SSH/SSL, Mac based DHCP server, DHCP Option 82, DHCP server, IGMPv1/v2/v3/router port, QinQ* (double tag VLAN) which are important features required in train and large network. It also supports Cisco Discovery Protocol (CDP) and LLDP for Ciscoworks to detect the switch info and show on L2 map topology.

The exclusive GOOSE monitoring function (IEC packet) can display the counter of GOOSE message transmitted and received by port. The built-in MMS (Manufacturing Messaging Specification) server can help power SCADA to monitor and control switch by data modeling.

The IES-3424DSFP-2P-PT also embedded several features for stronger and reliable network protection in an easy and intuitive way. When the pre-set ring configuration failed or looped by miss-wiring, Lantech IES-3424DSFP-2P-PT is able to alert with the LED indicator and disable ring automatically. Repowered auto ring restore function (node failure protection) ensures the switches in a ring to survive after power breakout is back. The status can be shown in NMS when each switch is back. This feature prevents the broken ring and keep ring alive without any re-configuration needed. Loop protection is also available to prevent the generation of broadcast storm when a dumb switch is inserted in a closed loop connection.

DHCP option 82 and relay agent function (Port/Vlan based DHCP distribution) can offer the same IP address on port base or vlan base where there is need to replace the new device connecting to Lantech switches to avoid any network disruption. The built-in DHCP Option 82 server offers the convenience of policy setting on the switch. Mac based DHCP server function assigns an IP address according to its MAC address to include dumb switches in DHCP network.

The user friendly UI, innovative auto topology drawing and topology demo makes IES-3424DSFP-2P-PT much easier to get hands-on. The IES-3424DSFP-2P-PT supports DMI interface that can correspond with DDM SFPs (Digital diagnostic monitor) to display the five parameters in Lantech’s UI, including optical output power, input power, temperature, laser bias current and transceiver supply voltage***. The TX power/RX power raw data is automatically converted to dB values for installer, making it easier to calculate the fiber distance. The complete CLI enables professional engineer to configure setting by command line.

Lantech IES-3424DSFP-2P-PT features enhanced G.8032 ring which can be self-healed in less than 20ms for single ring topology protection covering Multicast packets. It also supports various ring topologies that covers double ring, multi-chain (under enhanced ring), train ring, basic ring by easy setup than others. The innovative auto-Ring configurator (auto mode) can calculate owner and neighbor in one step. It supports MSTP that allows RSTP over Vlan for redundant links with 16 MSTI.

The configuration file of Lantech IES-3424DSFP-2P-PT can be exported in text file so that it can be edited and configured back to switch with ease for mass deployment. The factory reset button can restore the setting back to factory default and built-in watchdog design can automatically reboot the switch when CPU is found dead. The USB slot allows user to backup/ restore configuration.

QoS by VLAN can allow switch to tag QoS by VLAN regardless the devices acknowledge QoS or not in which greatly enhance the bandwidth management in a network.

The IES-3424DSFP-2P-PT DIDO function can support additional open/close physical contact for designate applications besides Port / Power events, for example, DIDO function can trigger alarm if the switch was moved or stolen. In case of events, the IES-3424DSFP-2P-PT will immediately send an email & SMS** text message to pre-defined addresses as well as SNMP Traps out. It provides 2DI and 2DO while disconnection of the specific port was detected; DO will activate the signal LED to alarm. DI can integrate the sensors for events and DO will trigger the alarm while sending alert information to IP network with email and traps.

Lantech IES-3424DSFP-2P-PT supports dual power inputs from DC9.5~60V, 85~265VAC or 100V~370VDC. It features high reliability and robustness withstanding extensive EMI/RFI phenomenon, lighting surge, inductive load switching, high ESD, high fault current environment usually found in Substation, Steel automation, Mining and Process control etc. IES-3424DSFP-2P-PT can run under widely operational temperature (-40°C~75°C) in the harsh environment.

Technical details

  • System Interface/Performance
    • IEC-61850 & IEEE1613 Compliance
    • 24×10/100TX at/af+ 4 100M/1000M SFP L2+
    • 16K MAC Address Table
    • Dual Power Supply Design for DC(9.5V~60VDC), AC(85V~265VAC) or 100V~370VDC
    • -40to 75C operation temperature(-E model)
    • FAN less design
  • Goose monitoring for port counter of Goose message(IEC packets)
  • MMS server built-in for SCADA monitoring/control
  • User friendly UI, Auto topology drawing, topology demo, Complete CLI for professional setting
  • IP v6/v4 supported
  • Enhanced G.8032 Ring protection in 20ms for single ring
    • Support various ring/chain topologies, including dynamic coupling ring
    • Enhanced G.8032 ring configuration with ease
    • Auto ring configuration(auto mode) for single ring
    • Ring covers multicast on different ports
  • DDM to support SFP diagnostic function***
    • Automatically convert the raw data into dB values for TX power/RX power, making it easier to measure the fiber distance
  • 256 groups MSTP over VLAN
  • VLAN
    • 4K 802.1Q Vlan, Port Based VLAN,GVRP*GMRP*, QinQ*
  • Port Trunk with LACP 14 trunks with automatic link failover
  • LACP link aggregation to add bandwidth
  • QoS (Quality of Service)
    • Supports IEEE 802.1p CoS
    • Per port provides 8 priority queues
    • Port-base,Tag-base and TOS Priority
    • Strict priority and WRR
  • Security
    • SSL/SSH/INGRESS/EGRESS ACL L2/L3
    • Port Security: MAC address entries/Filter/MAC-Port binding
    • IP Security: IP address security management to prevent unauthorized intruder.
    • Management access control with priority
    • Login Security: IEEE802.1X/RADIUS
    • HTTPS for secure access to the web interface
  • Miss-wiring avoidance
    • LED indicator
  • Repowered auto ring restore(node failure protection)
    • Ensure the switches in a ring to survive after power breakout is back
    • The status can be shown in NMS when each switch is back
  • IGMP v1,v2,v3 and Proxy** for Multi Media Application
  • IGMP router to select another Query mode and support IGMP static routing for reversed IGMP flow to bind with port for IP surveillance application
  • Supports IEEE802.1ab LLDP, Cisco CDP
  • DHCP server / client / Port/Vlan based DHCP distribution / DHCP Option 82 supported
  • Mac based DHCP server to assign IP address that includes dumb switches in DHCP network
  • Bandwidth Control
    • Ingress Packet Filter and Egress Rate Limit
    • Broadcast/Multicast Packet Filter Control
  • System Event Log, Email alert, SMS**(mobile text) and SNMP Trap for alarm support
  • TFTP/HTTP firmware upgrade; LantechTM InstaView** for multiple upgrade; USB for edited restoration and auto backup
  • Reset / Factory default button to restore factory setting
  • Watch dog design to reboot switch if CPU is found dead
  • Provides EFT protection ±4K VDC for power line
  • Supports ±8KV contact & 15KV air Ethernet ESD protection
  • 2 DI/DO and 1 relay contact alarm

Specifications

Hardware Specifications

IEEE StandardsIEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Ethernet
IEEE802.3z Gigabit fiber
IEEE 802.3x Flow Control Capability
ANSI/IEEE 802.3 Auto-negotiation
IEEE 802.1Q VLAN
IEEE 802.1p Class of Service
IEEE 802.1X Access Control
IEEE 802.1D Spanning Tree
IEEE 802.1w Rapid Spanning Tree
IEEE 802.1s Multiple Spanning Tree
IEEE 802.3ad Link Aggregation Control Protocol (LACP)
IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
IEEE 802.1x User Authentication (Radius)
IEEE 1588 Precision Time Protocol v2
Switch ArchitectureBack-plane (Switching Fabric): 12.8Gbps
Transfer Rate14,880pps for Ethernet port
148,800pps for Fast Ethernet port
1,488,000pps for Gigabit Ethernet / Gigabit Fiber port
Mac Address16K MAC address table
Jumbo frame10KB on all ports
Connectors24 10/100TX RJ-45 with auto MDI/MDI-X function
4 100M / 1000M Mini-GBIC : SFP sockets
RS-232 console: Female DB-9
USB for backup and restore
DDMConform to SFF-8472 to show diagnostic SFP with temperature, current, voltage, input and output power
LEDPer unit: Power 1 (Green), Power 2 (Green), Fault (Red) ,R.M (Green)
Link/Activity (Green), Full duplex/collision(Yellow)), MINI GBIC (Link/Activity )(Green)
Power SupplyTwo power sockets,
9.5~60VDC input
IEC320 85~265VAC input (-AC model)
AC/DC 85~265VAC/100V~370VDC input (-HV model)
Power ConsumptionFull load: 30W/ Unload: 13W
Relay AlarmProvides one relay output for port breakdown, power fail and alarm.
Alarm Relay current carry ability: 1A @ DC24V
DI/DO2 Digital Input (DI) :
Level 0: -30~2V / Level 1: 10~30V
Max. input current:8mA
2 Digital Output(DO): Open collector to 40 VDC, 200mA
Factory reset button & watch dog designFactory reset button to restore back to factory default settings.  Watch dog design can reboot switch automatically when CPU is found dead
Case Dimension19” Metal case,IP-30; 440mm(W)x325mm(D)x44mm(H)
Operating Humidity5%~95% (Non-condensing)
Operating TemperatureStandard: -20°C ~60°C
Extended temperature : -40°C ~75°C
Storage Temperature-40°C ~85°C
EMIFCC Class A, CE EN61000-4-2 (ESD),
CE EN61000-4-3 (RS), CE EN-61000-4-4 (EFT),
CE EN61000-4-5 (Surge), CE EN61000-4-6 (CS),
CE EN61000-4-8, CE EN61000-4-11,
CE EN61000-4-12, CE EN55022 Class A, CE EN55024
Stability TestingIEC60068-2-32 (Free fall), IEC60068-2-27 (Shock), IEC60068-2-6 (Vibration), IEC60870-2-2, IEC60068-2-30
Power AutomationIEC 61850-3, IEEE 1613
MTBF511,958 hours (standards: IEC 62830)
Warranty5 years

Software Specifications

ManagementSNMP v1 v2c, v3/ Web/Telnet/CLI Management
SNMP MIBRFC 1215 Traps MIB,
RFC 1213 MIBII
RFC 1158 MIBII
RFC 1157 SNMP MIB,
RFC 1493 Bridge MIB,
RFC 1573 IF MIB
RFC 2674 VLAN MIB,
Partial RFC 1757 RMON,
RFC 2674 Q-Bridge MIB; Bridge MIB,
LLDP MIB*
RSTP MIB*
Private MIB
VLANPort based VLAN, up to 28 groups
IEEE802.1Q Tag VLAN
Static VLAN groups up to 256, VLAN ID from 1 to 4096
GVRP up to 256 groups* GMRP*.
Multicast VLAN registration*, QinQ*
Port Trunk with LACPLACP Port Trunk: 8 Trunk groups
LLDPSupport LLDP to allow switch to advise its identification and capability on the LAN
CDPCisco Discovery protocol for topology mapping
Goose monitoringShow individual Goose TX / RX counter(IEC packets)
IEC 61850-9-4Built in MMS server for data modeling for power SCADA
ITU G.8032Support ITU G.8032 v2/2012 for Ring protection in less than 20ms for self-heal recovery (basic mode)
Support various ring/chain topologies
Includes dynamic coupling ring
Enhanced G.8032 ring configuration with ease
Ring covers multicast on different ports
PTP v2Support hardware-based IEEE1588 PTP v2, End to End (2-step) and Peer to Peer (2-step) modes in Transparent Clock, with 4 Dual Speed SFP
User friendly UI
  1. Auto topology drawing with detail node info
  2. DDM threshold monitoring with dB values***
  3. Complete CLI for professional setting
IPv6/v4Present
Spanning TreeSupport IEEE802.1d Spanning Tree,IEEE802.1w Rapid Spanning Tree, IEEE 802.1s MSTP
Quality of ServiceThe quality of service determined by port, Tag and IPv4 Type of service, IPv4 Differentiated Services Code Points – DSCP
Class of ServiceSupport IEEE802.1p class of service, per port provides 8 priority queues
QoS by VLANTagged QoS by VLAN for all devices in the network
IP SecuritySupports 10 IP addresses that have permission to access the switch management and to prevent unauthorized intruder.
Port MirrorSupport 3 mirroring types: “RX, TX and Both packet”
Multicast Filtering & IGMPSupport IGMP snooping v1,v2,v3; Supports IGMP static route
IGMP query and router port
1024 multicast groups and IGMP query
Static MAC-Port bridgeStatic multicast forwarding forward reversed IGMP flow with multicast packets binding with ports for IP surveillance application
Bandwidth ControlSupport ingress packet filter and egress packet limit.
The egress rate control supports all of packet type,  the limit rates are 0~100Mbps.
Ingress filter packet type combination rules are Broadcast/Multicast/Flooded Unicast packet, Broadcast/Multicast packet, Broadcast packet only and all types of packet. The packet filter rate can be set from 0 to 100Mbps
The packet filter rate can be set an accurate value through the pull-down menu for the ingress packet filter and the egress packet limit.
Network SecuritySupport 10 IP addresses that have permission to access the switch management and to prevent unauthorized intruder.
802.1X access control for port based and MAC based authentication/MAC-Port binding
Management access control with priority
Ingress/Egress ACL L2/L3
SSL/ SSH for Management
HTTPS for secure access to the web interface
TACACS+* for Authentication
Protection
  1. Miss-wiring avoidance
  2. Repowered auto ring restore (node failure protection)
  3. Loop protection
Flow ControlSupport Flow Control for Full-duplex and Back Pressure for Half-duplex
System LogSupport System log record and remote system log server
SMTP, SMS**Supports SMTP Server and 8 e-mail accounts for receiving event alert; can send SMS** text alert via mobile; Can send alert via mobile SMS** text
SNMP TrapUp to 10 trap stations; trap types including:

  1. Device cold start
  2. Authorization failure
  3. Port link up/link down
  4. DI/DO open/close
  5. Typology change(ITU ring)
  6. PoE ping failure
  7. Power failure
DHCPProvide DHCP Client/ DHCP Server/DHCP Option 82/Port based&VLAN based DHCP distribution (DHCP relay agent)
Mac based DHCP ServerAssign IP address by Mac that can include dumb switch in DHCP network
DNSProvide DNS client feature and support Primary and Secondary DNS server.
SNTPSupport SNTP to synchronize system clock in Internet
Firmware UpdateSupport TFTP /HTTPS firmware update ; InstaView** mass firmware upgrade**
Configuration backup and restoreSupport text backup and restore; USB dongle for firmware auto-backup and edited restoration
*Future Release
**Optional
***Optional DDM SFP required

References

P/NModel nameDescription
8388-506IES-3424DSFP-2P-PT24 10/100TX + 4 Dual SFP L2 plus Industrial IEC61850 Ethernet switch
Built-in 1x isolated DC 12~56VDC power supply + 1x additional PSU slot; -20°C to 60°C
8388-507IES-3424DSFP-2P-PT-E24 10/100TX + 4 Dual SFP L2 plus Industrial IEC61850 Ethernet switch
Built-in 1x isolated DC 12~56VDC power supply + 1x additional PSU slot; -40°C to 75°C
8388-510IES-3424DSFP-2P-PT-AC24 10/100TX + 4 Dual SFP L2 plus Industrial IEC61850 Ethernet switch
Built-in 1x isolated AC85~265VAC IEC320 power supply + 1x additional PSU slot; -20°C to 60°C
8388-511IES-3424DSFP-2P-PT-AC-E24 10/100TX + 4 Dual SFP L2 plus Industrial IEC61850 Ethernet switch
Built-in 1x isolated AC85~265VAC IEC320 power supply + 1x additional PSU slot; -40°C to 75°C
8388-508IES-3424DSFP-2P-PT-HV24 10/100TX + 4 Dual SFP L2 plus Industrial IEC61850 Ethernet switch
Built-in 1x isolated AC/DC 85~265VAC/100V~370VDC power supply + 1x additional PSU slot; -20°C to 60°C
8388-509IES-3424DSFP-2P-PT-HV-E24 10/100TX + 4 Dual SFP L2 plus Industrial IEC61850 Ethernet switch
Built-in 1x isolated AC/DC 85~265VAC/100V~370VDC power supply + 1x additional PSU slot; -40°C to 75°C



OPTIONAL ACCESSORIES – Power for System

Model nameDescription
EOTH000701Isolation Power 85-264VAC, 100-370VDC 1.5A, 47-63HZ
EOTH000702Isolation Power 36-75VDC, 2.5A
EOTH000703Power 85-264VAC IEC320 socket, 1.5A , 47-63HZ
EOTH000704Power Input Module 12-56VDC, 2.5A



OPTIONAL ACCESSORIES – Mini GBIC (SFP)

Model nameDescriptionModel nameDescription
8330-162XMINI GBIC 1000SX (LC/0.5KM) Transceiver8330-187LTSFP-1000BX-20KM Transceiver (WDM 1550)
8330-163XMINI GBIC 1000SX2 (LC/2KM) Transceiver8330-180LTSFP-1000BX-40KM Transceiver (WDM 1310)
8330-165XMINI GBIC 1000LX (LC/10KM) Transceiver8330-182LTSFP-1000BX-40KM Transceiver (WDM 1550)
8340-0591MINI GBIC 1000LHX (LC/40KM) Transceiver8330-181LTSFP-1000BX-60KM Transceiver (WDM 1310)
8330-166MINI GBIC 1000XD (LC/50KM) Transceiver8330-183LTSFP-1000BX-60KM Transceiver (WDM 1550)
8330-169MINI GBIC 1000XD (LC/60KM) Transceiver8330-184LTSFP-1000BX-80KM Transceiver (WDM 1490)
8330-167MINI GBIC 1000ZX (LC/80KM) Transceiver8330-185LTSFP-1000BX-80KM Transceiver (WDM 1550)
8330-170MINI GBIC 1000EZX (120KM) Transceiver8330-071125Mbps BiDi SFP 2KM (WDM 1310) Transceiver
8330-168MINI GBIC 10/100/1000T (100m) Transceiver8330-072125Mbps BiDi SFP 2KM (WDM 1550) Transceiver
8330-060100Base FX 2KM, Multi-mode, LC Transceiver8330-069125Mbps BiDi SFP 20KM (WDM 1310) Transceiver
8330-065100Base FX 5KM, Multi-mode, LC Transceiver8330-068125Mbps BiDi SFP 20KM (WDM 1550) Transceiver
8330-061100Base LX 30KM, Single-mode, LC Transceiver8330-080125Mbps BiDi SFP 40KM (WDM 1310) Transceiver
8330-1971.25Gbps BiDi SFP 0.5KM Transceiver (WDM 1310)8330-082125Mbps BiDi SFP 40KM (WDM 1550) Transceiver
8330-1981.25Gbps BiDi SFP 0.5KM Transceiver (WDM 1550)8330-081125Mbps BiDi SFP 60KM (WDM 1310) Transceiver
8330-1951.25Gbps BiDi SFP 2KM Transceiver (WDM 1310)8330-083125Mbps BiDi SFP 60KM (WDM 1550) Transceiver
8330-1961.25Gbps BiDi SFP 2KM Transceiver (WDM 1550)8330-084125Mbps BiDi SFP 80KM (WDM 1310) Transceiver
8330-1881.25Gbps BiDi SFP 10KM Transceiver (WDM 1310)8330-085125Mbps BiDi SFP 80KM (WDM 1550) Transceiver
8330-1891.25Gbps BiDi SFP 10KM Transceiver (WDM 1550)8330-191Dual Speed SFP 100M/1000M-LX 10KM Transceiver
8330-1861.25Gbps BiDi SFP 20KM Transceiver (WDM 1310)All SFP P/N# ended with D are with DDM function

IPGES-3408GSFP

IPGS-3408GSFP

8 10/100/1000T PoE at + 4 1000M SFP L2+ Industrial Managed Switch w/ ITU G.8032 & PTP

ipgs-3408GSFP

IPGS-3408GSFP-E_250x300
  • Support IEEE802.3at/af up to 30W per port
  • PoE management incl. Detection and Scheduling
  • Enhanced G.8032 ring protection < 20ms with easy configuration; Dynamic coupling ring; Aggregation ring*
  • Miss-wiring avoidance & Repowered auto ring restore (node failure protection)
  • User friendly UI, including auto topology drawing and DDM threshold monitoring with dB values***; Complete CLI
  • Support LACP link aggregation, IGMP v3/router port, DHCP server & DHCP Option82 for Port&VLAN based DHCP distribution, Mac based DHCP server, QoS by VLAN, SSH/SSL, HTTPS, TACAS+*, ACL, IPv6, SMS
  • Environmental Monitoring for temp., voltage & current**

Aperçu

Lantech IPGS-3408GSFP is a high performance L2+ (Gigabit uplink) switch with 8 10/100/1000T + 4 1000M SFP w/8 PoE 802.3af/at Injectors which provides L2 wire speed and advanced security function for network aggregation deployment. It delivers ITU G.8032 enhanced ring recovery less than 20ms including dynamic coupling ring, and enhanced mode for easy configuration, comprehensive QoS, QoS by VLAN, advanced security including INGRESS/EGRESS ACL L2/L3, SSH/SSL, Mac based DHCP server, DHCP Option 82, DHCP server, IGMPv1/v2/v3/router port, QinQ* (double tag VLAN) which are important features required in train and large network. It also supports Cisco Discovery Protocol (CDP) and LLDP for Ciscoworks to detect the switch info and show on L2 map topology.

Compliant with 802.3af/at standard, the Lantech IPGS-3408GSFP is able to feed each PoE port up to 30 Watts@54 VDC providing the connected PD devices. Lantech IPGS-3408GSFP supports advanced PoE management including PoE detection and scheduling. PoE detection can detect if the connected PD hangs then restart the PD; PoE scheduling is to allow pre-set power feeding schedule upon routine time table. Each PoE ports can be Enabled/disabled, get the voltage, current, Watt, and temperature info displayed on WebUI.

The IPGS-3408GSFP also embedded several features for stronger and reliable network protection in an easy and intuitive way. When the pre-set ring configuration failed or looped by miss-wiring, Lantech IPGS-3408GSFP is able to alert with the LED indicator and send out an email, traps or a SMS text. Repowered auto ring restore function (node failure protection) ensures the switches in a ring to survive after power breakout is back. The status can be shown in NMS when each switch is back. This feature prevents the broken ring and keep ring alive without any re-configuration needed. Loop protection is also available to prevent the generation of broadcast storm when a dumb switch is inserted in a closed loop connection.

DHCP option 82 and relay agent function (Port/Vlan based DHCP distribution) can offer the same IP address on port base or vlan base where there is need to replace the new device connecting to Lantech switches to avoid any network disruption. The built-in DHCP Option 82 server offers the convenience of policy setting on the switch. Mac based DHCP server function assigns an IP address according to its MAC address to include dumb switches in DHCP network.

The user friendly UI, innovative auto topology drawing and topology demo makes IPGS-3408GSFP much easier to get hands-on. The switch also equips the RTC (real time clock) which can keep track of time always. The IPGS-3408GSFP supports DMI interface that can correspond with DDM SFPs (Digital diagnostic monitor) to display the five parameters in Lantech’s UI, including optical output power, input power, temperature, laser bias current and transceiver supply voltage***. The TX power/RX power raw data is automatically converted to dB values for installer, making it easier to calculate the fiber distance. The complete CLI enables professional engineer to configure setting by command line.

Lantech IPGS-3408GSFP features enhanced G.8032 ring which can be self-healed in less than 20ms for single ring topology protection covering Multicast packets. It also supports various ring topologies that covers double ring, multi-chain (under enhanced ring), train ring, basic ring by easy setup than others. The innovative auto-Ring configurator (auto mode) can calculate owner and neighbor in one step. It supports MSTP that allows RSTP over Vlan for redundant links with 8/16* MSTI.

The configuration file of Lantech IPGS-3408GSFP can be exported in text file so that it can be edited and configured back to switch with ease for mass deployment. The factory reset button can restore the setting back to factory default and built-in watchdog design can automatically reboot the switch when CPU is found dead.

QoS by VLAN can allow switch to tag QoS by VLAN regardless the devices acknowledge QoS or not in which greatly enhance the bandwidth management in a network.

The IPGS-3408GSFP DIDO function can support additional open/close physical contact for designate applications besides Port / Power events, for example, DIDO function can trigger alarm if the switch was moved or stolen. In case of events, the IPGS-3408GSFP will immediately send an email & SMS text message to pre-defined addresses as well as SNMP Traps out. It provides 2DI and 2DO while disconnection of the specific port was detected; DO will activate the signal LED to alarm. DI can integrate the sensors for events and DO will trigger the alarm while sending alert information to IP network with email and traps.

The optional environmental monitoring can detect switch overall temperature, voltage and current where can send the SNMP traps, email and SMS alert when abnormal.

The Lantech IPGS-3408GSFP is designed with dual power supply at 48VDC. The 12V model is built with Booster technology that can accept input voltage from 12V ~ 48V and deliver PoE power at 48V to feed the PD. Featured with relay contact alarm function, the IPGS-3408GSFP is able to connect with alarm system in case of power failure. The IPGS-3408GSFP also provides ±2000V EFT and ±6000V ESD protection, which can reduce unstable situation caused by power line and Ethernet.

Lantech IPGS-3408GSFP features high reliability and robustness coping with extensive EMI/RFI phenomenon, environmental vibration and shocks usually found in factory, substation, steel automation, aviation, mining and process control. It is the best solution for Automation, transportation, surveillance, Wireless backhaul, Semi-conductor factory and assembly lines.

The -E model can be used in extreme environments with an operating temperature range of -40°C to 75°C.

Détails techniques

  • 8 10/100/1000T + 4 1000M SFP (Total 12 Ports Switch)
  • IEEE 1588 PTP v2 two-step (under 1μs)
  • Back-plane (Switching Fabric): 24Gbps
  • 16K MAC address table
  • DDM to support SFP diagnostic function***
    • Automatically convert the raw data into dB values for TX power/RX power, making it easier to measure the fiber distance
  • 9KB Jumbo frame supported on all ports
  • User friendly UI, auto topology drawing, topology demo, complete CLI for professional setting
  • Enhanced G.8032 Ring protection in 20ms < 256 switches
    • Support various ring/chain topologies, including dynamic coupling ring& aggregation ring*
    • Enhanced G.8032 ring configuration with ease
    • Auto ring configuration(auto mode) for single ring
    • Co-exist with RSTP on different ports
  • Aggregation ring for ring redundancy and bandwidth combination*
  • Dual DC input from 18V~57VDC, HV model with single 90~305VAC or 120~430VDC power input
  • Provides EFT protection ±4000 VDC for power line.
  • Supports ±6000 VDC Ethernet ESD protection
  • LACP load balancing to distribute the load*
  • Built-in RTC (Real Time Clock) to keep track of time
  • Supports IEEE 802.1p Class of Service, per port provides 8 priority queues Port base, Tag Base and Type of Service Priority
  • IEEE 802.1d STP, IEEE 802.1w RSTP,802.1s MSTP VLAN redundancy
  • 4K 802.1Q VLAN, Port based VLAN, GVRP**, QinQ*
  • Supports IEEE 802.1ab LLDP, Cisco CDP; LLDP info can be viewed via Web/ Console/ LantechTM InstaConfig**/ LantechTM InstaView**
  • DHCP server / client / Port&Vlan based DHCP distribution / DHCP Option 82 supported
  • Mac based DHCP server to assign IP address that includes dumb switches in DHCP network
  • Bandwidth Control
    • Ingress packet filter and egress rate limit
    • Broadcast/multicast packet filter control
  • Relay alarm output system events
  • Miss-wiring avoidance
    • LED indicator
    • Email, traps, or SMS notification
  • Repowered auto ring restore
    • Ensure the switches in a ring to survive after power breakout is back
    • The status can be shown in NMS when each switch is back
  • TFTP/HTTP firmware upgrade; LantechTM InstaConfig** for multiple upgrade
  • System Event Log, SMTP Email alert, SMS mobile (text) and SNMP Trap for alarm support; 32 RMON counters
  • Security
    • SSL/SSH/ACL L2&L3
    • Port Security: MAC address entries/Filter/MAC-Port binding
    • IP Security: IP address security management to prevent unauthorized intruder.
    • Management access control with priority
    • Login Security: IEEE802.1X/RADIUS
    • HTTPS for secure access to the web interface
  • Static multicast forwarding forward reversed IGMP flow (MVR) with multicast packets binding with ports for IP surveillance application
  • Multicast static route for non- IGMP camera to prevent flooding; IGMP router port to assign query in ring and for reversed multicast video flow
  • Multicast VLAN registration* for metro video
  • IGMPv1,v2,v3 with Query mode for multi media; GMRP**
  • Factory reset button to restore setting to factory default
  • Watchdog design to auto reboot switch CPU is found dead
  • Optional environmental monitoring for system input voltage, current, ambient temperature
  • Supports DIDO (Digital Input/Digital Output)
  • IP30 metal housing with DIN rail and Wall-mount** design

Numéro de référence

8350-806IGS-3408DSFP8 10/100/1000T + 4 100/1000M SFP L2+ PTP Managed Industrial Switch; -20°C to 60°C; Dual 24/48VDC
8350-807IGS-3408DSFP-E8 10/100/1000T + 4 100/1000M SFP L2+ PTP Managed Industrial Switch; -40°C to 75°C; Dual 24/48VDC
8350-808IGS-3408DSFP-M8 10/100/1000T + 4 100/1000M SFP L2+ PTP Managed Industrial Switch; -20°C to 60°C; Environmental monitoring; Dual 24/48VDC
8350-809IGS-3408DSFP-M-E8 10/100/1000T + 4 100/1000M SFP L2+ PTP Managed Industrial Switch; -40°C to 75°C; Environmental monitoring; Dual 24/48VDC
8350-853IGS-3408DSFP-HV8 10/100/1000T + 4 100/1000M SFP L2+ PTP Managed Industrial Switch; -20°C to 60°C; Single 90~305VAC/120~430VDC
8350-854IGS-3408DSFP-HV-E8 10/100/1000T + 4 100/1000M SFP L2+ PTP Managed Industrial Switch; -40°C to 75°C; Single 90~305VAC/120~430VDC
8350-8531IGS-3408DSFP-HV-M8 10/100/1000T + 4 100/1000M SFP L2+ PTP Managed Industrial Switch; -20°C to 60°C; Environmental monitoring; Single 90~305VAC/120~430VDC
8350-8541IGS-3408DSFP-HV-M-E8 10/100/1000T + 4 100/1000M SFP L2+ PTP Managed Industrial Switch; -40°C to 75°C; Environmental monitoring; Single 90~305VAC/120~430VDC



OPTIONAL ACCESSORIES – DIN Rail Power

Model nameDescription
AD1048-24FS24VDC, 2A, Wide AC Input, Convection Cooled, DIN Rail or Wall Mounted, RoHS, Operating Temp. -20°C~50°C (ambient, derating each output at 2.5% per degree from 50°C ~ 75°C, which means the output is 18 Watts at 75°C.)
AD1024-24F24VDC, 1A, Wide AC Input, Convection Cooled, DIN Rail or Wall Mounted, RoHS, Operating Temp. -20°C~50°C (ambient, derating each output at 2.5% per degree from 50°C ~ 75°C, which means the output is 9 Watts at 75°C.)
AD1240-48S48VDC, 5A, Wide AC Input, Build-in fan Cooled, DIN Rail or Wall Mounted, RoHS, Operating Temp. -20°C~50°C (ambient, derating each output at 2.5% per degree from 50°C ~ 70°C)
AD1120-48F48VDC, 2.5A, Wide AC Input, Build-in fan Cooled, DIN Rail or Wall Mounted, RoHS, Operating Temp. -20°C~50°C (ambient, derating each output at 2.5% per degree from 50°C ~ 70°C)

Formations

Formation disponible sur demande

IES-2208CA-DNV

Switch LANTECH : IES-2208CA-DNV

Switch Industriel IES-2208CA-DNV : 8 10/100TX + 2 10/100/1000T/Dual Speed SFP Combo

IES-2208CA-DNV

IES-2208CA-DNV

IES-2208CA-DNV : 8* 10/100TX + 2 10/100/1000T/Dual Speed SFP Combo, administrable



  • Certification DNV pour réseaux embarqués marine et plate-forme Off-Shore
  • Fonction Pro-Ring pour la gestion des topologies réseau en anneau
  • Temps de cicatrisation inférieur à 20 ms
  • Alimentation protégée contre les inversions de polarité et sur-charge en courant

Général

  • switch Ethernet administrable 12 ports:
    • 8 ports 10/100TX
    • 2 ports combo RJ48 10/100/1000TX et module fibre Mini-GBIC, dual mode 10/100/1000T
  • méthode de commutation “stockage et retransmission”
  • taux de commutation: 5.6 Gbps
  • table d’adresses MAC 8K
  • bôiteir métal IP 30, fixation rail DIN et murale
  • entrées alimentation protégées contre les inversions de polarité et sur-charge en courant
  • fonction Pro-Ring pour la gestion des toplogies en anneau: Couple-Ring et Dual Homing, auto-cicatrisation en moins de 20 ms pour une toplogie à 50 switches
  • Port-Based VLAN, IEEE 802.1Q Tag VLAN, GVRP
  • 802.1d Spanning Tree & 802.1w RSTP
  • IGMP avec  fonctions Snooping et Query  pour les applications multimédia
  • entrée alimentation protégée contre les pics de tension jusqu’à 3000 Vdc
  • port Ethernet protégé contre les décharges électro-statiques, supporte jusqu’à 6000 Vdc
  • qualité de service (QoS) 802.1p, 4 files d’attente par port
  • journaux d’événements:
    • système Serveur/Client
    • alertes sytèmes envoyées par e-mail
    • sortie relais activée
  • Port Trunk avec LACP
  • supporte 802.1ab LLDP
  • vecteurs SNMP :
    • démarrage à froid
    • états de fonctionnement de l’alimentation
    • défaut d’authentification
    • port Link up/Link down
    • modification de la toplogie en anneau
  • mise à jour du microcode et sauvegarde/restauration du système par un accès TFTP

Détails Techniques

Spécifications Matériel



Normes standardsIEEE802.3 10Base-T Ethernet
IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T
IEEE802.3z fibre Gigabit
IEEE802.3x Flow Control and Back Pressure
IEEE802.3ad Port trunk with LACP
IEEE802.1d Spanning Tree
IEEE802.1w Rapid Spanning Tree
IEEE802.1p Class of Service
IEEE802.1Q VLAN Tag
IEEE802.1x Authentification (Radius)
IEEE802.1ab LLDP
ArchitectureTaux de commutation: 5.6 Gbps
Taux de transfertEthernet: 14 880 pps par port
Fast Ethernet: 148 800 pps par port
Gigabit Ethernet: 1,488,000 pps par port
Adresse MACTable d’adressage MAC 8K
Mémoire Flash
4 Mo
Mémoire Vive32 Mo
Connectique10/100TX: 8x ports RJ-45 avec fonction auto MDI/MDI-X
10/100/1000T/SFP Combo port: 2x RJ-45 + 2x 100/1000 SFP socket.
RS-232 connecteur: type RJ-45
Câble réseau10Base-T: 2-pair UTP/STP Cat. 3, 4, 5/ 5E, 6 cable
EIA/TIA-568 100-ohm (100m)
100Base-TX: 2-pair UTP/STP Cat. 5/ 5E, 6 cable
EIA/TIA-568 100-ohm (100m)
1000Base-TX: 2-pair UTP/STP Cat. 5/ 5E, 6 cable
EIA/TIA-568 100-ohm (100m)
Fibre optique
Multi-mode: 50/125um~62.5/125um
Mono-mode: 9/125um
distance: 2km (Multi-mode)/30km (Mono-mode)
Longueur d’onde: 1310nm (Multi-mode/Mono-mode)
ProtocoleCSMA/CD
Température de fonctionnement-40°C ~ 75°C
Température de stockage-40°C ~ 85°C
Protection surchage en courant
inversion de polarité
Alimentation9,5 à 60 Vdc
alimentation avec entrées redondantes
bloc de connexions détachable
Dimensions74 (W) x 105 (D) x 182 (H) mm
Indice de protection IP 30
CEMFCC Class A,
CE EN61000-4-2 (ESD),
CE EN61000-4-3 (RS),
CE EN61000-4-4 (EFT),
CE EN61000-4-5 (Surge),
CE EN61000-4-6 (CS),
CE EN61000-4-8,
CE EN61000-4-11,
CE EN61000-6-2,
CE EN61000-6-4
SécuritéCE/EN60950-1
Chocs et VibrationsIEC60068-2-32 (chute libre)
IEC60068-2-27 (choc)
IEC60068-2-6 (vibration)
MTBF220 111 h
FixationEn option : rail DIN ou murale

Spécifications Logiciel



AdministrationSNMP v1 v2c, v3/ Web/Telnet/CLI
SNMP MIB
RFC 1215 Traps MIB, RFC 1213 MIBII,
RFC 1157 SNMP MIB, RFC 1493 Bridge MIB,
RFC 2674 VLAN MIB, RFC 1643 EtherLike,
RFC 1757 Rmon, RSTP MIB,
Private MIB, PoE MIB, UPS MIB, LLDP MIB
VLANVLAN par port
VLAN à balisage 802.1Q (256 entrées)/ VLAN ID ( VLAN ID de 1 à 4094)
GVRP (256 Groupes)
Double VLAN à balisage (Q in Q)*
Port Trunk avec LACPLACP Port Trunk: 4 Trunk groupes/Maximum 4 membres trunk
LLDPpermet au switch de communiquer son identification et caractéistiques
Gestion de boucleSpanning tree 802.1d et Rapid Spanning Tree 802.1w
Pro-Ring
Pro-Ring, topologies anneau simple, multi-anneaux et Dual Homing.
fourni un chemin de repli et une auto-cicatrisation en moins de  10 ms
Qualité de service
 QoS, service par port, balisage et IPV4, IPv4/IPv6
Classe de Service
802.1p, file d’attente à 4 niveaux de priorité par port
Miroirs de port
 3 types: RX, TX et RX/TX
IGMPIGMP snooping v1,v2
diffusion de groupe (256) et requête IGMP
Sécurité IPtable de 10 adresses IP autorisées à administrer le switch
AuthentificationIEEE802.1x, RADIUS, SSH, SSL
Journal système
enregistrement de l’activité du système
Envoi d’alertesserveur SMTP, 6 comptes e-mails
Serveur de temps
 synchronisation avec un serveur de temps sur Internet
Sortie relais
sur défauts de connexion et alimentation
Alerte SNMP1. démarrage à froid
2. perte de lien
3. re-connexion
4. défaut d’authentification
5. défaut de configuration du port
6. modification de la topologie de l’anneau
DHCPclient, serveur
DNSfonction DNS client, supporte un serveur DNS primaire et secondaire
Mise à jour firmwaremise à jour via accès TFTP, sauvegarde et restauration par accès TFTP
Configurationfichier de configuration au format binaire pour une installation système rapide

Numéro de référence

ORDER INFORMATION

P/NModel nameDescription
8350-452-DNVIES-2208CA-DNV*8 10/100TX + 2 10/100/1000T/Dual Speed SFP Combo Managed Industrial Switch; -40°C to 75°C; DNV Type Approval*

OPTIONAL ACCESSORIES – DIN Rail Power

Model nameDescription
AD1048-24FS24VDC, 2A, Wide AC Input, Convection Cooled, DIN Rail or Wall Mounted, RoHS, Operating Temp. -20°C~50°C (ambient, derating each output at 2.5% per degree from 50°C ~ 75°C, which means the output is 18 Watts at 75°C.)
AD1024-24F24VDC, 1A, Wide AC Input, Convection Cooled, DIN Rail or Wall Mounted, RoHS, Operating Temp. -20°C~50°C (ambient, derating each output at 2.5% per degree from 50°C ~ 75°C, which means the output is 9 Watts at 75°C.)
AD1240-48S48VDC, 5A, Wide AC Input, Build-in fan Cooled, DIN Rail or Wall Mounted, RoHS, Operating Temp. -20°C~50°C (ambient, derating each output at 2.5% per degree from 50°C ~ 70°C)
AD1120-48F48VDC, 2.5A, Wide AC Input, Build-in fan Cooled, DIN Rail or Wall Mounted, RoHS, Operating Temp. -20°C~50°C (ambient, derating each output at 2.5% per degree from 50°C ~ 70°C)

OPTIONAL ACCESSORIES – Mini GBIC (SFP)

Model nameDescriptionModel nameDescription
8330-162MINI GBIC 1000SX (LC/0.5km) Transceiver8330-188LTSFP-1000BX-10KM Transceiver (WDM 1310)
8330-163MINI GBIC 1000SX2 (LC/2km) Transceiver8330-189LTSFP-1000BX-10KM Transceiver (WDM 1550)
8330-165MINI GBIC 1000LX (LC/10km) Transceiver8330-186LTSFP-1000BX-20KM Transceiver (WDM 1310)
8340-0591MINI GBIC 1000LHX (LC/40km) Transceiver8330-187LTSFP-1000BX-20KM Transceiver (WDM 1550)
8330-166MINI GBIC 1000XD (LC/50km) Transceiver8330-180LTSFP-1000BX-40KM Transceiver (WDM 1310)
8330-169MINI GBIC 1000XD (LC/60km) Transceiver8330-182LTSFP-1000BX-40KM Transceiver (WDM 1550)
8330-167MINI GBIC 1000ZX (LC/80km) Transceiver8330-181LTSFP-1000BX-60KM Transceiver (WDM 1310)
8330-170MINI GBIC 1000EZX (120km) Transceiver8330-183LTSFP-1000BX-60KM Transceiver (WDM 1550)
8330-060100Base FX 2KM, Multi-mode, LC Transceiver8330-184LTSFP-1000BX-80KM Transceiver (WDM 1490)
8330-065100Base FX 5KM, Multi-mode, LC Transceiver8330-185LTSFP-1000BX-80KM Transceiver (WDM 1550)
8330-061100Base LX 30KM, Single-mode, LC Transceiver8330-168MINI GBIC 1000T (100m) Transceiver

Formation

Formation disponible sur demande

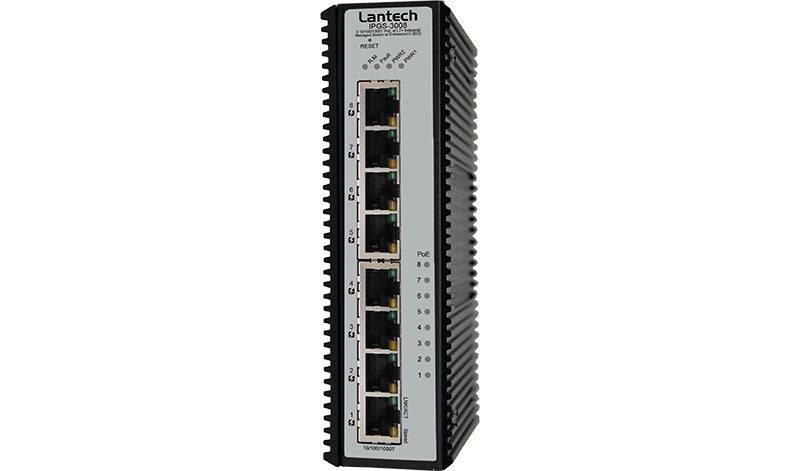

IPGS-3008

Switch Lantech : IPGS-3008

8x 10/100/1000TX PoE at/af administrable L2+, anneau G.8032, modèle 12V en option

IPGS-3008

IPGS-3008
  • PoE IEEE802.at/af, 30W par port
  • Gestion des ports PoE, détection et planification
  • Fonctions de redondance en anneau suivant norme ITU G.8032, cicatrisation de l’anneau <20 ms
  • Fonctions d’administration avancées : LCAP, IGMP v3, QinQ
  • Accès sécurisé : chiffrement SSH/SSL, 802.1X/Radius, https
  • Double entrées alimentation, version 12V (9.5V à 57 Vdc) ou (44V à 57 Vdc) pour la version 48V

Général

Le switch LANTECH IPGS-3008 est un switch puissant, à très haute performance L2+, port Gigabit avec 8 10/100/1000T w/8 PoE 802.3af/at, fournissant une rapidité et une sécurité accrue pour le déploiement d’agrégation de lien. Dans le cas d’utilisation en anneau ITU G,8032, il permet de permuter de direction en moins de 20ms, pour un simple anneau. Administration rapide et facile du QoS, VLAN, GVRP, Sécurité avancée pour SSH/SSL, TACACS+, Ingress/Egress ACL L2/L3, IGMPv1/v2/v3/Router port, DHCP server/relay, « Jumbo frames » ( largement utilisé pour les réseaux moyen et large..) Il support également le protocole « Cisco Discovery » (CDP) et LLDP, afin d’afficher une topology L2 map.



PoE AT/AF avec débit jusqu’à 8 Gigabit, détection et programmation du PoE

Le switch LANTECH IPGS-3008 supporte une programmation avancée de la fonction PoE pour la détection et la programmation. La détection PoE peut savoir si l’appareil PD ( Powered Device) est bloqué et permet ainsi un redémarrage. La programmation PoE permet d’alimenter en energie, l’appareil selon un timing déterminé. Chaque port PoE, permet d’être dans l’état « ON /OFF », permet de déterminer la puissance délivré à l’appareil PD. ( Watt, Température, courant, Voltage) Affichage par WebGUI

Protection de boucle : Re-alimentation en energie si la boucle est rompue, Alerte par email, trap ou SMS

Le switch IPGS-3008 possède d’autres fonctionalitées pour une stabilité accrue du réseau TCP/IP. Si le l’anneau est mal cablé ou défecteux, le switch IPGS-3008 indique son état via une LED et envoie un email, trap ou un SMS. Il se reconnecte utomatiquement en cas de coupure de courant. Le Status vous est envoyé par SMS, quand tous les switches sont ré-alimentés. La protéction de boucle, peut aussi éviter les débordements de  « broadcast », si un switch est inséré dans la boucle.

User friendly UI; Auto topology drawing*; DMI for dB value
The user friendly UI, innovative Auto topology drawing* and topology demo makes IPGS-3008 much easier to get hands-on. The switch also equips the RTC (real time clock) which can keep track of time always. The TX power/RX power raw data is automatically converted to dB values for installer, making it easier to calculate the fiber distance. The complete CLI enables professional engineer to configure setting by command line.

Enhanced G.8032 Ring < 20ms covering multicast packets for single ring recovery; Enhanced*/basic/auto*/train*mode; MSTP/RSTP
Lantech IPGS-3008 features enhanced G.8032 ring which can be self-healed in less than 20ms for single ring topology protection covering Multicast packets. It also supports various ring topologies that covers double ring, multi-chain (under enhanced ring*), train ring*, basic ring by easy setup than others. The innovative auto-Ring* configurator (auto mode) can calculate owner and neighbor in one step. It supports MSTP that allows RSTP over Vlan for redundant links with 8 MSTI.

DHCP server / client ; DHCP option 82 relay, port based*/Mac based DHCP*; DHCP Option 66*
It supports the standard DHCP server/client as well as DHCP option 82 relay. The port based DHCP* distribution can offer the same IP address on port base where there is need to replace the new device connecting to Lantech switches to avoid any network disruption. The DHCP Option 82 server* offers the convenience of policy setting on the switch. Mac based DHCP server* function binds a fixed IP address and a client Mac address to include dumb switches in DHCP network. It also supports DHCP Option 66*.

QoS by VLAN* for legacy device
QoS by VLAN* can allow switch to tag QoS by VLAN regardless the devices acknowledge QoS or not in which greatly enhance the bandwidth management in a network.

QinQ*, QoS QinQ* and GVRP* supported
It supports the QinQ, QoS QinQ, GVRP for large VLAN segmentation.

IGMPv3,GMRP*, router port, static multicast forwarding and multicast Ring protection
The unique multicast protection under enhanced G.8032 ring can offer immediate self-recovery instead of waiting for IGMP table timeout. It also supports IGMPv3, GMRP*, router port and static multicast forwarding binding by ports for video surveillance application.

Exported configuration text file; Factory reset button; CPU watchdog
The configuration file of Lantech IPGS-3008 can be exported in text file so that it can be edited and configured back to switch with ease for mass deployment. Factory reset button can restore the setting back to factory default and built-in watchdog design can automatically reboot the switch when CPU is found dead.

N-key** for back up, restore configuration and upgrade firmware
With N-key**, the configuration file can be mass auto backup, editable restored and auto upgrade firmware for easy maintenance.

Relay alarm and email/trap/SMS alerting
Featured with relay contact alarm function, the IPGS-3008 is able to connect with alarm system in case of power failure and port disconnection. In case of such event, it will send out email, SMS, trap alerting to predefined users.

Dual 12V~48V input with boost technology to 54V PoE output for 12V model, PoE budget 80W
Lantech IPGS-3008-12V is designed with dual input power at 9.5V~57VDC while IPGS-3008-48V allows with 44~57VDC input. The PoE budget for 12V input is 80W and for 24V input is 120W.

High reliability and extended working temperature
Lantech IPGS-3008 provides ±2000V EFT/SURGE and ±6000V contact ESD protection, which can reduce unstable situation caused by power line and Ethernet. It has high reliability and robustness coping with extensive EMI/RFI phenomenon, environmental vibration and shocks usually found in Automation, transportation, surveillance, Wireless backhaul, Semi-conductor factory and assembly lines.
The -E model can be used in extreme environments with an operating temperature range of -40°C to 75°C.

Fonction

  • 8 ports cuivre 10/100/1000TX, switch administrable de niveau 2+
  • 8 ports injecteurs PoE IEEE802.3at/af, puiisance fournie par port actif : jusqu’à 30W@54Vin; 15W @48Vin
  • Gamme d’entrée 9.5V à 57 Vdc pour le modèle 12V, puissance PoE disponible 80W avec une entrée 12V, 120W avec 24V en entrée
  • Gamme d’entrée 45V à 57 Vdc pour le modèle 48V, puissance PoE disponible 240W
  • taux de commutation: 16 Gbps
  • table d’adresses MAC 16K
  • trame jumbo 10 Ko pour l’ensemble des ports
  • protocole standard de gestion d’anneau ITU G.8032, temps de cicatrisation inférieur à 20 ms pour une toplogie en anneau simple
  • entrée alimentation protégée contre les transitoires en tension, jusqu’à 2000 Vdc
  • port Ethernet protégé contre les décharges électro-statiques, supporte jusqu’à 6000 Vdc
  • horloge temps réel intégrée
  • classe de service (CoS) 802.1p, 8 files d’attente par port
  • IEEE 802.1d STP, IEEE 802.1w RSTP,802.1s MSTP
  • Port-Based VLAN, IEEE 802.1Q Tag VLAN, GVRP, Q-in-Q, MVR
  • supporte 802.1ab LLDP, Cisco CDP
  • DHCP Serveur/Client/Option 82
  • mise à jour du microcode via un accès TFTP/HTTPS. Micro-code en redondance pour revenir en mode par défaut usine en cas de défaut de la mise à jour
  • journal d’événements système, e-mail d’alertes via serveur SMTP, via SMS, trap SNMP en cas de défauts, RMON (Remote Monitoring)
  • fonctions de sécurité:
    • sécurité au niveau du port: entrée /fltrage adresse MAC
    • sécurité au niveau de l’IP
    • sécurité au niveau de l’authentification: IEEE802.1x/RADIUS
    • SSH / SSL
    • Validation/Dévalidation Web MMI via Console/Telnet
  • IGMP v3 et Query  pour les applications multimédia
  • supporte la fonction le routage IGMP dynamique pour les caméras IP non IGMP
  • bouton reset pour retour en configuration usine
  • watchdog intégré
  • fonction de surveillance et d’alertes (Trap SNMP) de l’environnement de fonctionnment du switch (température, niveau de tension, charge en courant)

Détails Techniques

Normes standardsIEEE802.3 10Base-T Ethernet
IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T
IEEE802.3z fibre Gigabit
IEEE802.3x Flow Control and Back Pressure
IEEE802.3ad Port trunk with LACP
IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
IEEE802.1d Spanning Tree
IEEE802.1w Rapid Spanning Tree
IEEE802.1p Class of Service
IEEE802.1Q VLAN Tag
IEEE802.1x Authentification (Radius)
IEEE802.1ab LLDP
IEEE 802.3az Efficient Energy Ethernet
IEEE802.3at/af Power over Ethernet
Capacité de commutation
16 Gbps
Unité CentraleMarwell 1600 MHz, 512 Mo de RAM, 128 Mo de mémoire Flash
Taux de transfertEthernet: 14 880 pps par port
Fast Ethernet: 148 800 pps par port
Gigabit Ethernet: 1,488,000 pps par port
Table d’adresses MACCapacité 16K
Trame Jumbo10240 octets pour l’ensemble des ports
Connectique10/100/1000TX: 8x ports RJ-45 avec fonction auto MDI/MDI-X
Console d’administration : RS-232 connecteur type RJ-45
Alimentation et relais : bornier à vis 6 points
Câble réseau10Base-T: 2-pair UTP/STP Cat. 3, 4, 5/ 5E, 6 cable
EIA/TIA-568 100-ohm (100m)
100Base-TX: 2-pair UTP/STP Cat. 5/ 5E, 6 cable
EIA/TIA-568 100-ohm (100m)
1000Base-TX: 2-pair UTP/STP Cat. 5/ 5E, 6 cable
EIA/TIA-568 100-ohm (100m)
ProtocoleCSMA/CD
Surveillance des conditions d’environnement **Surveillance du niveau de tension et de la température, envoi d’une notification de défaut
Température de fonctionnement-20°C ~ 60°C (modèle standard)
-40°C ~ 75°C (modèle -E)
Température de stockage-40°C ~ 85°C
Alimentation9.5 Vdc à 57 Vdc pour la version 12 V
44 Vdc à 57 Vdc pour la version 48 V
alimentation avec entrées redondantes
Budget PoE240W pour une entrée de 44 à 57Vdc (modèle 48V)
80W pour une entrée 12V; 120W pour une entrée  24V(modèle 12V)
Puissance consommée10 W

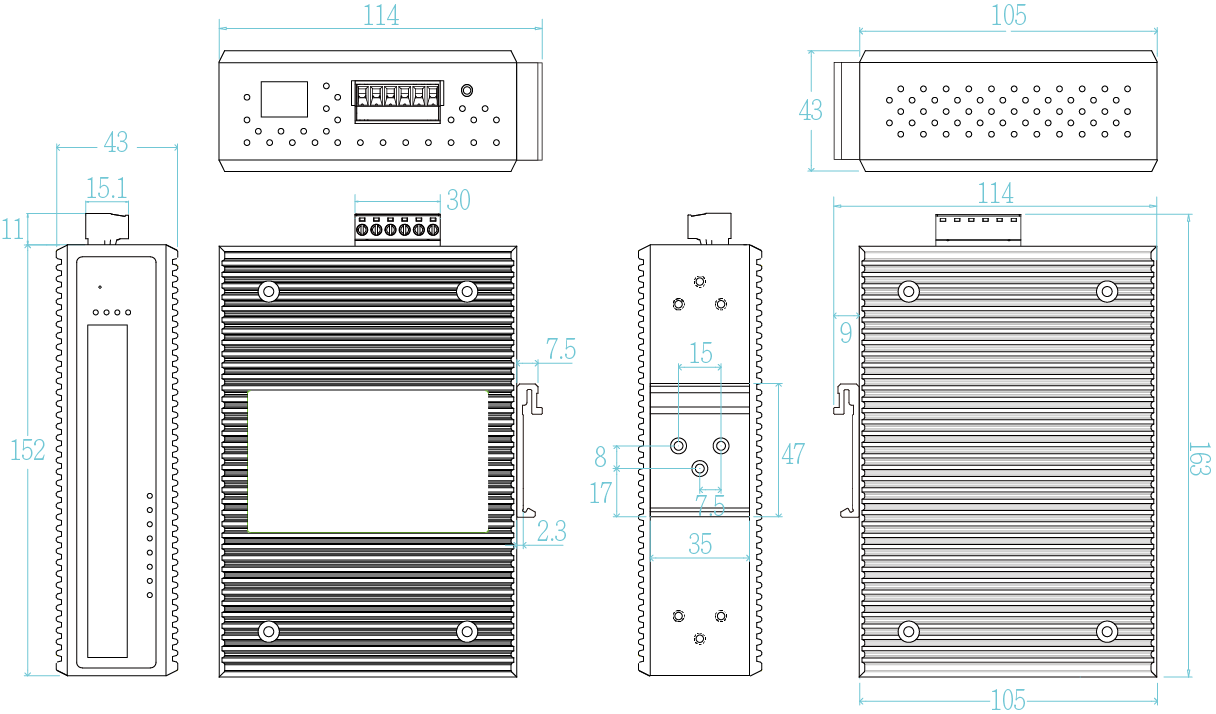

Dimensions43 (W) x 105 (D) x 152 (H) mm
Indice de protection IP 30
CEMFCC Part 15 Class A,
IEC/EN61000-6-2
CE EN55032 Class A
CE EN55024: CE EN61000-4-2 (ESD) Level 3
CE EN61000-4-3 (RS) Level 3
CE EN61000-4-4 (EFT) Level 3
CE EN61000-4-5 ED3 (Surge) Level 3
CE EN61000-4-6 (CS) Level 3
CE EN61000-4-8 (Magnetic field) Level 3
Chocs et VibrationsIEC60068-2-32 (chute libre)
IEC60068-2-27 (choc)
IEC60068-2-6 (vibration)
FixationRail DIN, en option kit de montage sur panneau

Caractéristiques logicielles IPGS-3008

Modes d’administrationSNMP v1 v2c, v3/ Web/Telnet/CLI
Support MIB
RFC 1215 Traps MIB*,
RFC 1213 MIBII
RFC 1158 MIBII
RFC 1157 SNMP MIB*,
RFC 1493 Bridge MIB*,
RFC 1573 IF MIB
RFC 2674 VLAN MIB,
Partial RFC 1757 RMON,
RFC 2674 Q-Bridge MIB*; Bridge MIB*,
LLDP MIB*
RSTP MIB*
Private MIB
ITU G.8032Version ITU G.8032 v2/2012, autocicatrisation en moins de 20 ms, compatible avec les switches disposant du protocole ITU G.8032
Port Trunk avec LACPLACP Port Trunk: 8 groupes/Maximum 10 membres par tronc
LLDPPermet au switch de communiquer son identification et caractéristiques
CDPProtocole de découverte CISCO pour le mappage réseau
VLANVLAN par port
VLAN à balisage 802.1Q (256 entrées)/ VLAN ID ( VLAN ID de 1 à 4096)
GVRP (256 Groupes)
IPv6/4Supporté
Gestion de boucleSpanning tree 802.1d et Rapid Spanning Tree 802.1w, Multiple Spanning Tree IEEE802.1s
Qualité de service
QoS, service par port, balisage et IPV4, IPv4 Different Service
Classe de Service
802.1p, file d’attente à 8 niveaux de priorité par port
Mise en miroir de ports
 3 modes : RX, TX et RX/TX
IGMPIGMP snooping v1,v2, v3
diffusion de groupe (256) et requête IGMP
Sécurité IPTable de 10 adresses IP autorisées à administrer le switch
AuthentificationIEEE802.1x, RADIUS
Sécurité du réseauAccès suivant protocole 802.1x et serveur RADIUS
Association adresses IP et MAC sur les ports (MAC-Poort binding)
Chiffrement SSL et SSH
Liste de contrôle d’accès (ACL L2/L3)
Interface de gestion WEN accessible en HTTPS
Filtrage Multidiffusion et IGMPDynamic:
Support IGMP snooping v1, v2,v3 and MLD snooping v1.
Support 256 multicast groups
Support IGMP and MLD query
Support Dynamic IGMP router port for non-IGMP cameria
Static:
Support 256 static multicast groups
Contrôle de la bande passanteSupport ingress packet filter and egress packet limit.
The egress rate control supports all of packet type.
Ingress filter packet type combination rules are Broadcast/Multicast/Flooded Unicast packet, Broadcast/Multicast packet, Broadcast packet only and all types of packet.
The packet filter rate can be set an accurate value through the pull-down menu for the ingress packet filter and the egress packet limit.
Journal système
Enregistrement de l’activité du système en local et sur serveur distant
Envoi d’alertesServeur SMTP, 8 comptes e-mails, SMS
Serveur de temps
Synchronisation avec un serveur de temps sur Internet
Sortie relais
sur défauts de connexion et alimentation
Alerte SNMP1. démarrage à froid
2. perte de lien
3. défaut d’authentification
4. modification de la toplogie de l’anneau
5. défaut d’alimentation
6. en option, conditions internes d’environnement anormales
DHCPClient, serveur, relais DHCP option 82
DNSFonction DNS client, supporte un serveur DNS primaire et secondaire
Mise à jour firmwareTransfert de fichier TFTP, sauvegarde et restauration de fichier par TFTP, par HTTP
Mode de configurationFichier au format TX

Références

P/NModel nameDescription
8350-986IPGS-3008-48V8 10/100/1000T w/8 PoE Mode A 802.3at/af 30W Managed Industrial Switch; dual 44~57VDC input; -20°C to 60°C
8350-987IPGS-3008-48V-E8 10/100/1000T w/8 PoE Mode A 802.3at/af 30W Managed Industrial Switch; dual 44~57VDC input; -40°C to 75°C
8350-988IPGS-3008-12V8 10/100/1000T w/8 PoE Mode A 802.3at/af 30W Managed Industrial Switch; dual 9.5V~57VDC input; -20°C to 60°C
8350-989IPGS-3008-12V-E8 10/100/1000T w/8 PoE Mode A 802.3at/af 30W Managed Industrial Switch; dual 9.5V~57VDC input; -40°C to 75°C
8850-100N-key ConfiguratorRJ45 connector dongle for firmware upgrade, auto/editable configuration backup and restoration; -20°C to 60C

OPTIONAL ACCESSORIES – DIN Rail Power

Model nameDescription
NDR-480 Series480W Single Output Industrial Din Rail Power; 90-264VAC / 127-370VDC Input Range; Cooling by free air convection; RoHS2 ; Operating Temp. -20°C~70°C (ambient, derating each output at 2.5% per degree from 50°C ~ 70°C)
NDR-240 Series240W Single Output Industrial Din Rail Power; 90-264VAC / 127-370VDC Input Range; Cooling by free air convection; RoHS2 ; Operating Temp. -20°C~70°C (ambient, derating each output at 2.5% per degree from 50°C ~ 70°C)
NDR-120 Series120W Single Output Industrial Din Rail Power; 90-264VAC / 127-370VDC Input Range; Cooling by free air convection; RoHS2 ; Operating Temp. -20°C~70°C (ambient, derating each output at 2.5% per degree from 50°C ~ 70°C; For 115VAC, please refer to derating curve on NDR-120 Series datasheet)
NDR-75 Series75W Single Output Industrial Din Rail Power; 90-264VAC / 127-370VDC Input Range; Cooling by free air convection; RoHS2 ; Operating Temp. -20°C~70°C (ambient, derating each output at 2.5% per degree from 50°C ~ 70°C; For 115VAC, please refer to derating curve on NDR-120 Series datasheet)

IPES IES 5416T

16 10/100TX + 4 10/100/1000T X-coded L2+ 8 PoE at/af Industrial Managed Switch w/ enhanced G.8032 Ring & PTP

  • Support PTPv2 two-step transparent clock @ 4 10/100/1000T ports
  • EN50155/61373/45545-2 verification
  • IEEE802.3at/af up to 30W per port; PoE management incl. detection and scheduling
  • Optional 12V input boost to 54V output for IEEE802.3at/af max.80W
  • Optional 72V input steps down to 48V output for IEEE 802.3at/af max.80W
  • Optional 110V input to 48V output for IEEE 802.3at/af max.80W
  • Enhanced G.8032 ring protection < 20ms with auto mode, enhanced mode, train mode and basic mode; Enhanced G.8032 ring covers multicast packets; MSTP 16MSTI /RSTP
  • Relay contact & environmental monitoring
  • Miss-wiring avoidance; Repowered auto ring restore (node failure protection)
  • IP67/IP54 housing; User friendly UI, including auto topology drawing; Complete CLI
  • N-key configurator** for upgrading, auto/editable configuration back up and restoration without computer
  • Support LACP link aggregation, IGMP v3/router port, DHCP server & DHCP Option82 for Port&VLAN based DHCP distribution, Mac based DHCP server, QoS by VLAN, SSH/SSL, HTTPS, INGRESS/EGRESS ACL L2/L3, IPv6, SMS

Overview

OVERVIEW
Lantech IPES-5416T-8-X (IP67/IP54) is a high performance L2+ (Gigabit uplink) switch with 16 10/100TX(d-coded) + 4 10/100/1000T(x-coded) w/8 PoE 802.3af/at Injectors by M12 provides L2 wire speed and advanced security function for network aggregation deployment. It delivers ITU G.8032 enhanced ring recovery less than 20ms including train coupling ring , and enhanced mode for easy configuration, comprehensive QoS, QoS by VLAN, advanced security including INGRESS/EGRESS ACL L2/L3, SSH/SSL, Mac based DHCP server, DHCP Option 82, DHCP server, IGMPv1/v2/v3/router port, QinQ* (double tag VLAN) which are important features required in train and large network. It also supports Cisco Discovery Protocol (CDP) and LLDP for Ciscoworks to detect the switch info and show on L2 map topology.
Lantech IPES-5416T-8-X (IP67/IP54) features hardware-based PTP IEEE1588 v2 two-step function which can allow 4 10/100/1000T uplinks to synchronize the network with precise accuracy.
Lantech IPES-5416T-8-X (IP67/IP54) supports IEEE802.3at/af standard which can feed HI-power up to 30W at each PoE port for big power consumption devices like PTZ IP camera, High power wireless AP etc. The advanced PoE management includes PoE detection and scheduling besides the regular PoE per port status. PoE detection can detect if the connected PD is hang up then restart the PD; PoE scheduling is to allow pre-set power feeding schedule upon routine time table. Per port PoE status can remotely On/Off the power and display information of voltage, current, watt and PoE temperature.
The Lantech IPES-5416T-8-X (IP67/IP54) series is designed with various dual power input at 12/24/48VDC input (12V model), 72V input to feed 48V PoE (72V model). The 110V model can accept dual 110V to feed 48V POE and feed PoE power 48V at PoE budget max 80W. Featured with relay contact alarm function, the IPES-5416T-8-X (IP67/IP54) is able to connect with alarm system in case of power failure or port disconnection events. The IPES-5416T-8-X (IP67/IP54) also provides ±2000V EFT and ±6000V ESD protection, which can reduce unstable situation caused by power line and Ethernet.
The IPES-5416T-8-X (IP67/IP54) also embedded several features for stronger and reliable network protection in an easy and intuitive way. When the pre-set ring configuration failed or looped by miss-wiring, Lantech IPES-5416T-8-X (IP67/IP54) is able to alert with the LED indicator and send out an email, traps or a SMS text. Repowered auto ring restore function (node failure protection) ensures the switches in a ring to survive after power breakout is back. The status can be shown in NMS when each switch is back. This feature prevents the broken ring and keep ring alive without any re-configuration needed. Loop protection is also available to prevent the generation of broadcast storm when a dumb switch is inserted in a closed loop connection.
DHCP option 82 and relay agent function (port&vlan based DHCP distribution) can offer the same IP address on port base or vlan base where there is need to replace the new device connecting to Lantech switches to avoid any network disruption. The built-in DHCP Option 82 server offers the convenience of policy setting on the switch. Mac based DHCP server function assigns an IP address according to its MAC address to include dumb switches in DHCP network.
Lantech InstaConfig software** provides easy configuration for mass deployment. The configuration file can also be exported in text file so that it can be edited and configured back to switch with ease for mass deployment. The built-in watchdog design can automatically reboot the switch when cpu is found dead.
The user friendly UI, innovative auto topology drawing and topology demo makes IPES-5416T-8-X (IP67/IP54) much easier to get hands-on. The switch also equips the RTC (real time clock) which can keep track of time always. The complete CLI enables professional engineer to configure setting by command line.
Lantech IPES-5416T-8-X (IP67/IP54) features enhanced G.8032 ring which can be self-healed in less than 20ms for single ring topology protection covering Multicast packets. It also supports various ring topologies that covers double ring, multi-chain (under enhanced ring), train ring, basic ring by easy setup than others. The innovative auto-Ring configurator (auto mode) can calculate owner and neighbor in one step. It supports MSTP that allows RSTP over Vlan for redundant links with 16 MSTI. The ITU G.8032 Ring and RSTP can be co-existed in the same switch with different ports for the most flexible protection.
The configuration file of Lantech IPES-5416T-8-X (IP67/IP54) can be exported in text file so that it can be edited and configured back to switch with ease for mass deployment. The optional N-key configurator offers firmware upgrade, auto/editable configuration back up and restoration without computer by adjusting the DIP switch.
QoS by VLAN can allow switch to tag QoS by VLAN regardless the devices acknowledge QoS or not in which greatly enhance the bandwidth management in a network.
In case of event alarm, the IPES-5416T-8-X (IP67/IP54) will immediately send an email & SMS text message to pre-defined addresses as well as SNMP Traps out. It provides 1DI and 1DO while disconnection of the specific port was detected; DO will activate the signal LED to alarm. DI can integrate the sensors for events and DO will trigger the alarm while sending alert information to IP network with email and traps.
The built-in environmental monitoring can detect switch overall temperature, voltage and current where can send the SNMP traps, email and SMS alert when abnormal.
The IPES-5416T-8-X (IP67/IP54) is designed to meet with critical network environment with IP67/IP54 aluminum enclosure and M12 connectors for water proof. It passed serious tests under extensive Industrial EMI and Safety standards. With EN45545-2 Fire & Smoke, and EN50155 verification, the IPES-5416T-8-X (IP67/IP54) is best for railway and vehicle applications. For more usage flexibilities, IPES-5416T-8-X (IP67/IP54) supports wide operating temperature from -40°C to 75°C.
The optional bypass relay is set to bypass the switch to the next one in 4ms when power is off in order to protect the network from crashing. Lantech bypass caters to remain in bypass mode until the switch is completely booting up when power is back to avoid another network lost. The bypass is also activated when detecting the CPU watchdog is ON.

Features

FEATURES
  • 16 10/100TX d-coded + 4 10/100/1000T x-coded w/8 PoE 802.3af/at Injectors Industrial Managed IP67 M12 Switch (Total 20 Ports Switch)
  • EN45545-2 Fire & Smoke, EN50155 and EN61373 shock/vibration verification
  • IEEE802.3at/af feeding power up to 30W per PoE port at 45~56VDC at port 1-8
  • PoE management including PoE detection and scheduling for PD (power devices)
  • 12V model can accept dual 12V power input and boost to 54V for PoE 802.3at/af max 80W budget
  • 72V model can accept dual 50.4~90V power input and feed 48V for PoE at/af at max 80W budget
  • 110V model can accept dual 43V~137.5V inputs and feed 48V for PoE at/af at max 80W budget
  • IEEE 1588 PTP v2 two-step at 4 Giga ports
  • Back-plane (Switching Fabric): 11.2Gbps
  • 16K MAC address table
  • 10KB Jumbo frame supported on all ports
  • User friendly UI, auto topology drawing, topology demo, complete CLI for professional setting
  • Enhanced G.8032 Ring protection in 20ms < 256 switches
    • Support various ring/chain topologies, including train dynamic coupling ring
    • Enhanced G.8032 ring configuration with ease
    • Auto ring configuration(auto mode) for single ring
    • Co-exist with RSTP on different ports
  • Provides EFT protection ±2000 VDC for power line.
  • Supports ±6000 VDC Ethernet ESD protection
  • LACP load balancing to distribute the load*
  • Built-in RTC (Real Time Clock) to keep track of time
  • Supports IEEE 802.1p Class of Service, per port provides 8 priority queues Port base, Tag Base and Type of Service Priority
  • IEEE 802.1d STP, IEEE 802.1w RSTP,802.1s MSTP VLAN redundancy
  • 4K 802.1Q VLAN, Port based VLAN, GVRP**, QinQ*
  • Supports IEEE 802.1ab LLDP, Cisco CDP; LLDP info can be viewed via Web/ Console/ LantechTM InstaConfig**/ LantechTM InstaView**
  • DHCP server / client / DHCP Option 82 relay / DHCP Option 82 server for Port&Vlan based DHCP distribution
  • Mac based DHCP server to assign IP address that includes dumb switches in DHCP network
  • Bandwidth Control
    • Ingress packet filter and egress rate limit
    • Broadcast/multicast packet filter control
  • Relay alarm output system events
  • Miss-wiring avoidance
    • LED indicator
    • Email, traps, or SMS notification
  • Repowered auto ring restore
    • Ensure the switches in a ring to survive after power breakout is back
    • The status can be shown in NMS when each switch is back
  • TFTP/HTTP firmware upgrade; LantechTM InstaConfig** for multiple upgrade
  • System Event Log, SMTP Email alert, SMS mobile (text) and SNMP Trap for alarm support; 32 RMON counters
  • Security
    • SSL/SSH/INGRESS/EGRESS ACL L2/L3
    • Port Security: MAC address entries/Filter/MAC-Port binding
    • IP Security: IP address security management to prevent unauthorized intruder.
    • Management access control with priority
    • Login Security: IEEE802.1X/RADIUS
    • HTTPS for secure access to the web interface
  • Static multicast forwarding forward reversed IGMP flow (MVR) with multicast packets binding with ports for IP surveillance application
  • Multicast static route for non- IGMP camera to prevent flooding; IGMP router port to assign query in ring and for reversed multicast video flow
  • Multicast VLAN registration* for metro video
  • IGMPv1,v2,v3 with Query mode for multi media; GMRP**
  • N-key** configurator for firmware upgrade, auto/editable configuration back up and restoration
  • Watchdog design to auto reboot switch CPU is found dead
  • Built-in environmental monitoring for system input voltage, current, ambient temperature
  • Supports DIDO (Digital Input/Digital Output)
  • IP67 aluminum housing with wall mount and DIN rail** design; IP54 aluminum housing with wall mount design
  • Bypass protection** – Bypass failed switch caused by power failure of switch to protect network intactness

References

With Bypass Protection

P/NModel nameDescription
8361-6179IPES-5416T-8-X-67-B16 10/100TX 8 PoE at/af up to 30W + 4 Giga T PTP L2+ Managed Industrial PoE M12 IP67 Switch; -40°C to 75°C;
w/ 1 pair GigaT bypass protection
8361-6049IPES-5416T-8-X-67-BB16 10/100TX 8 PoE at/af up to 30W + 4 Giga T PTP L2+ Managed Industrial PoE M12 IP67 Switch; -40°C to 75°C;
w/ 2 pair GigaT bypass protection
8361-6189IPES-5416T-8-X-67-12V-B16 10/100TX 8 PoE at/af up to 30W + 4 Giga T PTP L2+ Managed Industrial PoE M12 IP67 Switch; -40°C to 75°C;
w/ 1 pair GigaT bypass protection; 12V~48V dual input; 80W@12V; 120W@24V
8361-6059IPES-5416T-8-X-67-12V-BB16 10/100TX 8 PoE at/af up to 30W + 4 Giga T PTP L2+ Managed Industrial PoE M12 IP67 Switch; -40°C to 75°C;
w/ 2 pair GigaT bypass protection; 12V~48V dual input; 80W@12V; 120W@24V
8361-6159IPES-5416T-8-X-67-72V-B16 10/100TX 8 PoE at/af up to 30W + 4 Giga T PTP L2+ Managed Industrial PoE M12 IP67 Switch; -40°C to 60°C;
w/ 1 pair GigaT bypass protection; 50.4~90V dual input 80W PoE
8361-6069IPES-5416T-8-X-67-72V-BB16 10/100TX 8 PoE at/af up to 30W + 4 Giga T PTP L2+ Managed Industrial PoE M12 IP67 Switch; -40°C to 60°C;
w/ 2 pair GigaT bypass protection; 50.4~90V dual input 80W PoE
8361-6178IPES-5416T-8-X-54-B16 10/100TX 8 PoE at/af up to 30W + 4 Giga T PTP L2+ Managed Industrial PoE M12 IP54 Switch; -40°C to 75°C;
w/ 1 pair GigaT bypass protection
8361-6048IPES-5416T-8-X-54-BB16 10/100TX 8 PoE at/af up to 30W + 4 Giga T PTP L2+ Managed Industrial PoE M12 IP54 Switch; -40°C to 75°C;
w/ 2 pair GigaT bypass protection
8361-6188IPES-5416T-8-X-54-12V-B16 10/100TX 8 PoE at/af up to 30W + 4 Giga T PTP L2+ Managed Industrial PoE M12 IP54 Switch; -40°C to 75°C;
w/ 1 pair GigaT bypass protection; 12V~48V dual input; 80W@12V; 120W@24V
8361-6058IPES-5416T-8-X-54-12V-BB16 10/100TX 8 PoE at/af up to 30W + 4 Giga T PTP L2+ Managed Industrial PoE M12 IP54 Switch; -40°C to 75°C;
w/ 2 pair GigaT bypass protection; 12V~48V dual input; 80W@12V; 120W@24V
8361-6158IPES-5416T-8-X-54-72V-B16 10/100TX 8 PoE at/af up to 30W + 4 Giga T PTP L2+ Managed Industrial PoE M12 IP54 Switch; -40°C to 60°C;
w/ 1 pair GigaT bypass protection; 50.4~90V dual input 80W PoE
8361-6068IPES-5416T-8-X-54-72V-BB16 10/100TX 8 PoE at/af up to 30W + 4 Giga T PTP L2+ Managed Industrial PoE M12 IP54 Switch; -40°C to 60°C;
w/ 2 pair GigaT bypass protection; 50.4~90V dual input 80W PoE

Without Bypass Protection

P/NModel nameDescription
8360-6179IPES-5416T-8-X-6716 10/100TX 8 PoE at/af up to 30W + 4 Giga T PTP L2+ Managed Industrial PoE M12 IP67 Switch; -40°C to 75°C
8360-6189IPES-5416T-8-X-67-12V16 10/100TX 8 PoE at/af up to 30W + 4 Giga T PTP L2+ Managed Industrial PoE M12 IP67 Switch; -40°C to 75°C;
12V~48V dual input; 80W@12V; 120W@24V
8360-6159IPES-5416T-8-X-67-72V16 10/100TX 8 PoE at/af up to 30W + 4 Giga T PTP L2+ Managed Industrial PoE M12 IP67 Switch; -40°C to 60°C;
50.4~90V dual input 80W PoE
8360-7379IPES-5416T-8-X-67-110V16 10/100TX 8 PoE at/af up to 30W + 4 Giga T PTP L2+ Managed Industrial PoE M12 IP67 Switch; -40°C to 75°C;
43~137.5V dual input 80W PoE
8360-6178IPES-5416T-8-X-5416 10/100TX 8 PoE at/af up to 30W + 4 Giga T PTP L2+ Managed Industrial PoE M12 IP54 Switch; -40°C to 75°C
8360-6188IPES-5416T-8-X-54-12V16 10/100TX 8 PoE at/af up to 30W + 4 Giga T PTP L2+ Managed Industrial PoE M12 IP54 Switch; -40°C to 75°C;
12V~48V dual input; 80W@12V; 120W@24V
8360-6158IPES-5416T-8-X-54-72V16 10/100TX 8 PoE at/af up to 30W + 4 Giga T PTP L2+ Managed Industrial PoE M12 IP54 Switch; -40°C to 60°C;
50.4~90V dual input 80W PoE
8360-7378IPES-5416T-8-X-54-110V16 10/100TX 8 PoE at/af up to 30W + 4 Giga T PTP L2+ Managed Industrial PoE M12 IP54 Switch; -40°C to 75°C;
43~137.5V dual input 80W PoE

Optional accessories

odel nameDescription
ECONM23-5P(F)70CM CABLEM23 power cable 90 degree angle, 70cm, 5 pin, Made in Taiwan
ECONM23-5P(F)70CM CABLE-CM23 power cable 90 degree angle, 70cm, 5 pin, Made in China
ECAB124030MJS4 Pin M12 RJ45 Male 3 Meters; STP Cable
ECABM12X83MSTP8 Pin M12 X-coded RJ45 Male 3 METER, STP CABLE w/ Shielding

Training

Training on demand available

Specifications

SPECIFICATIONS

Hardware Specifications

StandardsIEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX
IEEE802.3ab 1000Base-T
IEEE802.3x Flow Control and Back Pressure
IEEE802.3ad Port trunk with LACP
IEEE802.1d Spanning Tree
IEEE802.1w Rapid Spanning Tree
IEEE802.1s Multiple Spanning Tree
IEEE 802.3ad Link Aggregation Control Protocol (LACP)
IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
IEEE 802.1X User Authentication (Radius)
IEEE802.1p Class of Service
IEEE802.1Q VLAN Tag
IEEE802.3at/af Power over Ethernet
Switch ArchitectureBack-plane (Switching Fabric): 11.2Gbps
Transfer Rate14,880pps for Ethernet port
148,800pps for Fast Ethernet port
1,488,000pps for Gigabit Ethernet / Gigabit Fiber port
CPUMarvell 800Mhz
RAM256M Byte
Flash128M Byte
Mac Address16K MAC address table
Jumbo frame10KB on all ports
Connectors10/100TX: 16 x ports M12 4-pole D-coded with Auto MDI/MDI-X function
10/100/1000T: 4 x ports M12 8-pole X-coded with Auto MDI/MDI-X function
RS-232 connector: 1 x M12 5-pole A-coded
Power Input connector : 1 x M23 5-pole A-coded
Relay contact : 1 x M12 5-pole A-coded
Network Cable10Base-T: 2-pair UTP/STP Cat. 3, 4, 5/ 5E/ 6 cable
EIA/TIA-568 100-ohm (100m)
100Base-TX: 2-pair UTP/STP Cat. 5/ 5E/ 6 cable
EIA/TIA-568 100-ohm (100m)
1000Base-T: 2-pair UTP/STP Cat. 5/ 5E/ 6 cable
EIA/TIA-568 100-ohm (100m)
Bypass Protection**High-speed optical switching (<4ms)
Minimal insertion loss (Max 1.6dB as Bypass Mode)
ProtocolCSMA/CD
LEDPer unit: Power 1 (Green), Power 2 (Green), Fault (Red), RM (Green)
Ethernet port: Link/Activity (Green), Speed (Green); Optical fiber: Link/Activity (Green)
DI/DO1 Digital Input (DI) :
Level 0: -30~2V / Level 1: 10~30V
Max. input current:8mA
1 Digital Output(DO): Open collector to 40 VDC, 200mA
Operating Humidity5% ~ 95% (Non-condensing)
Operating Temperature-40°C~75°C / -40°F~167°F
(72V model: -40°C~60°C / -40°F~140°F)
Storage Temperature-40°C~85°C / -40°F~185°F
Power Supply44~57VDC on standard model
9.5~57VDC on 12V model
50.4~90VDC on 72V model
43~137.5VDC on 110V model with input isolation
PoE Budget240W for 44~57V input
(55V input is recommended for 802.3at 30W applications)
80W for 12V input
120W for 24V input
80W for 72V/110V Input
PoE pin assignmentM12 port # 1~#8 support IEEE 802.3at/af End-point, Alternative A mode. Per port provides 30W PoE at/ 15W PoE af.
Power ConsumptionMax. 13W 12V~48VDC input
Max. 16W 72VDC/110VDC input
Case DimensionIP67 Aluminum case
285mm(W)x200mm(H)x84.4mm(D)
IP54 Aluminum case
250mm(W)x179mm(H)x82mm(D)
Weight2.1kgs(IP67) 1.8kgs(IP54)
InstallationIP67 model: DIN Rail** and Wall Mount Design
IP54 model: Wall Mount Design
EMI & EMSFCC Class A,
CE EN55022 Class A, CE EN55024, CE EN61000-4-2, CE EN61000-4-3, CE EN61000-4-4, CE EN61000-4-5, CE EN61000-4-6, CE N61000-4-8, EN61000-4-11
Stability TestingIEC60068-2-32 (Free fall), EN61373 (Shock and Vibration)
MTBF217,019 hrs
Verifications & reportEN50155/EN50121-3-2/EN50121-4 verification
EN45545-2 R24/R25 (EN ISO 4589-2, EN ISO 5659-2, NF X70-100-1 & 2) Fire & Smoke verification
SafetyEN 60950-1 (Standard model and 110V model)
Warranty5 years

Software Specifications

ManagementSNMP v1 v2c, v3/ Web/Telnet/CLI
SNMP MIBRFC 1215 Traps MIB,
RFC 1213 MIBII
RFC 1158 MIBII
RFC 1157 SNMP MIB,
RFC 1493 Bridge MIB,
RFC 1573 IF MIB
RFC 2674 VLAN MIB,
Partial RFC 1757 RMON,
RFC 2674 Q-Bridge MIB; Bridge MIB,
LLDP MIB*
RSTP MIB*
Private MIB
ITU G.8032Support ITU G.8032 v2/2012 for Ring protection in less than 20ms for self-heal recovery (basic mode)
Support various ring/chain topologies
Includes train dynamic coupling ring
Enhanced G.8032 ring configuration with ease
Co-exist with RSTP on different ports
PoE Management
  1. PoE Detection to check if PD is hang up then restart the PD
  2. PoE Scheduling to On/OFF PD upon routine time table
  3. On/ Off, voltage, current, watts, temperature
PTP v2Support hardware-based IEEE1588 PTP v2, End to End (2-step) and Peer to Peer (2-step) modes in Transparent Clock, with 4 10/100/1000T
User friendly UI
  1. Auto topology drawing
  2. Topology demo
  3. Auto configuration for G.8032(auto mode) for single ring
  4. Complete CLI for professional setting
Port Trunk with LACPLACP Port Trunk: 8 Trunk groups/Maximum 16 trunk members
LLDPSupports LLDP to allow switch to advise its identification and capability on the LAN
CDPCisco Discovery Protocol for topology mapping
Environmental MonitoringSystem status for input voltage, current and ambient temperature to be shown in GUI and sent alerting if any abnormal status
VLANPort Based VLAN
IEEE 802.1Q Tag VLAN (256 entries)/ VLAN ID (Up to 4K, VLAN ID can be assigned from 1 to 4096.)
GVRP(256 groups)**, QinQ*
IPv6/4Present
Spanning TreeSupports IEEE802.1d Spanning Tree and IEEE802.1w Rapid Spanning Tree, IEEE802.1s Multiple Spanning Tree
Quality of ServiceThe quality of service determined by port, Tag and IPv4 Type of service, IPv4 Differentiated Services Code Points – DSCP
Class of ServiceSupport IEEE802.1p class of service, per port provides 8 priority queues
QoS by VLANTagged QoS by VLAN for all devices in the network
IP SecuritySupports 10 IP addresses that have permission to access the switch management and to prevent unauthorized intruder.
Login SecuritySupports IEEE802.1X Authentication/RADIUS
Port MirrorSupport 3 mirroring types: “RX, TX and Both packet”
Network SecuritySupport 10 IP addresses that have permission to access the switch management and to prevent unauthorized intruder.
802.1X access control for port based and MAC based authentication/MAC-Port binding
Management access control with priority
Ingress/Egress ACL L2/L3
SSL/ SSH for Management
HTTPS for secure access to the web interface
TACACS+ for Authentication
IGMPSupport IGMP snooping v1,v2,v3; Supports IGMP static route; 256 multicast groups; IGMP router port ; IGMP query; GMRP**
MVRStatic multicast forwarding forward reversed IGMP flow (MVR) with multicast packets binding with ports for IP surveillance application
Bandwidth ControlSupport ingress packet filter and egress packet limit.
The egress rate control supports all of packet type.
Ingress filter packet type combination rules are Broadcast/Multicast/Flooded Unicast packet, Broadcast/Multicast packet, Broadcast packet only and all types of packet.
The packet filter rate can be set an accurate value through the pull-down menu for the ingress packet filter and the egress packet limit.
RTCBuilt-in Real Time Clock to keep track of time always
Flow ControlSupports Flow Control for Full-duplex and Back Pressure for Half-duplex
System LogSupports System log record and remote system log server
SMTP/Text SMSSupports SMTP Server and 8 e-mail accounts for receiving event alert; can send SMS text alert via mobile
Relay AlarmProvides one relay output for port breakdown, power fail and alarm.
Alarm Relay current carry ability: 1A @ DC24V
Protection
  1. Miss-wiring avoidance
  2. Repowered auto ring restore
  3. Loop protection
SNMP TrapUp to 10 trap stations; trap types including:

  1. Device cold start
  2. Authorization failure
  3. Port link up/link down
  4. DI/DO open/close
  5. Typology change(ITU ring)
  6. PoE ping failure
  7. Power failure
  8. Environmental abnormal
DHCPProvide DHCP Client/ DHCP Server/DHCP Option 82/ DHCP Option 82 server/ Port based&VLAN based DHCP distribution (DHCP relay agent)
Mac based DHCP ServerAssign IP address by Mac that can include dumb switch in DHCP network
DNSProvide DNS client feature and support Primary and Secondary DNS server.
SNTPSupports SNTP to synchronize system clock in Internet
Firmware UpdateSupports TFTP firmware update, TFTP backup and restore; HTTP firmware upgrade; LantechTM InstaConfig** for multiple upgrade
N-Key Configurator**RJ45 dongle for firmware upgrade, auto / editable configuration backup/restoration
Configuration
upload and download		Supports text configuration file for system quick installation
IfAliasEach port allows an alphabetic string of 128-byte assigned as its own unique name via the SNMP or CLI interface
*Future release
**Optional
