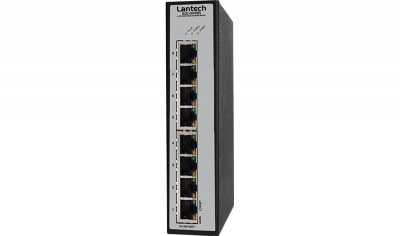

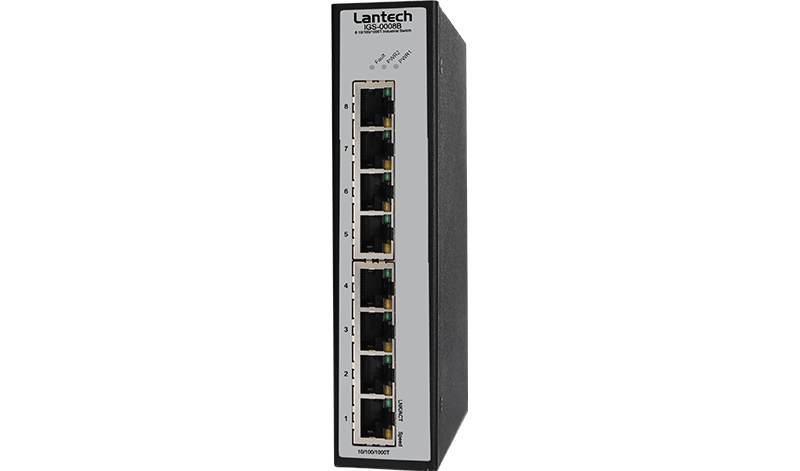

IGS-0008B
Connection
Galvanic isolation for dual 48V, 12V, 24V input with max PoE budget
The IPGS-0008B supports IEEE802.3at/af standard which can feed HI-power up to 30W at each PoE port for big power consumption devices like PTZ IP camera, high power wireless AP etc.
Description
8 10/100/1000T Industrial Unmanaged Switch
- Supports 10K bytes jumbo frame
- Wide-range dual isolated power 9.5~60V input
- Provides ESD/ EFT protection; Voltage transient protection
- DIN rail and wall mount** design with IP30 enclosure
Le switch Lantech IGS-0008B, est un switch 8-Port 10/100/1000T Industriel. Afin d’augmenter la fiabilité, il fournit une alimentation redondante, detecte la tension d’entée et accèpte une tension étendue de 9.5v à 60VDC.
Pour une meilleure stabilité et performance, le IGS-008B supporte les trames “jumbo ” jusqu’à 10k Octet.
Le IGS -0008B, est conçu pour satisfaire les demandes les plus exigentes de l’industrie et est fournit avec un boitier IP30. Il a été testé pour satisfaire les exigence de compatibilité electromagnetique et interférences. C’est un switch robuste, anti choc, stabilité aux tests de vibration.
IGS-0008B is compact in size and easy to be installed with DIN rail and wall mount** kits. IGS-0008B is applicable in many kinds of industrial environments.
Hardware Specifications
| Standards | IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX IEEE 802.3ab 1000Base-T IEEE802.3x Flow Control and Back Pressure |
| Switch Architecture | Back-plane (Switching Fabric): 16Gbps |
| Transfer Rate | 14,880pps for Ethernet port 148,800pps for Fast Ethernet port 1,488,000pps for Gigabit Ethernet / Gigabit Fiber port |
| Mac Address | 16K MAC address table |
| Jumbo Frame | 10Kbytes |
| Connectors | 10/100/1000T: 8 x RJ-45 |
| Network Cable | 10Base-T: 2-pair UTP/STP Cat. 3, 4, 5, 6 cable EIA/TIA-568 100-ohm (100m) 100Base-TX: 2-pair UTP/STP Cat. 5, 6 cable EIA/TIA-568 100-ohm (100m) |
| Protocol | CSMA/CD |
| LED | Per unit: Power 1 (Green), Power 2 (Green), Fault(Amber) Per port: Link/Activity (Green), Speed (1000Mbps Amber) |
| Reserve polarity protection | Present |
| Power Supply | 9.5~60 VDC, Dual isolated input with removable terminal block |
| Power Consumption | 5 Watts |
| Operating Humidity | 5% ~ 95% (Non-condensing) |
| Operating Temperature | -20°C~60°C / -4°F~140°F (Standard model) -40°C~75°C / -40°F~167°F (-E model) |
| Storage Temperature | -40°C~85°C / -40°F~185°F |
| Case Dimension | Metal case. IP30, 35mm (W) x 152mm (H) x 105mm (D) |
| Installation | DIN Rail and Wall Mount** Design |
| EMI & EMS | FCC Class A, CE EN61000-4-2 (ESD), CE EN61000-4-3 (RS), CE EN-61000-4-4 (EFT), CE EN61000-4-5 (Surge), CE EN61000-4-6 (CS), CE EN61000-4-8, CE EN61000-4-11, CE EN61000-4-12, CE EN55022 Class A, CE EN55024 |
| Stability Testing | IEC60068-2-32 (Free fall) IEC60068-2-27 (Shock) IEC60068-2-6 (Vibration) |
| Warranty | 5 years |
| P/N | Modèle | Description |
|---|---|---|
| 8350-835 | IGS-0008B | 8 10/100/1000T Switch Industriel, Utilisation “Standard” de Temperature (-20°C~60°C) |
| 8350-836 | IGS-0008B-E | 8 10/100/1000T Switch Industriel, Utilisation en température “étendu” (-40°C~75°C) |
ACCESSOIRES OPTIONNELS
| Nom du Modele | Description |
|---|---|
| AD1048-24FS | 24VDC, 2A, Wide AC Input, Convection Cooled, DIN Rail or Wall Mounted, RoHS, Operating Temp. -20°C~50°C (ambient, derating each output at 2.5% per degree from 50°C ~ 75°C, which means the output is 18 Watts at 75°C.) |
| AD1024-24F | 24VDC, 1A, Wide AC Input, Convection Cooled, DIN Rail or Wall Mounted, RoHS, Operating Temp. -20°C~50°C (ambient, derating each output at 2.5% per degree from 50°C ~ 75°C, which means the output is 9 Watts at 75°C.) |
| AD1240-48S | 48VDC, 5A, Wide AC Input, Build-in fan Cooled, DIN Rail or Wall Mounted, RoHS, Operating Temp. -20°C~50°C (ambient, derating each output at 2.5% per degree from 50°C ~ 70°C) |
| AD1120-48F | 48VDC, 2.5A, Wide AC Input, Build-in fan Cooled, DIN Rail or Wall Mounted, RoHS, Operating Temp. -20°C~50°C (ambient, derating each output at 2.5% per degree from 50°C ~ 70°C) |
