IGS-0008B

igs-0008b

8 10/100/1000T Industrial Unmanaged Switch

  • Supports 10K bytes jumbo frame
  • Wide-range dual isolated power 9.5~60V input
  • Provides ESD/ EFT protection; Voltage transient protection
  • DIN rail and wall mount** design with IP30 enclosure

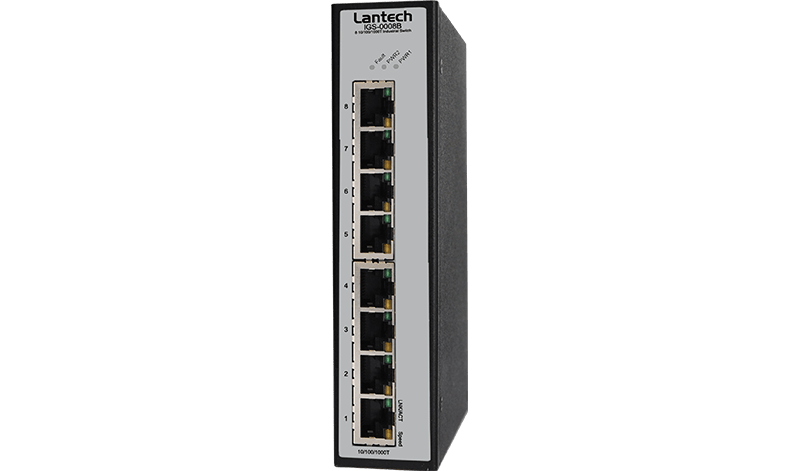

Le switch  Lantech IGS-0008B, est un switch 8-Port 10/100/1000T Industriel. Afin d’augmenter la fiabilité, il fournit une alimentation redondante, detecte la tension d’entée et accèpte une tension étendue de 9.5v à 60VDC.

Pour une meilleure stabilité et performance, le IGS-008B supporte les trames “jumbo ” jusqu’à 10k Octet.

Le IGS -0008B, est conçu pour satisfaire les demandes les plus exigentes de l’industrie et est fournit avec un boitier IP30. Il a été testé pour satisfaire les exigence de compatibilité electromagnetique et interférences. C’est un switch robuste, anti choc, stabilité aux tests de  vibration.

IGS-0008B is compact in size and easy to be installed with DIN rail and wall mount** kits. IGS-0008B is applicable in many kinds of industrial environments.

Hardware Specifications

StandardsIEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3ab 1000Base-T
IEEE802.3x Flow Control and Back Pressure
Switch ArchitectureBack-plane (Switching Fabric): 16Gbps
Transfer Rate14,880pps for Ethernet port
148,800pps for Fast Ethernet port
1,488,000pps for Gigabit Ethernet / Gigabit Fiber port
Mac Address16K MAC address table
Jumbo Frame10Kbytes
Connectors10/100/1000T: 8 x RJ-45
Network Cable10Base-T: 2-pair UTP/STP Cat. 3, 4, 5, 6 cable
EIA/TIA-568 100-ohm (100m)
100Base-TX: 2-pair UTP/STP Cat. 5, 6 cable
EIA/TIA-568 100-ohm (100m)
ProtocolCSMA/CD
LEDPer unit: Power 1 (Green), Power 2 (Green), Fault(Amber)
Per port: Link/Activity (Green), Speed (1000Mbps Amber)
Reserve polarity protectionPresent
Power Supply9.5~60 VDC, Dual isolated input with removable terminal block
Power Consumption5 Watts
Operating Humidity5% ~ 95% (Non-condensing)
Operating Temperature-20°C~60°C / -4°F~140°F (Standard model)
-40°C~75°C / -40°F~167°F (-E model)
Storage Temperature-40°C~85°C / -40°F~185°F
Case DimensionMetal case. IP30,
35mm (W) x 152mm (H) x 105mm (D)
InstallationDIN Rail and Wall Mount** Design
EMI & EMSFCC Class A,
CE EN61000-4-2 (ESD),
CE EN61000-4-3 (RS),
CE EN-61000-4-4 (EFT),
CE EN61000-4-5 (Surge),
CE EN61000-4-6 (CS),
CE EN61000-4-8,
CE EN61000-4-11,
CE EN61000-4-12,
CE EN55022 Class A, CE EN55024
Stability TestingIEC60068-2-32 (Free fall)
IEC60068-2-27 (Shock)
IEC60068-2-6 (Vibration)
Warranty5 years
P/NModèleDescription
8350-835IGS-0008B8 10/100/1000T Switch Industriel, Utilisation “Standard” de Temperature (-20°C~60°C)
8350-836IGS-0008B-E8 10/100/1000T Switch Industriel, Utilisation en température “étendu” (-40°C~75°C)



ACCESSOIRES OPTIONNELS

Nom du ModeleDescription
AD1048-24FS24VDC, 2A, Wide AC Input, Convection Cooled, DIN Rail or Wall Mounted, RoHS, Operating Temp. -20°C~50°C (ambient, derating each output at 2.5% per degree from 50°C ~ 75°C, which means the output is 18 Watts at 75°C.)
AD1024-24F24VDC, 1A, Wide AC Input, Convection Cooled, DIN Rail or Wall Mounted, RoHS, Operating Temp. -20°C~50°C (ambient, derating each output at 2.5% per degree from 50°C ~ 75°C, which means the output is 9 Watts at 75°C.)
AD1240-48S48VDC, 5A, Wide AC Input, Build-in fan Cooled, DIN Rail or Wall Mounted, RoHS, Operating Temp. -20°C~50°C (ambient, derating each output at 2.5% per degree from 50°C ~ 70°C)
AD1120-48F48VDC, 2.5A, Wide AC Input, Build-in fan Cooled, DIN Rail or Wall Mounted, RoHS, Operating Temp. -20°C~50°C (ambient, derating each output at 2.5% per degree from 50°C ~ 70°C)

Pas de formation particulière sur un switch non administrable.

Formation disponible sur switches administrables. – N’hésitez pas à nous contacter.
