Ateva Technologies

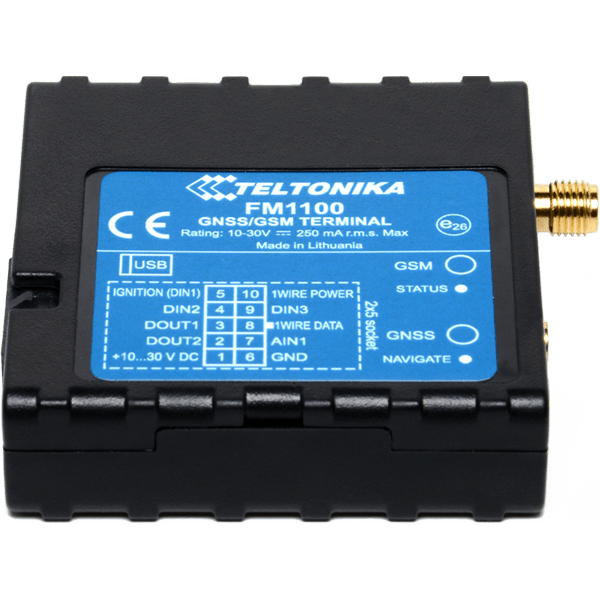

FM1100 – GPS Tracker sans battery interne

Un tout petit appareil avec des capacités incroyables. Le FM1100 est l’appareil idéal pour vos applications de tracking

FM1100 – Système GPS Tracking, sans antenne et sans batterie

  • Petite Taille
  • Car tracking
  • Opération de paramétrisation (acquire & send)
  • scenaries intégrés
    • Dépassement de vitesse
    • Conduite autorisée  (50 iButton keys)
    • Immobilisateur
  • Tracking à la volée
  • Faible consommation d’énergie en mode “sommeil”
  • Supporte les fonctionlaités LV-CAN200, ALL-CAN300
  • 1-wire (driver ID or temperature monitoring; RFID (Mifare) support)

TECHNOLOGYHARDWAREFIRMWARE
GNSS iExternal GSM antenna LV-CAN support
GPRS iExternal GNSS antenna ALL-CAN support
SMS iDIN – digital input – 3 Ignition detection
AIN – analog input – 1Geo-fence
DOUTSleep/Deep sleep i
1-Wire® – 1Overspeeding detection i
AccelerometerFOTA i
IP41Remote Log i
16MB memoryGPRS commands i
10 – 30V RFID 1-Wire® i
Overvoltage protectioniButton 1-Wire® i
1x SIM CardTemp. 1-Wire® i
USB 2.0 InterfaceImmobilizer i
Green driving i
Jamming detection i
NTP time synch. i
SMS event i
Odometer i
Trip detection i
Integrated scenarios i
Remote configuration over SMS i
Offline tracking i
Auto Geofencing i

GSM:

  • Quad-band 900/1800 MHz; 850/1900 MHz
  • GPRS class 10 (up to 85,6 kbps);
  • SMS (text/data)

GPS/GLONASS:

  • NMEA protocol compatible. Messages: GGA, GGL, GSA, GSV, RMC, VTG, TXT
  • 32 channel GPS/GLONASS receiver
  • -161 dBm sensitivity

Interface:

  • 1 Digital Input Reserved for Ignition Status Monitoring
  • 2 Digital Inputs
  • 1 Analog Input (10V or 30V range)
  • 2 Digital Open-collector Outputs (connecting external relays, LED, buzzers etc.)
  • 1-Wire® protocol
  • Power supply (+10…+30) V DC
  • 2 Status LEDs
  • USB Port
  • Configuration and firmware upload (FOTA and via USB cable)
  • External GSM antenna (SMA connector)
  • External GPS/GLONASS antenna (MCX connector)

Features:

  • GPS/GLONASS and I/O data acquisition
  • Real Time tracking
  • Smart algorithm of data acquisition (time, distance, angle, ignition and event based)
  • Sending acquired data via GPRS (TCP/IP and UDP/IP protocols)
  • Smart algorithm of GPRS connections (GPRS traffic saving)
  • Operating in roaming networks (preferred GSM providers list)
  • Events on I/O detection and sending via GPRS or SMS.
  • Scheduled 24 coordinates SMS sending
  • 5 geofence zones (rectangular or circle)
  • Deep Sleep mode (saving vehicle’s accumulator)
  • FOTA (firmware updating via GPRS)
  • Motion sensor
  • Small and easy to mount case
  • Roaming dependant operation (GPRS traffic saving in roaming zones)
  • Operation mode presets:
    • Advanced overspeeding detection
    • Driver identification (1-Wire® iButton ID key)

Reference : FM1100
